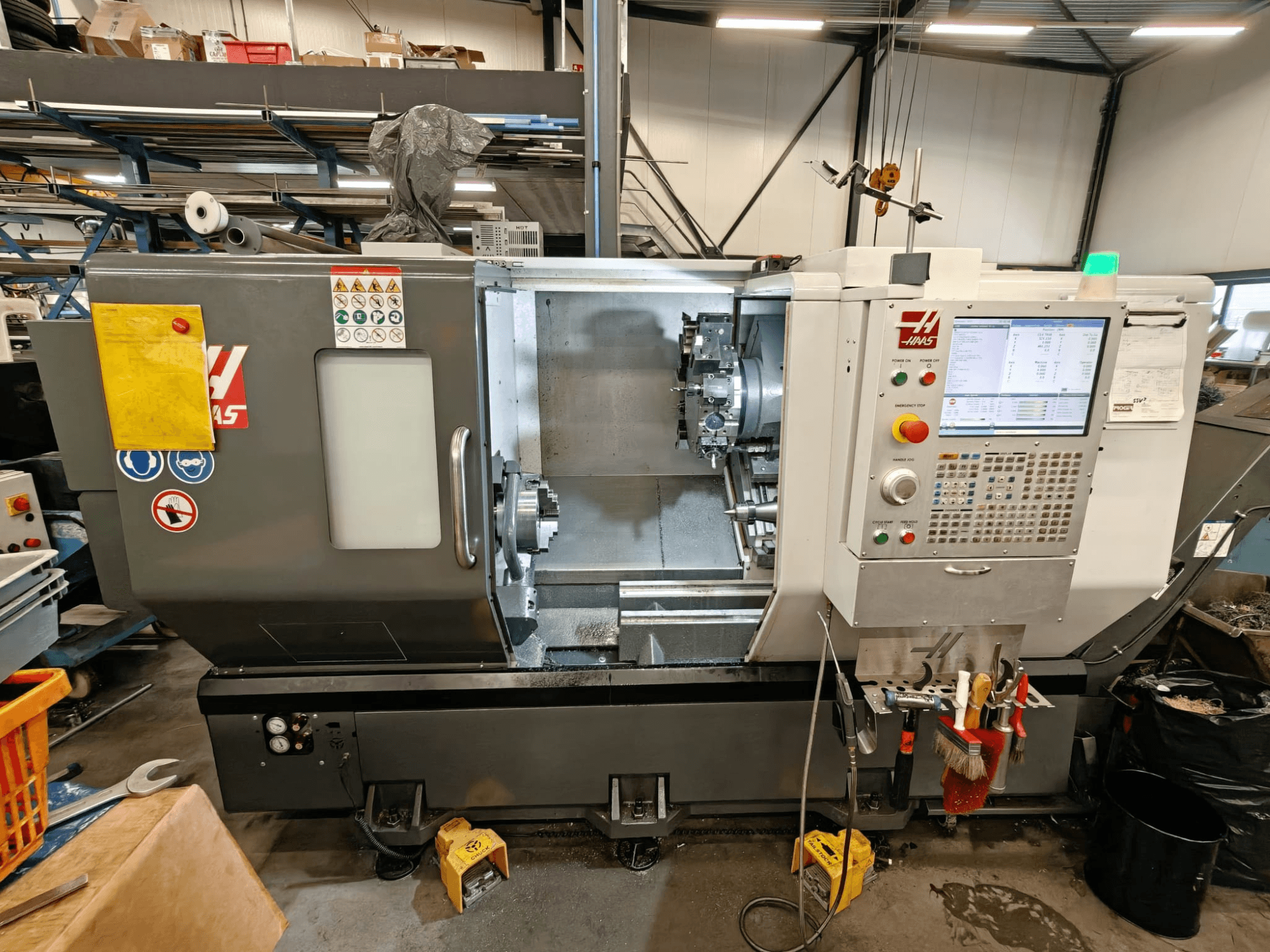

This 4-axis HAAS ST-25Y was manufactured in 2019. It features a maximum spindle speed of 3,400 rpm and a chuck size of 254 mm. The machine can work with driven tools and has a maximum cutter diameter of 298 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-25Y horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2019
- MODEL: ST-25Y
- production hours: 1652
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 31/07/2026
- control unit brand:
Technical Information - HAAS ST-25Y
Movement
- Number of Axes: 4
- X-axis Travel: 213 mm
- Y-axis Travel: 102 mm
- Z-axis Travel: 572 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 3400 RPM
Additional Information
Machine can work with driven tools
Chuck size: 254 mm
Max. piece swinger: 533 mm
Maximum cutter diameter (with BMT65 turret): 298 mm
Maximum milling length (varies per workpiece fixture): 572 mm
Rod capacity: 76 mm
Movements (metric):
X-axis: 213 mm
Y-axis: ±51 mm
Z-axis: 572 mm
Additional equipment
Tools not included (can be bought for an additional amount)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
