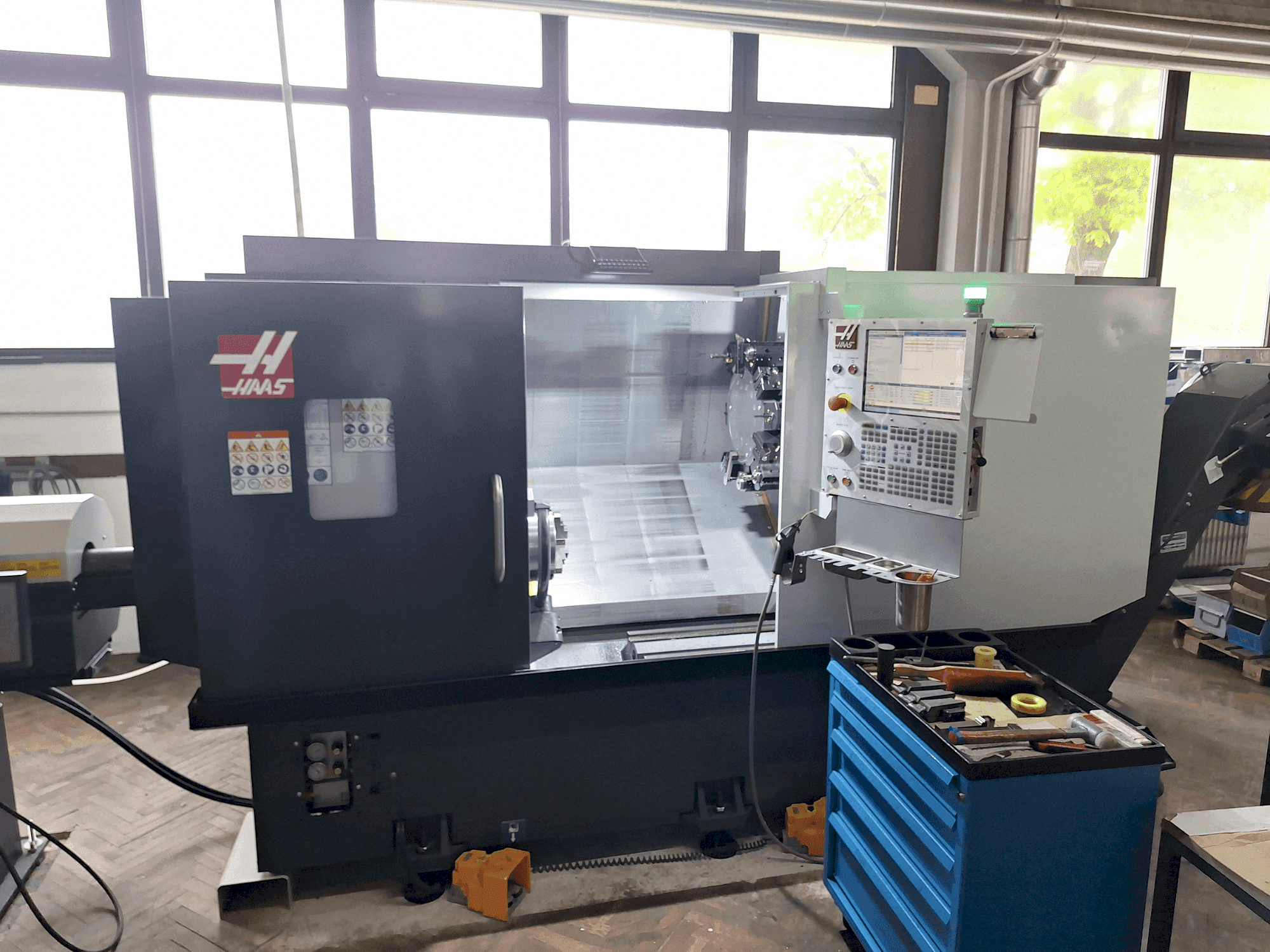

Front view of HAAS ST 30Y  machine

HAAS - ST 30YSI-TUR-HAA-2022-00001

119,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-Axis HAAS ST 30Y lathe was manufactured in 2022. It features a spindle speed of up to 3400 rpm and a maximum torque of 407.0 Nm at 500 rpm. The sub-spindle supports a maximum speed of 4100 rpm with a chuck size of 165 mm. The turret accommodates 12 tool stations, and the machine has a coolant capacity of 208 liters. For those interested in the HAAS ST 30Y lathe we have for sale, reach out for further details regarding this lathe.

Overview

  • brand: HAAS
  • year: 2022
  • MODEL: ST 30Y
  • application type: Turning
  • Location: Slovenia
  • machine type: Lathe
  • availability: Immediately

Technical Information - HAAS ST 30Y

Main drive

  • Number of spindles: 3
  • Spindle speed range: 3400 rpm // 60 rpm // 4100 rpm 1/MIN
  • Spindle motor power: 22.4 kW 30.0 hp
  • Spindle bore: ø 88.9 mm 3.50 in
  • Tool taper: SK 40
  • Number of axis: 3

Movement

  • X-AXIS Rapid traverse: 12 m/min 406 ipm
  • Y-AXIS Rapid traverse: 12 m/min 406 ipm
  • Z-AXIS Rapid traverse: 24 m/min 945 ipm

Turret

  • Number of turrets: 1

Tools

  • Number of stations: 12 Stations

Media

  • Air pressure: 5.5 bar 80 psi

    Additional Equipment

    • - Bar Loader
    • - Coolant Capacity: 208 L 55 gal

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max thrust x: 18238 n 4100 lbf // max thrust y: 10231 n 2300 lbf // max thrust z: 22686 n 5100 lbf
        • - Spindle max rating: 22. 4 kw 30. 0 hp // spindle max torque: 407. 0 nm @ 500 rpm 300. 0 ft-lbf @ 500 rpm // spindle max torque w/opt gearbox: 1356 nm @ 150 rpm 1000 ft-lbf @ 150 rpm
        • - Main spindle c axis max rating: 3. 7 kw 5. 0 hp // main spindle c axis positioning (±): 0. 01 ° // main spindle c axis brake diameter: 353 mm 13. 9 in // main spindle c axis brake holding torque: 339 nm 250 ft-lbf
        • - Turret od vs id tools: any combination (will vary with turret) // turret boring bar rear clearance (from back of turret): 102. 0 mm 4. 00 in
        • - Live tooling max speed: 4000 rpm // live tooling tooling: bmt65
        • - Air required: 113 l/min @ 6. 9 bar 4 scfm @ 100 psi // inline air hose: 3/8 in
        • - Coupler (air): 3/8 in
        • - Drive system: direct speed, belt drive
        • - Input ac voltage (3 phase) - low: 220 vac // full load amps (3 phase) - low: 70 a // input ac voltage (3 phase) - high: 440 vac // full load amps (3 phase) - high: 35 a

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
