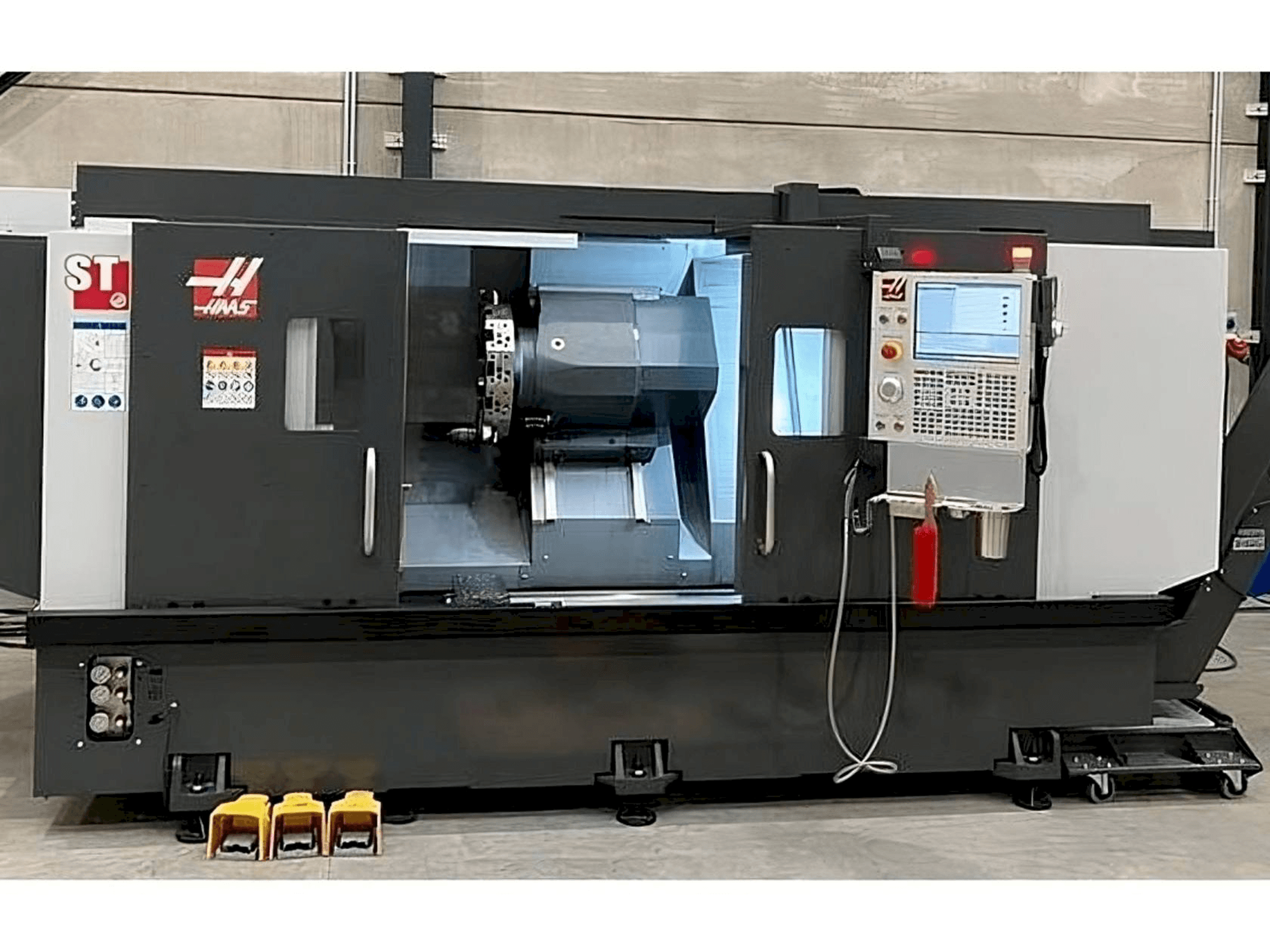

Front view of HAAS ST-35L  machine

HAAS ST-35L

HAAS - ST-35L

2021

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS ST-35L Lathe was built in 2021 in the United States and has low hours. It is equipped with a Haas control unit. The machine has a spindle speed of 3200 rpm.

Overview

  • brand: HAAS
  • year: 2021
  • MODEL: ST-35L
  • application type: Turning
  • Location: Belgium
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Haas
  • GINDUMAC ID: BE-TUR-HAA-2021-00002

Technical Information

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 3200 1/MIN
  • Spindle motor power: 29,8 kw

Movement

  • X-AXIS Movement: 239 mm
  • X-AXIS Rapid traverse: 24,0 m/min
  • Z-AXIS Movement: 1588 mm
  • Z-AXIS Rapid traverse: 24,0 m/min

Tools

  • Number of stations: 12

    Additional Equipment

    • - Comes with a nice set of tooling

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Chuck size: 305 mm
        • - Max part swing: 533 mm
        • - Max cutting diameter (with bot turret): 406 mm
        • - Max cutting diameter (with bmt65 turret): 349 mm
        • - Max cutting length (varies with workholding): 1588 mm
        • - Bar capacity: 102 mm
        • - Between centers: 1588 mm
        • - Axis motors: max thrust x 18238 n, max thrust z 22686 n
        • - Spindle nose: a2-8
        • - Max torque: 576,0 nm @ 325 rpm
      • Qualitative Machine Benefits:
        • - Max torque w/opt gearbox: 1898 nm @ 150 rpm
        • - Boring bar rear clearance (from back of turret ): 102 mm
        • - Coolant capacity: 208l
        • - Can be inspected under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
