HAAS ST-45

HAAS - ST-45GB-TUR-HAA-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

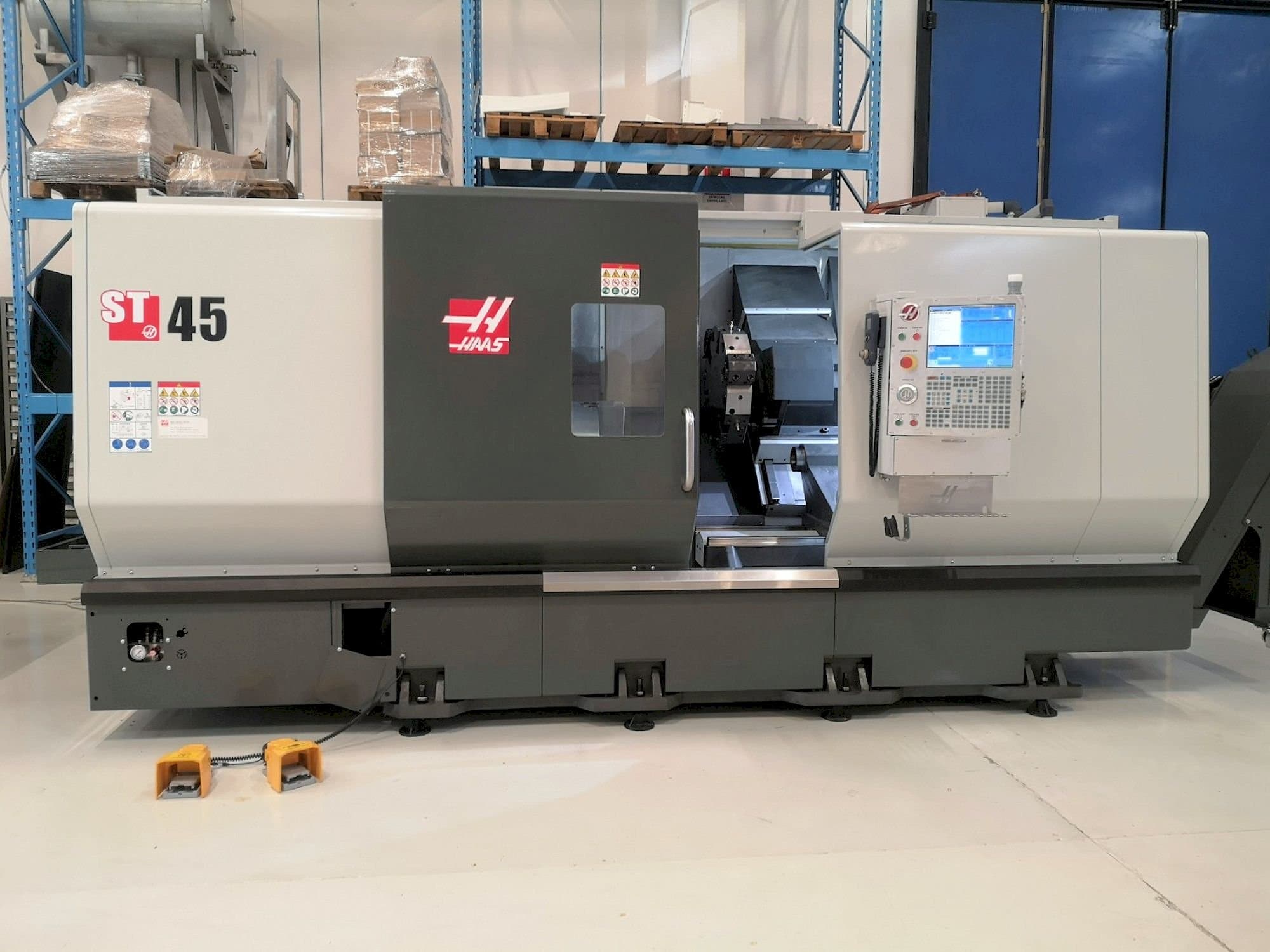

This HAAS ST-45 Lathe was manufactured in the United States in the year 2018. It is operated through a control unit of the same brand. This 3 axis machine can work with a spindle speed up to 1400 rpm and a cutting length 1118 mm. It is in very good condition.

Overview

brand: HAAS
year: 2018
MODEL: ST-45
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-45

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2390 mm
Machine Height: 2670 mm
Machine Weight: 11749 kg

Movement

Number of Axes: 3
X-axis Travel: 432 mm
Z-axis Travel: 1118 mm

Technical Specification

Spindle Power: 29.42 kW
Spindle Speed: 1400 RPM
Tool Stations: 12

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 876 mm
Swing over cross-slide 648 mm
Maximum cutting length 1118 mm
Bar capacity 165 mm
Milling rpm 4000, c axis 0. 01 degrees
Spindle nose a2-11
Tailstock taper mt #5
3 jaw chuck , coolant, tailstock, swarf conveyor, tooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
