HAAS - UMC 500CZ-MIL-HAA-2021-00001

Name: HAAS UMC 500
Brand: HAAS
SKU: CZ-MIL-HAA-2021-00001
Price: 90000 EUR
Availability: InStock

90,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS UMC 500 For Sale | gindumac.com

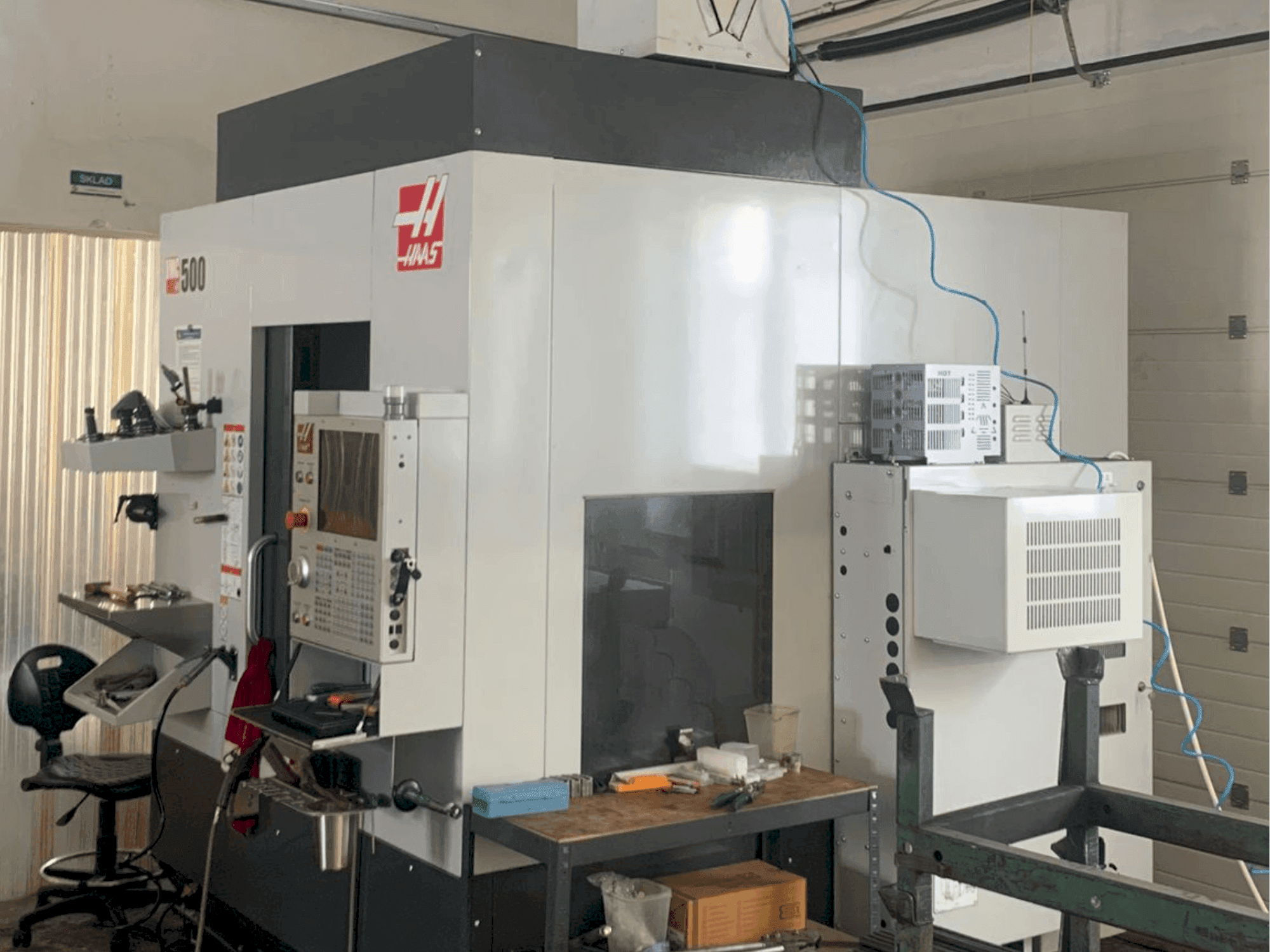

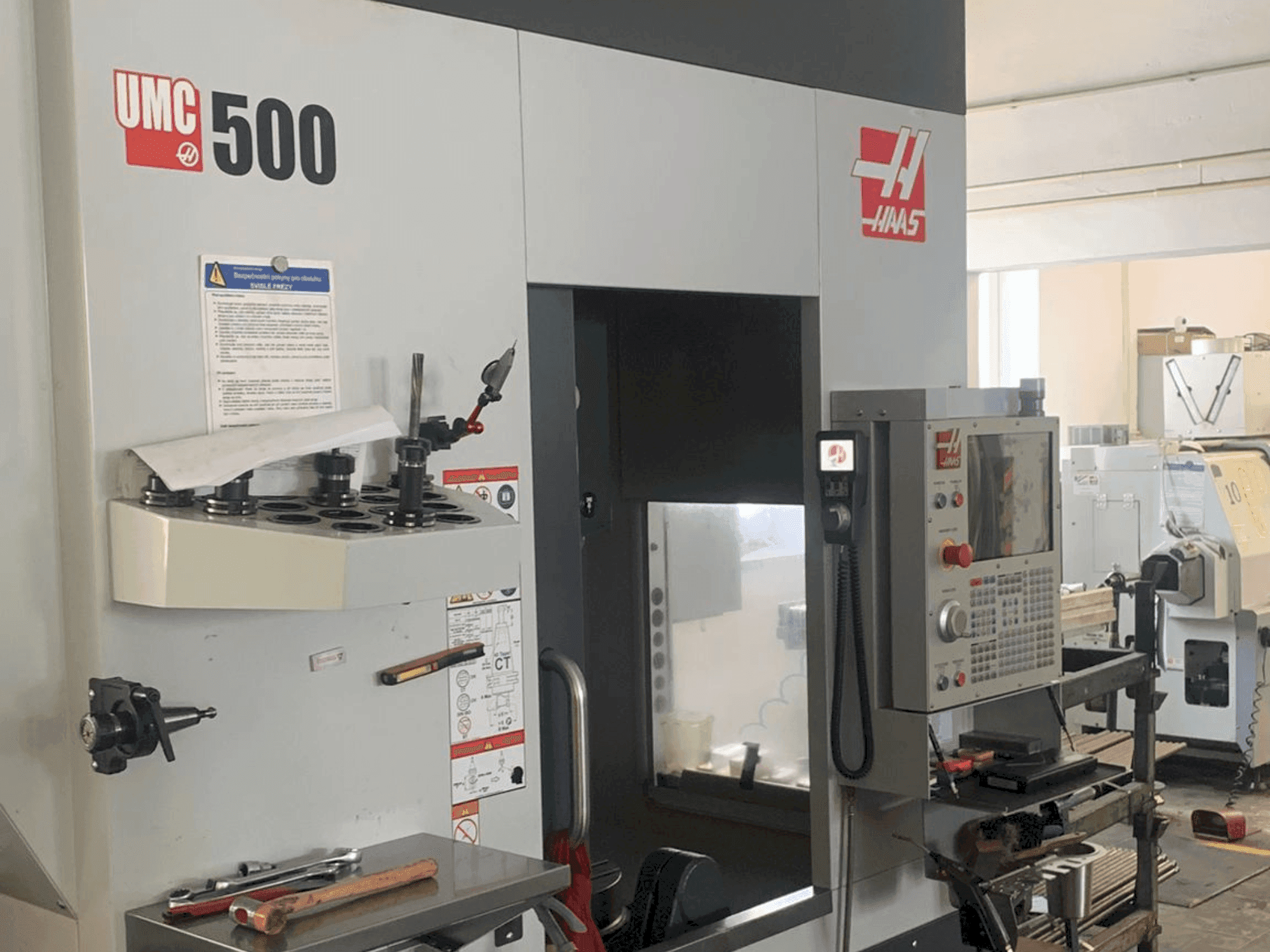

This 5-axis HAAS UMC 500 was manufactured in 2021, featuring a 610x406x406 mm working travel and a ø400 mm table that can handle up to 226 kg. It includes a B-axis tilting at -35°/+120° and a full 360° C-axis rotation. The spindle reaches speeds up to 10,000 rpm with a power of 22.4 kW. Extras include a Renishaw probe set, chip conveyor, and additional cooling unit. If you are looking to get high-quality milling capabilities consider the HAAS UMC 500 machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2021
MODEL: UMC 500
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre

Technical Information - HAAS UMC 500

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 22.4 kW
Tool taper: ISO40
Number of axis: 5

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 406 mm

Additional Information

Additional equipment

Set of tool holders
Renishaw probe set
Chip conveyor
High speed machining
TSC-ready
Programmable cooling nozzle
Additional air conditioning unit for cooling the electrical cabinet

Machine Benefits

Technical Machine Benefits

Dimensions of the work table: ø400 mm
Number/dimension/spacing of t-slots: 5 / 16mm / 125 mm
High speed machining
Tsc-ready
Programmable cooling nozzle

Extra Information

Tilting axis of the rotary table B: -35°/+120° Rotary axis C of the rotary table: 360° Distance spindle face / table surface: 102-508 mm Max. spindle torque: 122 Nm Rapid traverse X,Y,Z axes: 22.9 m/min Max. working feed: 16.5 m/min Max. rapid traverse B/C axes: 50°/sec Torque B / C: 2,514 / 2,514 Nm Locking torque B / C: 1,220 / 1,220 Nm Coolant tank: 208 liters with pump Electrical connection: 3x400V/50HZ, 28kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
