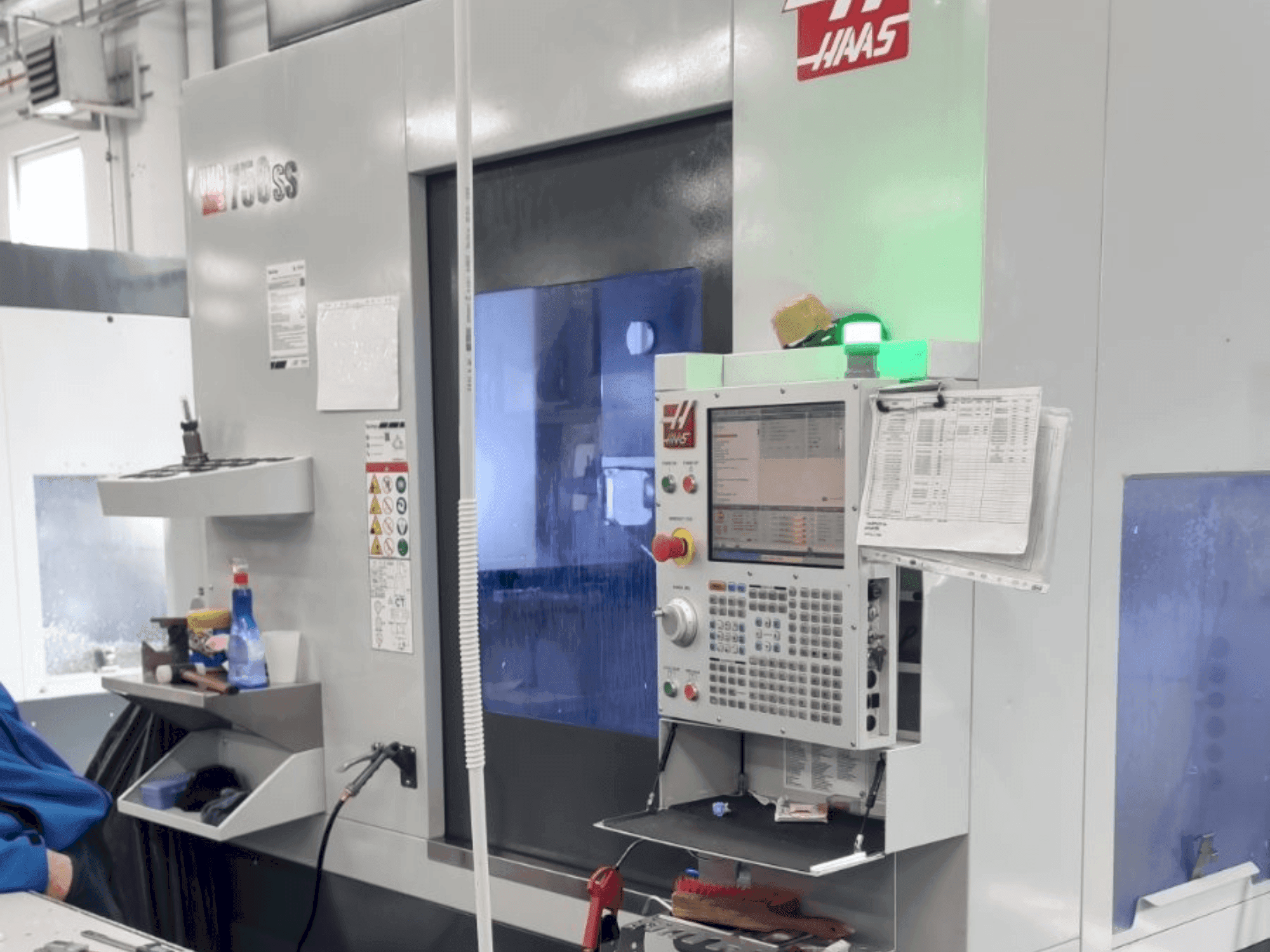

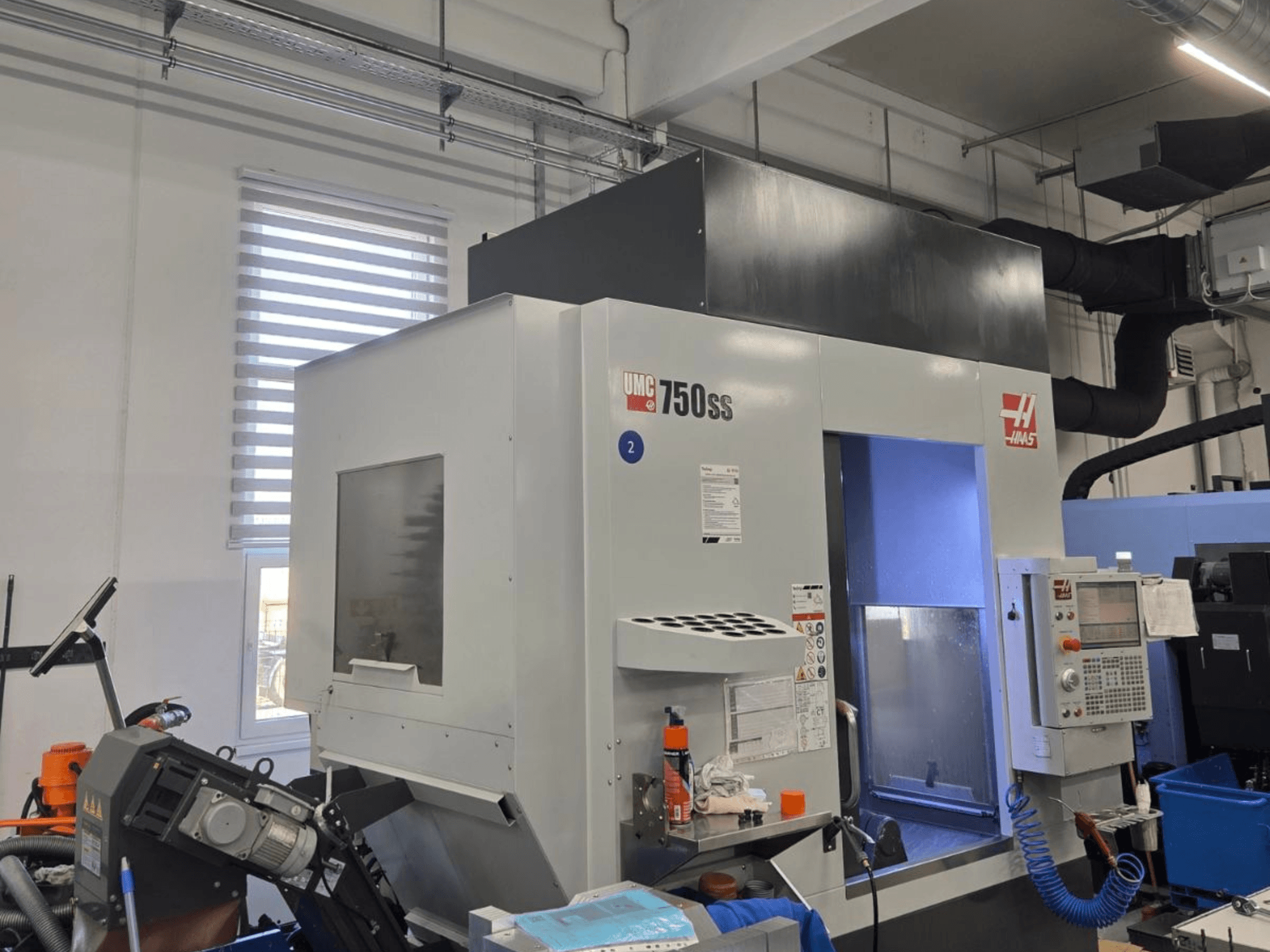

This 5-axis HAAS UMC-750SS vertical machining centre was manufactured in 2021. It features a 22.4 kW vector drive spindle motor with a 12,000 rpm spindle speed, a 30+1 tool side-mount tool changer and comes equipped with a wireless intuitive probing system (WIPS). Consider the opportunity to buy this HAAS UMC-750SS vertical machining centre. For more information about this machine, please reach out to us.
Overview
- brand: HAAS
- year: 2021
- MODEL: UMC-750SS
- application type: Milling
- Location: Bosnia and Herzegovina
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HAAS
Technical Information - HAAS UMC-750SS
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 22.4 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 508 mm
Additional Equipment
- - Coolant tank – 208 liters with mobile cart
- - Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL)
- - Safe Run – crash and overload detection system
- - Control cabinet surge protection
- - Voltage fault detection module (EPFDM)
- - Second Home Position button
- - Remote Jog Handle with 2m cable (RJH-XL)
- - Memory lock key-switch
- - Rotary axis scales
- - Top cover
Additional Information
- Technical Machine Benefits:
- - 30+1 tool side-mount tool changer
- - Wireless intuitive probing system (wips)
- - Broken tool detection (btd)
- - Media display via M130 (images, videos, PDF on screen) Standard machine memory: 1 GB Control Unit 15" color LCD monitor with USB port Touchscreen control interface Ethernet interface HaasConnect remote monitoring HaasDrop wireless file transfer WiFi connectivity Controller High-speed machining (HSM) Rigid tapping Dynamic Work Offsets / Tool Center Point Control (DWO/TCPC) Macro programming, coordinate rotation & scaling
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
