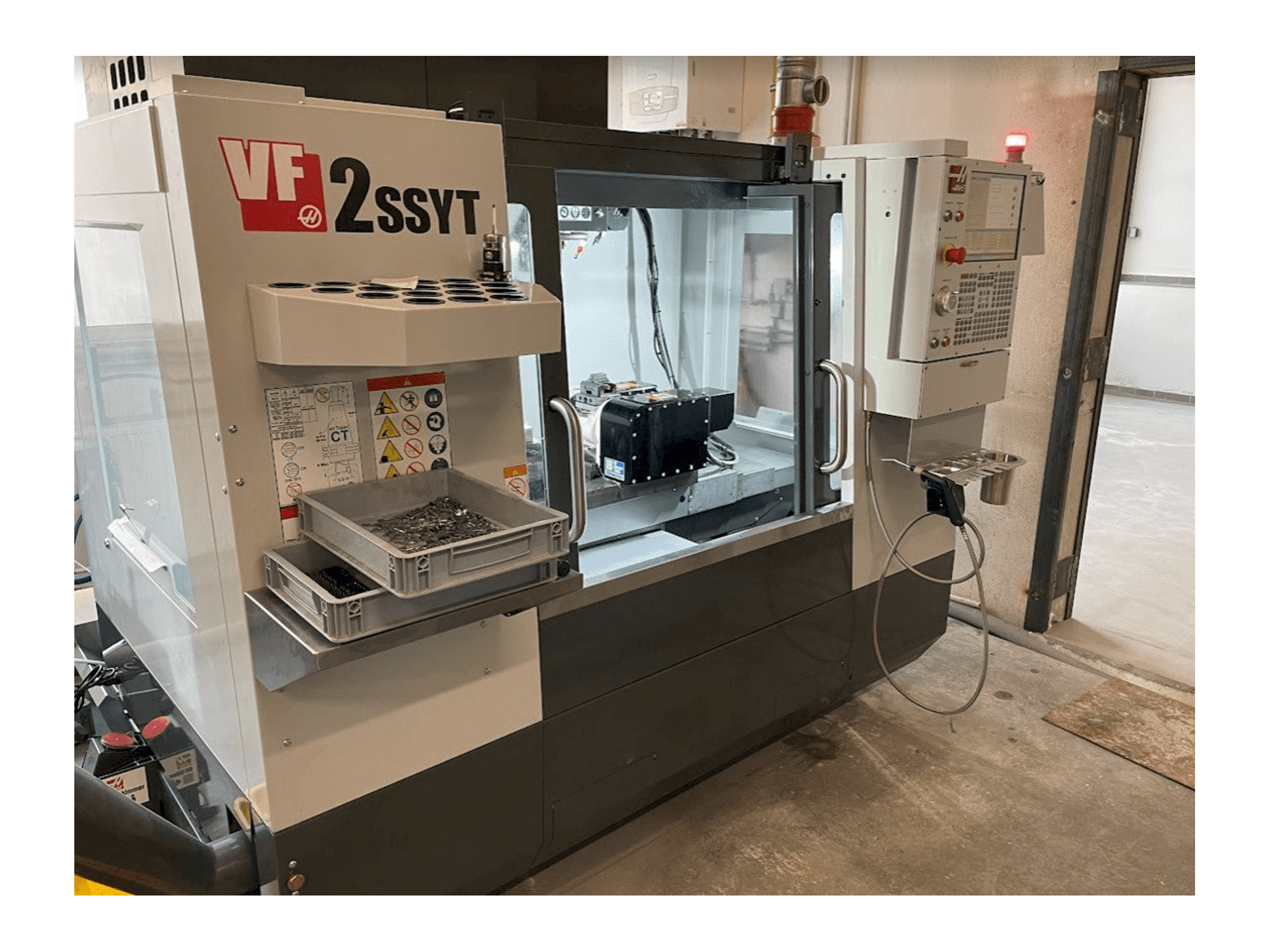

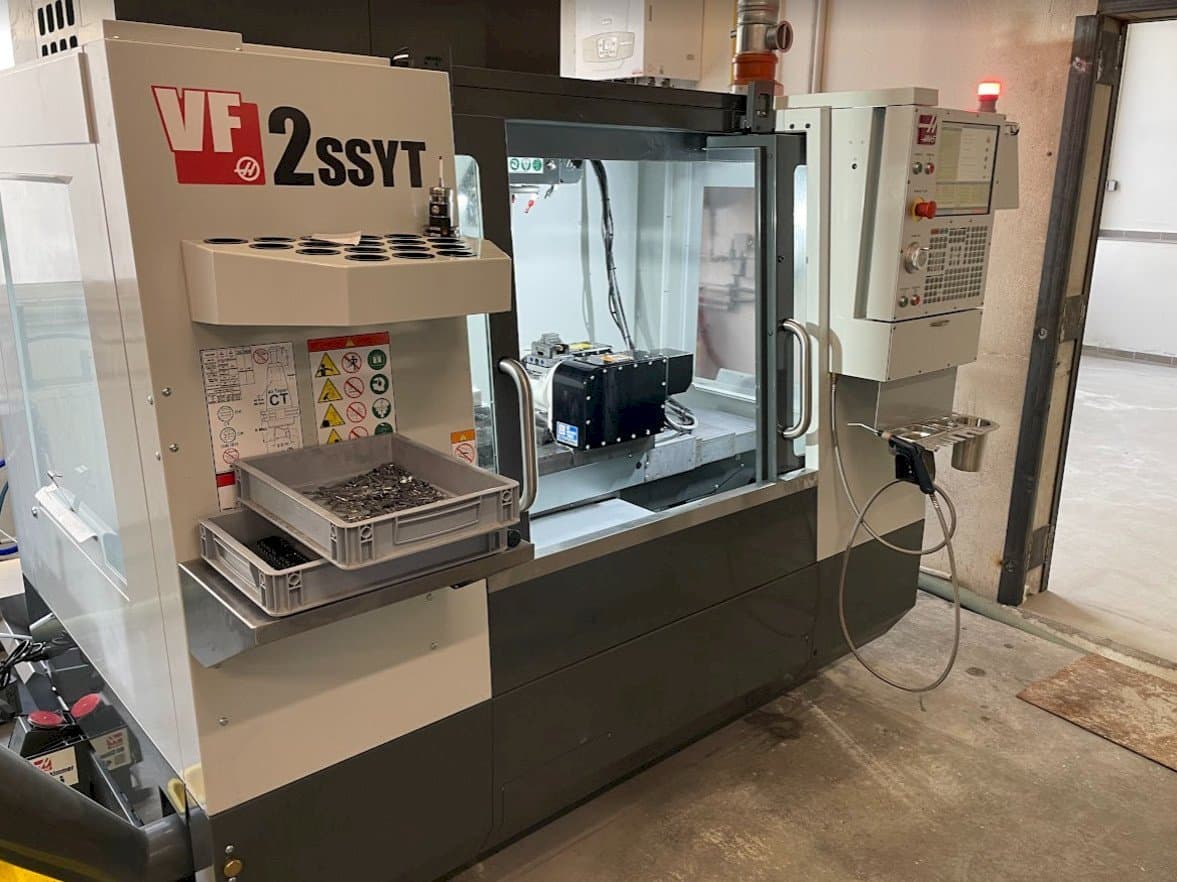

HAAS VF-2SSYT vertical machine center

This HAAS VF-2SSYT vertical machine center was made in the year 2022 in the United States. It is controlled by a Haas control unit and has 5 axis controlled. The machine has a spindle speed of 12000 rpm and is in top condition.

Overview

brand: HAAS
year: 2022
MODEL: VF-2SSYT
application type: Milling
Location: United Kingdom
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Haas
GINDUMAC ID: GB-MIL-HAA-2022-00001

Technical Information

General Data

Measurements width: 2789 mm
Measurements depth: 2357 mm
Measurements height: 2654 mm
Machine weight: 3600 kg

Control Unit

Brand: Haas

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 29.8 kW
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 680 kg

Table

Outer length: 915 mm
Outer width: 457 mm

Tools

Slots in storage: 24
Max weight: 5,4 kg
Max tool diameter: 127 mm
Max tool length: 330 mm
Type of tool holder: DIN 40/BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis controlled, 5 axis table kitagawa
- - Min-max height under spindle 915 - 457 mm
- - Rapid feedrates 35. 6 m/minute
- - Tool setter, spindle probe
- - Programmable coolant nozzle
- - Through spindle coolant
- - Usb port
- - Coolant
- - Swarf auger
Qualitative Machine Benefits:
- - Top condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
