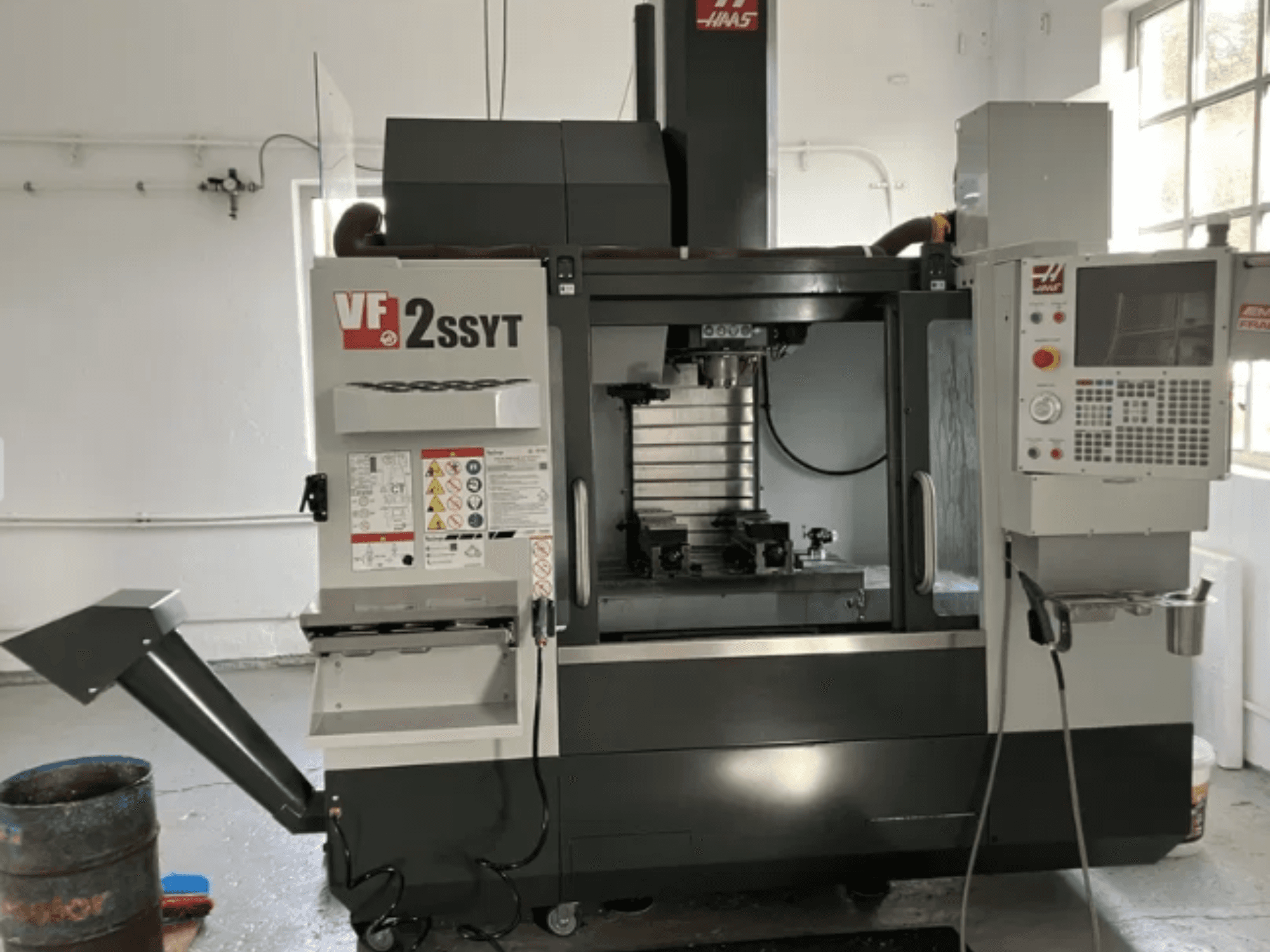

This 3s HAAS VF-2SSYT CNC Vertical Machining Center manufactured in 2024 features a maximum spindle speed of 12,000 rpm and a robust tool changer with a capacity of 30+1 tools. The machine has been lightly used and is in excellent condition, offering travels of 762 mm in the X-axis and 508 mm in both Y and Z axes. Consider the opportunity to buy this HAAS VF-2SSYT vertical machining center. Contact us for further details.
Overview
- brand: HAAS
- year: 2024
- MODEL: VF-2SSYT
- application type: Milling
- Location: Romania
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-2SSYT
Dimensions
- Table Load: 680 kg
Movement
- Number of Axes: 3
- X-axis Travel: 762 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Spindle nose to table (max/min): 610 / 102 mm
Table:
Size: 914 x 457 mm
T-slots: 3
T-slot width: 15.9–16 mm
T-slot center distance: 125 mm
Spindle:
Max torque: 122 Nm @ 2000 rpm
Drive: Inline Direct-Drive
Taper: CT40 / BT40 / HSK-A63 (depending on configuration)
Bearing lubrication: Air/Oil injection
Tool changer:
Type: SMTC
Capacity: 30+1 tools
Max tool diameter: 64 mm (127 mm with adjacent pocket empty)
Max tool length: 279 mm
Tool-to-tool: 1.8 s
Chip-to-chip: 2.4 s
Feedrates:
Max cutting feed: 21.2 m/min
Rapids (X/Y/Z): 35.6 / 35.6 / 35.6 m/min
Axis motors (thrust):
X: 8,874 N
Y: 8,874 N
Z: 13,723 N
Electrical:
Input voltage (low): 220 VAC, 70 A full load
Input voltage (high): 440 VAC, 35 A full load
Coolant: Capacity 208 L
Air requirements:
Air required: 113 L/min @ 6.9 bar
Minimum pressure: 5.5 bar
4th-axis ready
Additional equipment
Mist/vapor extraction system
Automatic water and oil dosing system for coolant
Integrated coolant oil separator
Renishaw probe system
2 vises
Complete set of high-quality toolholders, end mills, and drills
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
