HAAS - VF-4SSIL-MIL-HAA-2005-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-4SS Vertical Machining Center

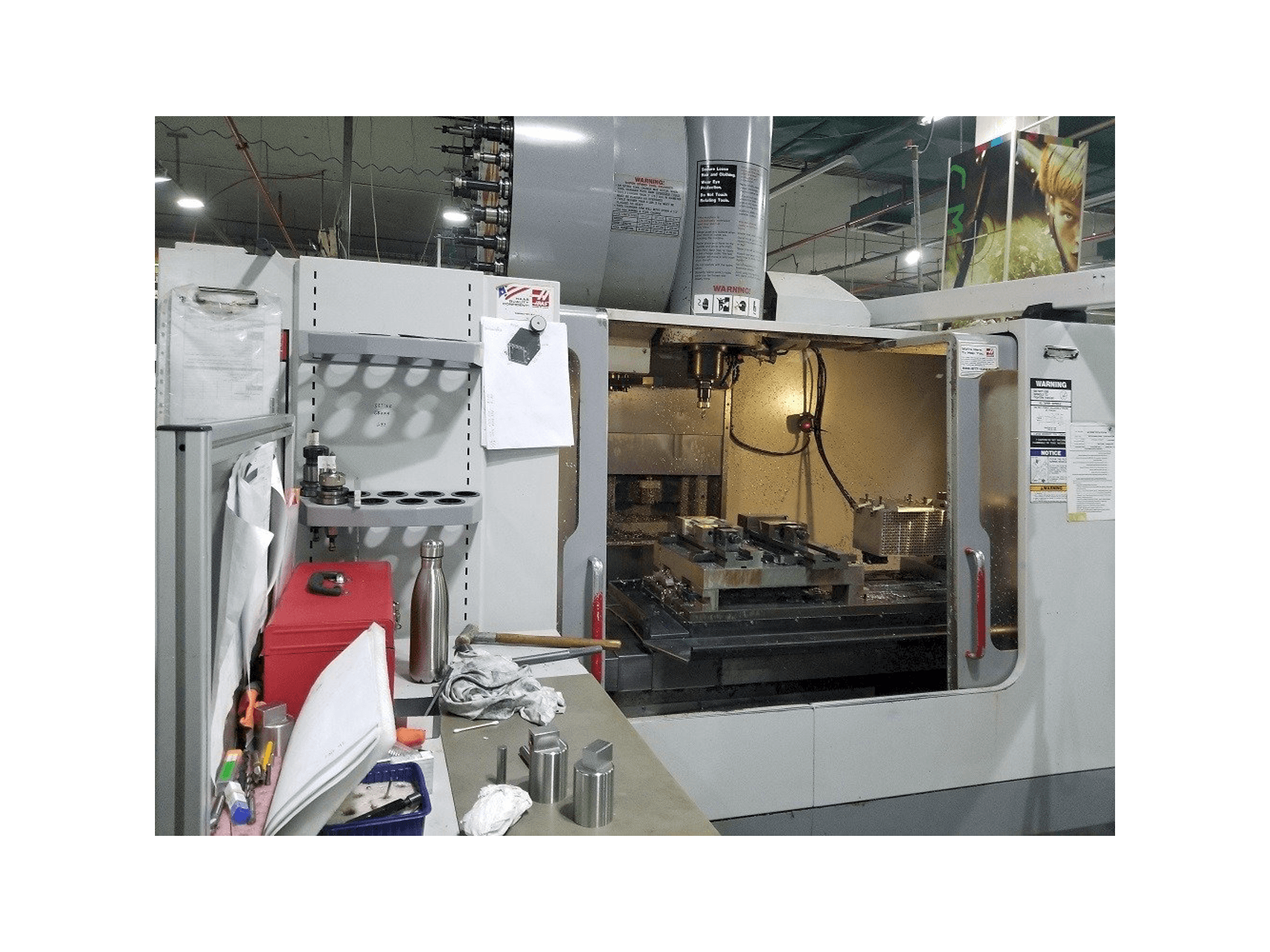

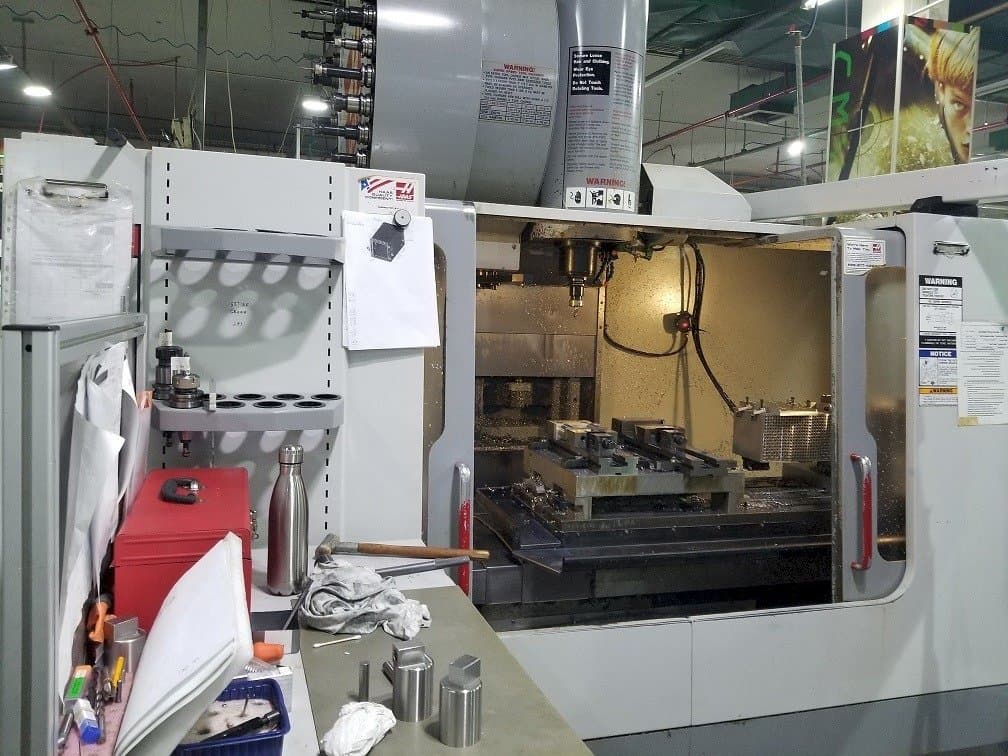

This HAAS VF-4SS Vertical Machining Center was manufactured in the year 2005 in United States. It is equipped with a control unit of the same brand. This 4 axis machine can work with a spindle speed up to 12000 rpm.
Overview
- brand: HAAS
- year: 2005
- MODEL: VF-4SS
- application type: Milling
- Location: Israel
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-4SS
General Data
- Machine weight: 6033 kg
Control Unit
- Model: CNC
- Brand: HAAS
Main drive
- Spindle speed range: 12000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 1270 mm
- X-AXIS Rapid traverse: 35,5 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Rapid traverse: 35,5 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Rapid traverse: 35,5 m/min
Table
- Outer length: 1320 mm
- Outer width: 457 mm
- Table load: 794 kg
Tools
- Number of stations: Capacity 40+1 BT40
- Max tool diameter: 76 mm
Additional Information
- Technical Machine Benefits:
- - Drive system inline direct drive
- - Max. Rating 30 hp
- - Max. Torque 90 ft-lb@ 2000 rpm
- - Brushless axis motor: (max. Thrust)
- - X & y axis 1400 kg, z-axis 1780 kg
- - Max. Cutting: 21,15 m/min
- - Too changer: tool to tool 1. 6 sec chip to chip 2. 2 sec
- - 40 position side mount automatic tool changer
- - High speed machining, 4th axis rotary table
- - Rotation & scaling, spindle orientation, rigid tapping
- Qualitative Machine Benefits:
- - Early power fault detection
- - Cool programable coolant nozzle
- - Macros
- - Visual quick code
- - Remote jog handle
- - Chip auger
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
