HAITIAN - HTF 450xPL-INJ-HAI-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Used Haitian HTF 450x For sale | gindumac.com

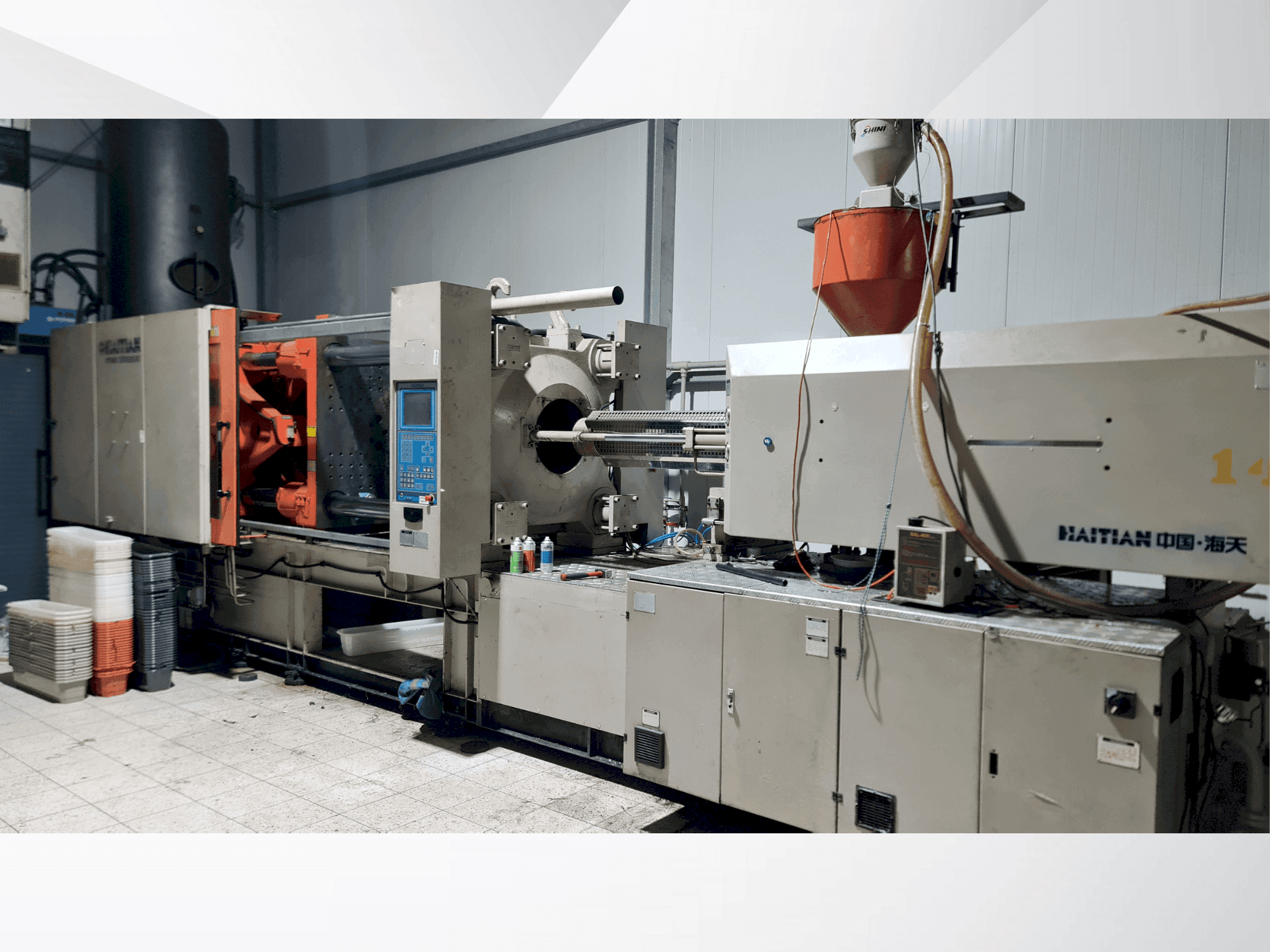

This Haitian HTF 450x was manufactured in 2006. It features a robust clamping force of 4500 kN and a screw diameter of 80 mm, capable of an injectable volume of 1860 cm³. The machine offers a mold opening stroke of 740 mm and operates with a pump motor power of 45 kW, ensuring efficient production cycles. Ideal for precision injection moulding, the Haitian HTF 450x machine we have for sale is designed for high performance. Contact us for more information.
Overview
- brand: HAITIAN
- year: 2006
- MODEL: HTF 450x
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - HAITIAN HTF 450x
General Data
- Measurements width: 2300 cm MM
- Measurements depth: 8200 cm MM
- Measurements height: 3200 cm MM
- Machine weight: 19000 kg
Injection Unit
- Screw diameter: 80 mm
- Shot weight: 1693 g
- Stroke volume: 1860 cm³
- Injection pressure: 156 MPa BAR
- Screw speed: 0-160 r/min
- Heating capacity: 23.85 kW
Clamping unit
- Clamping force: 4500 kN
- Opening stroke: Mold Opening Stroke: 740 mm
- Max open daylight: 1520 mm
- Distance between bars: 780 x 780 mm
- Mould height min: 330 mm
- Mould height max: 780 mm
- Ejector stroke: 200 mm
- Ejector force for / back: 110 kN
Media
- Pump drive power: 45 kW
Additional Information
- Qualitative Machine Benefits:
- - Technical machine benefits: high injection pressure and screw speed, robust clamping force.
- - Qualitative machine benefits: adjustable die-height, substantial mold opening stroke.
- - machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
