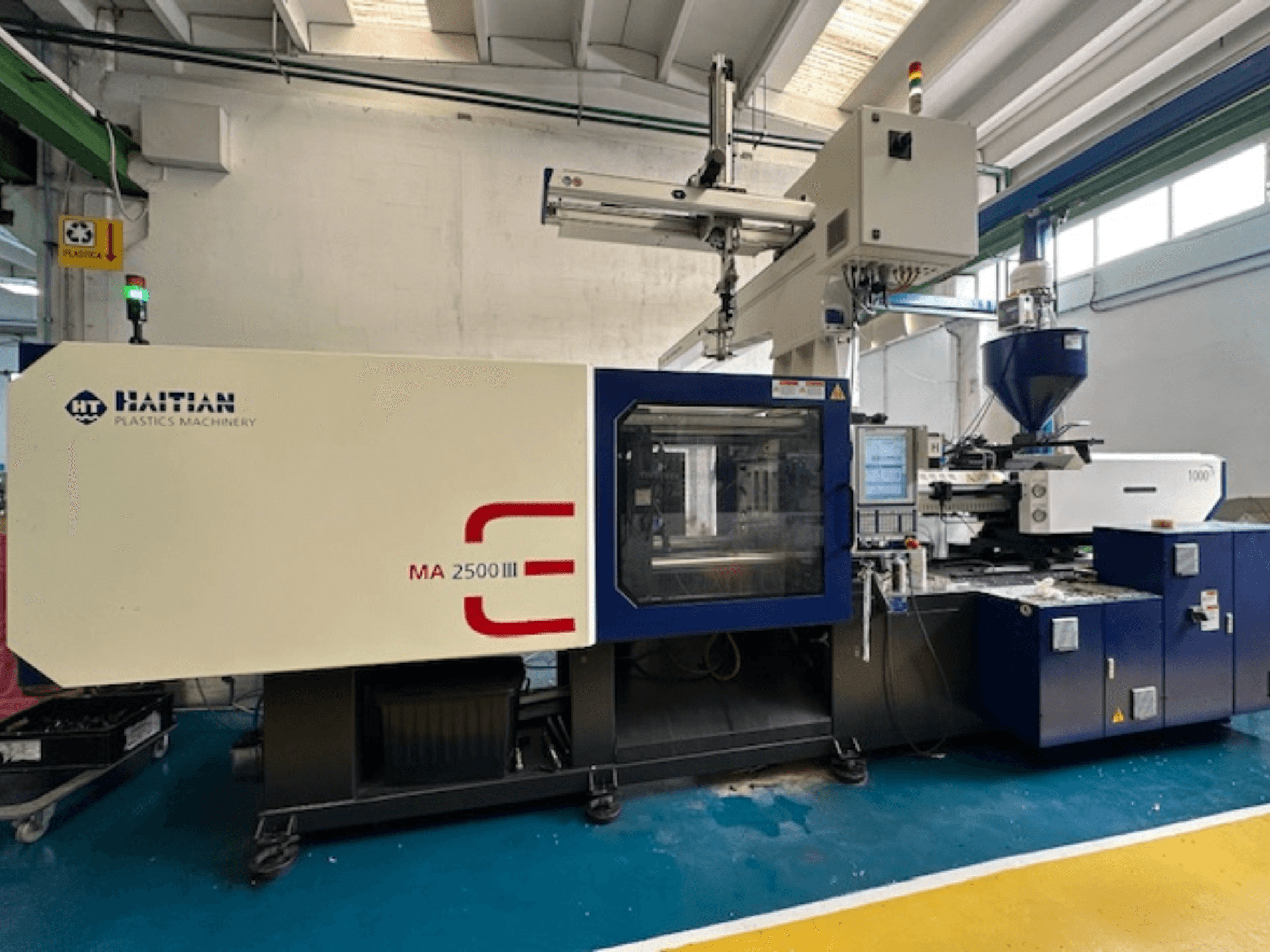

Haitian MA 2500 III hydraulic injection moulding machine, front view showcasing control panel and hopper.
Haitian MA 2500 III hydraulic injection moulding machine, front view showcasing control panel and hopper.

HAITIAN - MA 2500 III IT-INJ-HAI-2023-00001

112,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Hydraulic injection moulding machine manufactured in 2023. This HAITIAN MA 2500 III features a clamping force of 250 tons and a platen size of 850 x 850 mm. The machine includes an impressive injection pressure of 1850 bar and a screw diameter of 55 mm. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN MA 2500 III machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: HAITIAN
  • year: 2023
  • MODEL: MA 2500 III
  • application type: Injection Moulding
  • Location: Italy
  • machine type: Hydraulic Injection Moulding Machine
  • control unit brand:

Technical Information - HAITIAN MA 2500 III

Dimensions

  • Machine Weight: 8400 kg

Technical Specification

  • Clamping Force: 2500 kN
  • Screw Diameter: 55 mm

Additional Information

  • Clamping unit

    • Opening force: 165 kN

    • Platen size: 850 x 850 mm

    • Opening stroke: 540 mm

    • Tie bar distance: 580 x 580 mm

    • Max mould height: 580 mm

    • Min mould height: 220 mm

    • Ejector stroke: 150 mm

    • Ejector force: 62 kN

    • Min mould dimensions: 410 x 410 mm

  • Injection unit

    • Euromap classification: 1000

    • L/D ratio: 20

    • Shot volume: 570 cm³

    • Effective injection volume: 519 g

    • Injection rate: 281 g/s

    • Plasticizing capacity: 47.7 g/s

    • Injection pressure: 1850 bar

    • Screw speed: 180 rpm

    • Screw stroke: 240 mm

    • Carriage force: 99 kN

    • Pump motor power: 37 kW

    • Heater power: 21.45 kW

    • Oil tank capacity: 340 L

  • Dimensions

    • Machine size: 6.19 x 1.60 x 2.42 m

  • Control

    • Controller: KEBA 2985 – CP053

    • Features:

      • 15” colour touchscreen

      • Euromap 67 robot interface

      • USB memory

      • 200 mould memory

      • Cycle history

      • Alarm tower

      • RFID login/password

      • Multilanguage interface

      • Process graphs

      • Maintenance pages

      • Metric / imperial selectable

  • Included options / extras (machine-integrated)

    • Bimetallic screw + barrel

    • Masterbatch dosing interface

    • Hydraulic radial extraction

    • Festo air blow system

    • 12-zone PSG central lubrication

    • 4-way flowmeter

    • Robot interface

    • Included screw H 3 zones

    • CE certified work cell

Additional equipment

  • Robot included: HILECTRO V-1300ID Cartesian Robot (2023)

    • Type: 3-axis servo Cartesian robot

    • Suitable for: 380T to 530T presses

    • Travels: X 2000 mm / Y 880 mm / Z 1300 mm

    • Max extractable weight: 12 kg

    • Power: 400 VAC / 50-60 Hz

    • Precision: 0.1 mm

    • Robot weight: 530 kg

    • Included: Touchscreen controller, USB programs, pneumatic gripper, vacuum cups, conveyor ready

  • Peripherals included: FORMAX E3 Monofase Hopper Loader (2 units)

    • Hopper capacity: 3.0 L

    • Power: 1150 W

    • Inlet diameter: 40 mm

    • Capacity: 70 kg/h

    • Voltage: 230 V

    • Weight: 13 kg each


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
