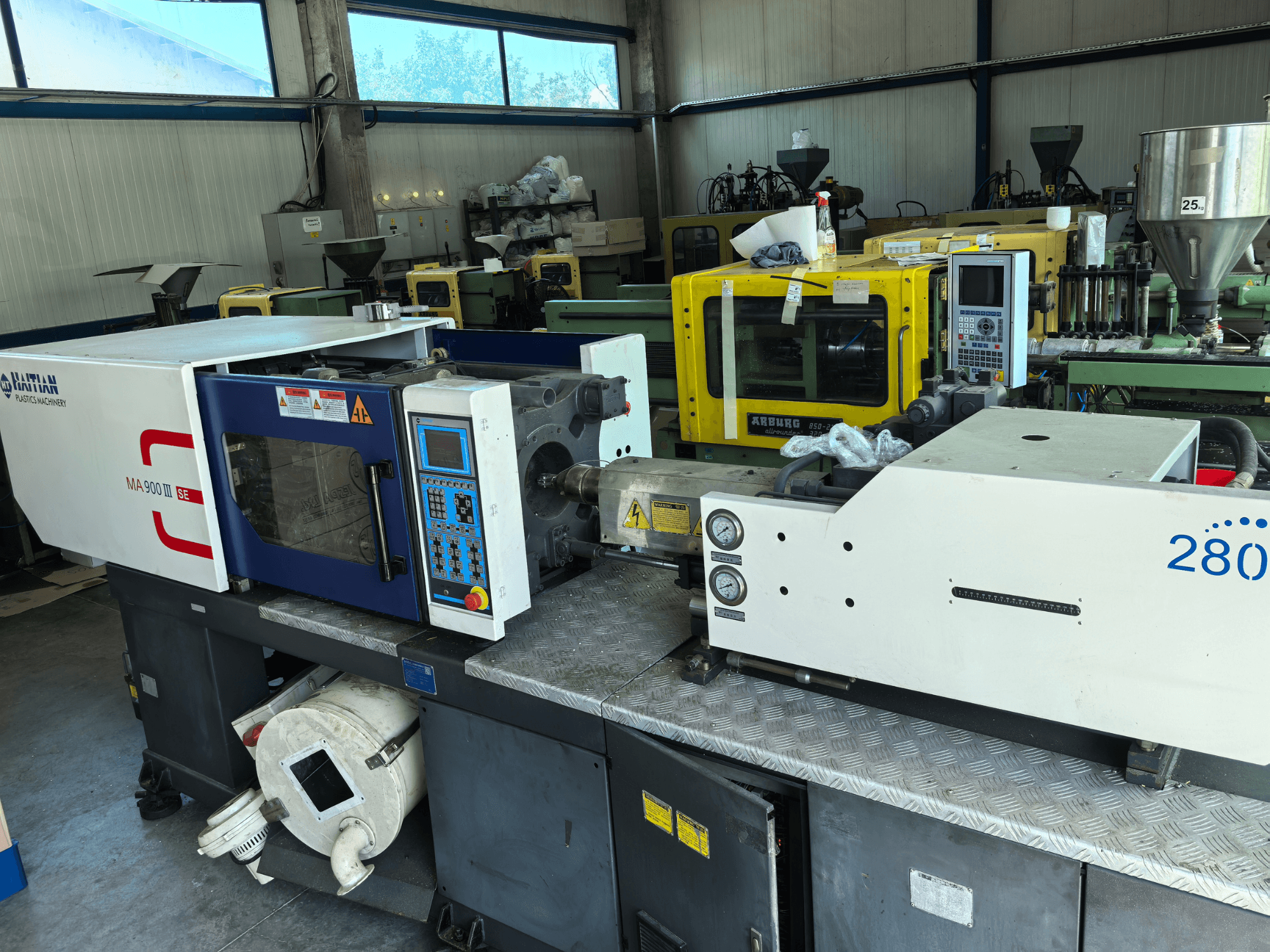

HAITIAN - MA900ІІ BG-INJ-HAI-2023-00001

Injection Unit

• Screw L/D ratio: 20:1

• Theoretical shot volume: 153 cm³

• Injection weight (PS): 139 g

• Injection rate (PS): 108 g/s

• Injection pressure: 196 MPa

• Plasticizing rate (PS): 12.6 g/s

• Screw speed: 0–290 rpm

Clamping Unit

• Mold opening stroke: 320 mm

• Distance between tie bars (H × V): 360 × 360 mm

• Maximum mold height: 380 mm

• Minimum mold height: 150 mm

• Ejector stroke: 100 mm

• Ejector force: 33 kN

General Data

• Maximum pump pressure: 16 MPa

• Pump motor power: 13 kW

• Heater power: 6.3 kW

• Hopper capacity: 25 kg

• Oil tank capacity: 190 l
