HAITIAN - JU4500II RO-INJ-HAI-2019-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used HAITIAN JU4500II For Sale | gindumac.com

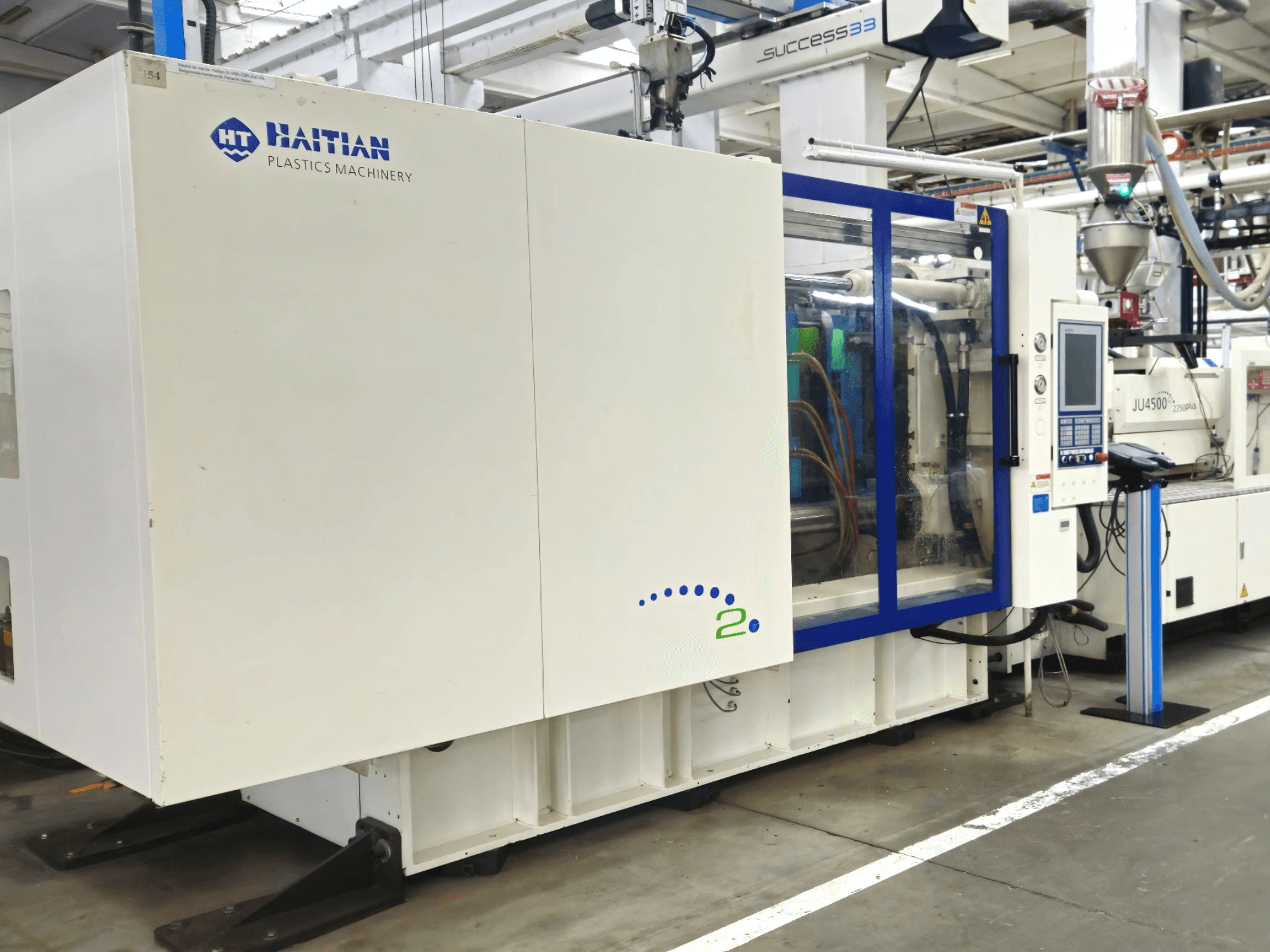

This HAITIAN JU4500II was manufactured in 2019. It features a clamping force of 4,500 kN, a maximum injection volume of 1,239 cm³, and a screw diameter of 80 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN JU4500II machine we have for sale. Contact us for more information about this machine.
Overview
- brand: HAITIAN
- year: 2019
- MODEL: JU4500II
- production hours: 34573
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - HAITIAN JU4500II
Dimensions
- Machine Height: 2240 mm
- Machine Length: 7200 mm
- Machine Weight: 2200 kg
Technical Specification
- Clamping Force: 4500 kN
- Screw Diameter: 80 mm
Additional Information
Maximum injection volume: 1,239 cm³
Minimum mould height: 350 mm
Maximum mould height: 1,050 mm
Opening stroke: 1,250 mm
Platen dimensions (W × L): 1,090 × 1,180 mm
Tie-bar distance (W × L): 1,090 × 1,180 mm
Motor power: 59 kW
Heater power: 36.4 kW
Electrical connection pins: 32
Injection nozzle radius (tip): R10
Centering ring diameter: 200 mm
Operating hours: 34,573 h
Condition: Excellent
Status: In production
Additional equipment
Equipped with robot: Yes
Robot interface: Euromap 67
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
