Hanwha XD 38 N

Photo Gallery

Hanwha - XD 38 NCZ-TUR-HAN-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

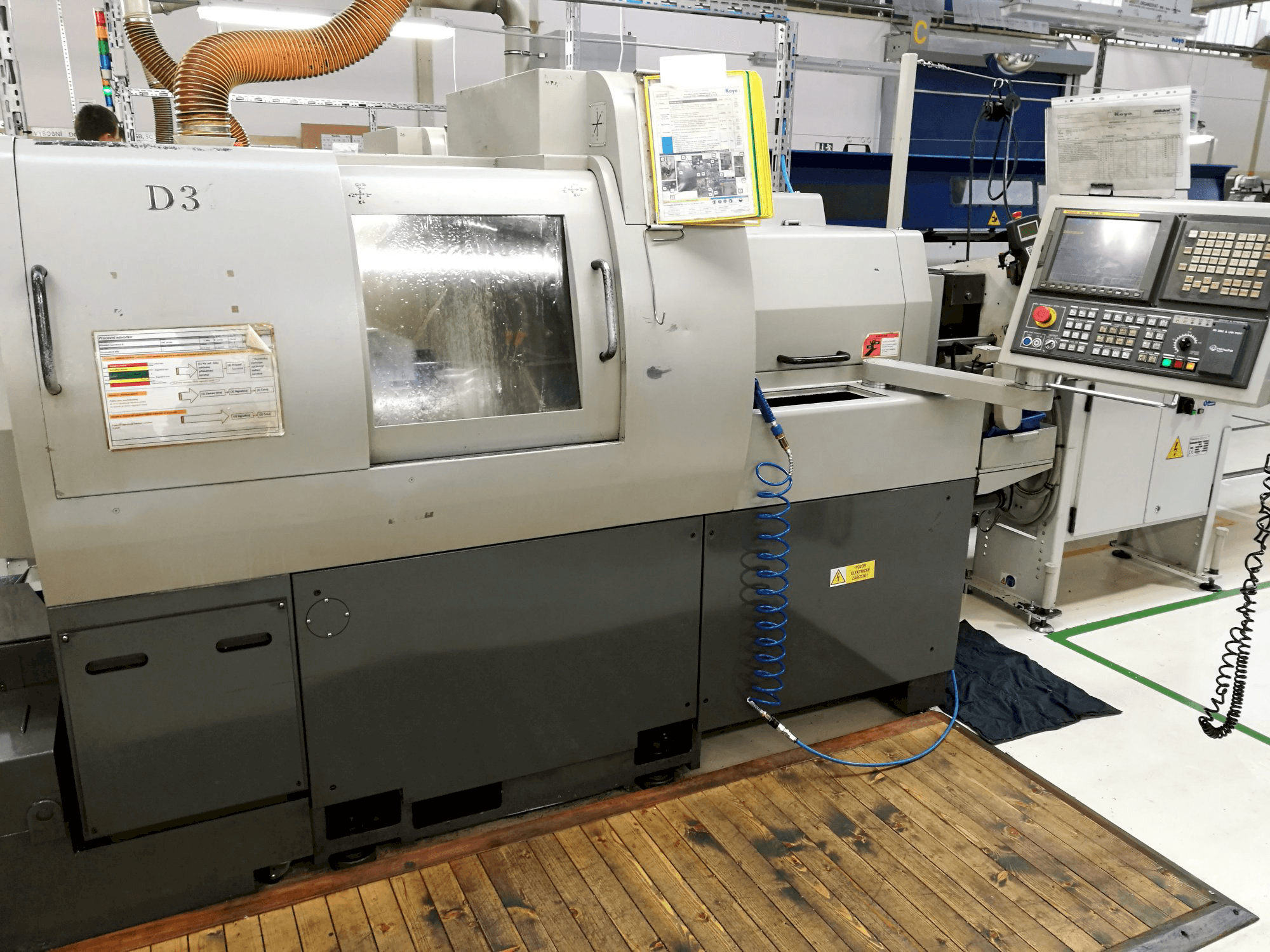

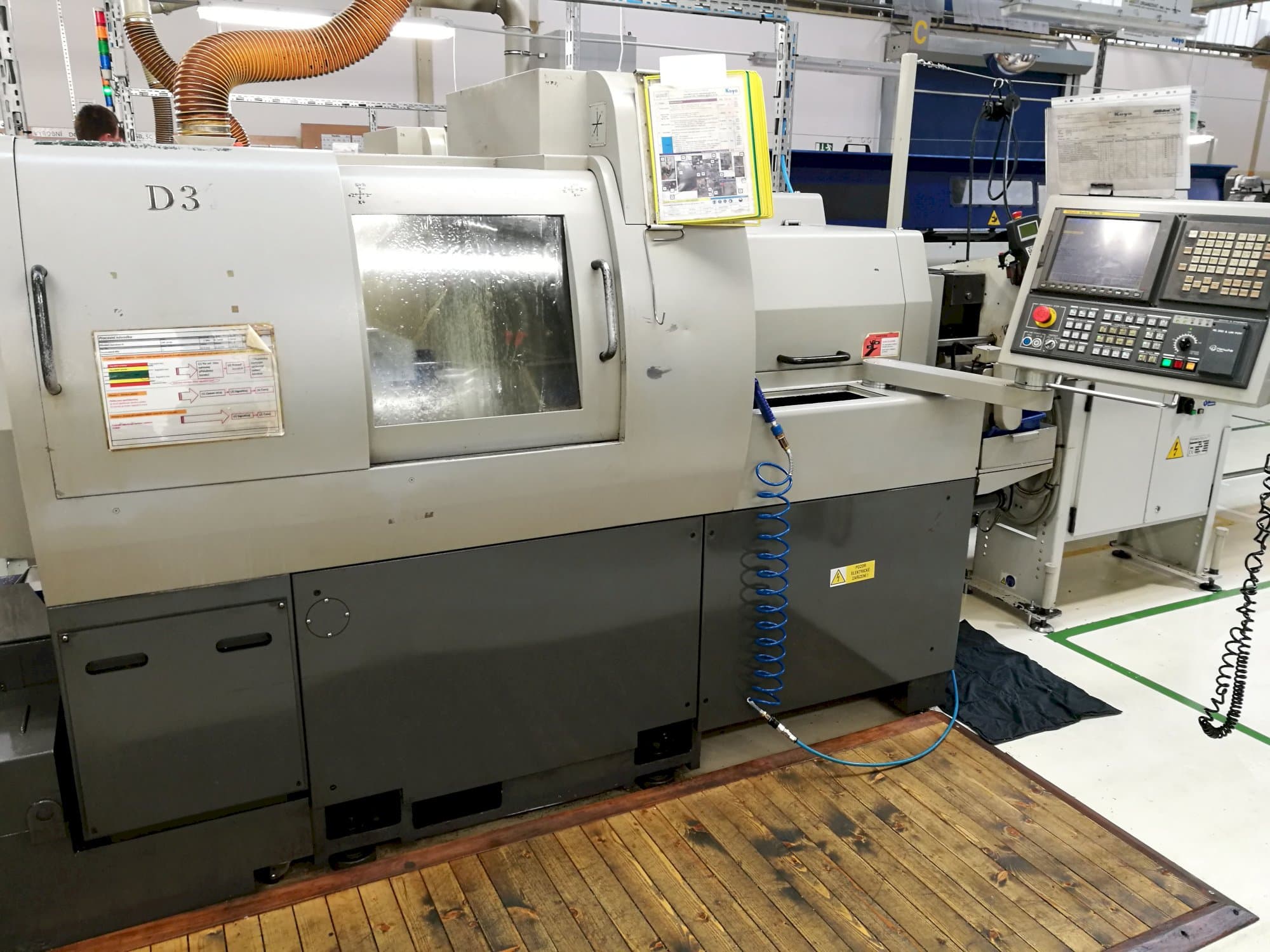

Hanwha XD 38 N Lathe

This Hanwha XD 38 N Lathe from 2008 was made in South Korea and has a working record of 30000 production hours since then. Controlled through a FANUC Series 18i-TB Control unit and equipped with 2 spindles and a sub spindle; this very flexible machine is able to work with 2 of its 5 axes simultaneously. This machine stands out for its front tool, live cross-driven, off-center drill and back tool unit.

Overview

brand: Hanwha
year: 2008
MODEL: XD 38 N
production hours: 30000
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Hanwha XD 38 N

General Data

Measurements width: 2711 mm
Measurements depth: 1468 mm
Measurements height: 1793 mm
Machine weight: 4050 mm KG

Control Unit

Model: Series 18i-TB
CNC main language: Czech
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 8000 rpm 1/MIN

Movement

Z-AXIS Movement: 70 mm

Workpiece

Workpiece drm: 38 mm

Media

Chip conveyor: Yes

Additional Equipment

- Bar feeder BOSS 545 E/R (Year 2008)
- 70 collets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
