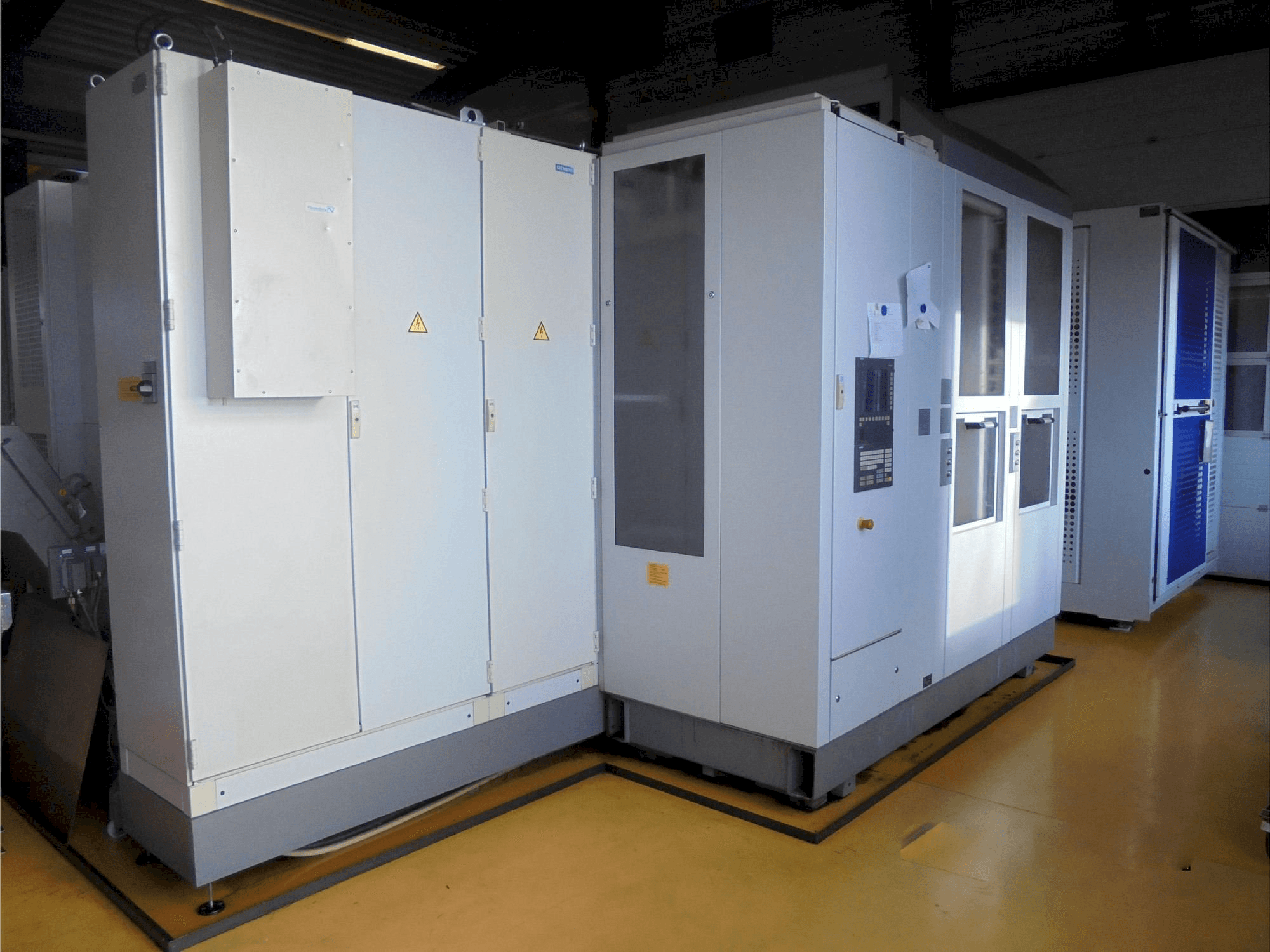

Front view of Heckert HEC500D XXL  machine

Heckert HEC500D XXL

Heckert - HEC500D XXL

2010

240,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Heckert HEC500D XXL Horizontal Machining center was manufactured in the year 2010. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 15000 rpm.

Overview

  • brand: Heckert
  • year: 2010
  • MODEL: HEC500D XXL
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-MIL-HEC-2010-00002

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 840 D

Main drive

  • Spindle speed range: 15000 1/MIN

Additional Information

    Extra information

    • - Tool holder, hollow shank taper DIN 69893 *Tool chain magazine 60 places 500 x 500 mm * Prepared for retrofitting a portable electronic handwheel (in the manual control panel) *Internal coolant supply: Coolant through the center of the spindle centric form AD; mechanically adjustable; Coolant tank integrated with backwash filter External coolant supply: coolant via nozzles mu dei spindle * Flushing gun at the clamping station *Shaft shower > Open outlets *Chip conveyor, scraper *Completely enclosed work area cladding according to UV *Piece counter on the NC screen *Remote diagnosis with analog modem *Computer connection via Ethernet interface * Pallet sequence operation *Tool speed monitoring *Operating hours display * Operating voltage *Dialog language German or English When ordering the options, the corresponding items of the basic equipment are omitted. *Color scheme: Light grey RAL 7035, Mouse grey RAL 7005, Ruby red RAL 3003 * Documentation in German on CD-ROM Sinumerik 840D control system The machining center is equipped with a CNC Sinumerik 840D or DE with integrated PLC. The control system in combination with the SIMODRIVE 61D drive components is designed for maximum machining accuracy and high productivity. The most important functions of the standard equipment are listed below: Operating and display components / interfaces - Flat control panel with 15" TFT color display - AT-compatible PC as HMI-PCU50 with WINDOWS user interface and membrane keyboard (HMI = human-machine communication)| - Machine control panel for operating machine functions - USB interface on the main control panel - Remote diagnostics with analog modem and software 1 / - Ethernet interface 10/100 Mbit/s for RJ45 connector Control system structure - CNC user memory 5.1 MByet buffered for programs and data - Feed and rapid traverse override (0... 120/100%) - Spindle override (50...120%) CNC functionality - Tool life or quantity monitoring (selectable per tool) - Geometry axes can be switched online in the CNC program - FRAME concept - Inclined machining with FRAMES - Synchronized actions and fast auxiliary function output - Program input and editing simultaneous to machining - Standard milling and drilling cycles with graphic support and access protection - Tapping with and without compensating chuck - Oriented spindle stop - Programming language (DIN 66025 and high-level language extension) - Part program management (program names with 32 alphanumeric characters) - Main program call from main program and subprogram - Dimensions in metric and inch - Input and display unit 0.001 mm/degree - Dynamic feedforward control (speed feedforward control) - Friction feedforward control Operating and display functions - Block search with and without calculation Manual input (MDA) and TEACH NI - Set-up functions (JOG) for all axes and the milling spindle with machine control panel or manual control panel - Constantly active diagnostics system with error and status display in plain text - Screens for display or input of: Tool data, process data, data for chip conveyor runtime regime, data for operator influence, operating hours display Service function for tool and pallet changes Tool corrections - Tool management - Tool wear monitoring (time, number of pieces) - Tool radius correction in the plane Zero point offsets - 04Zero point offsets ej axis and additional additive, programmable zero point offsets - Zero point offsets programmable (FRAMES)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
