HEDELIUS BC 50

Photo Gallery

HEDELIUS - BC 50NL-MIL-HED-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

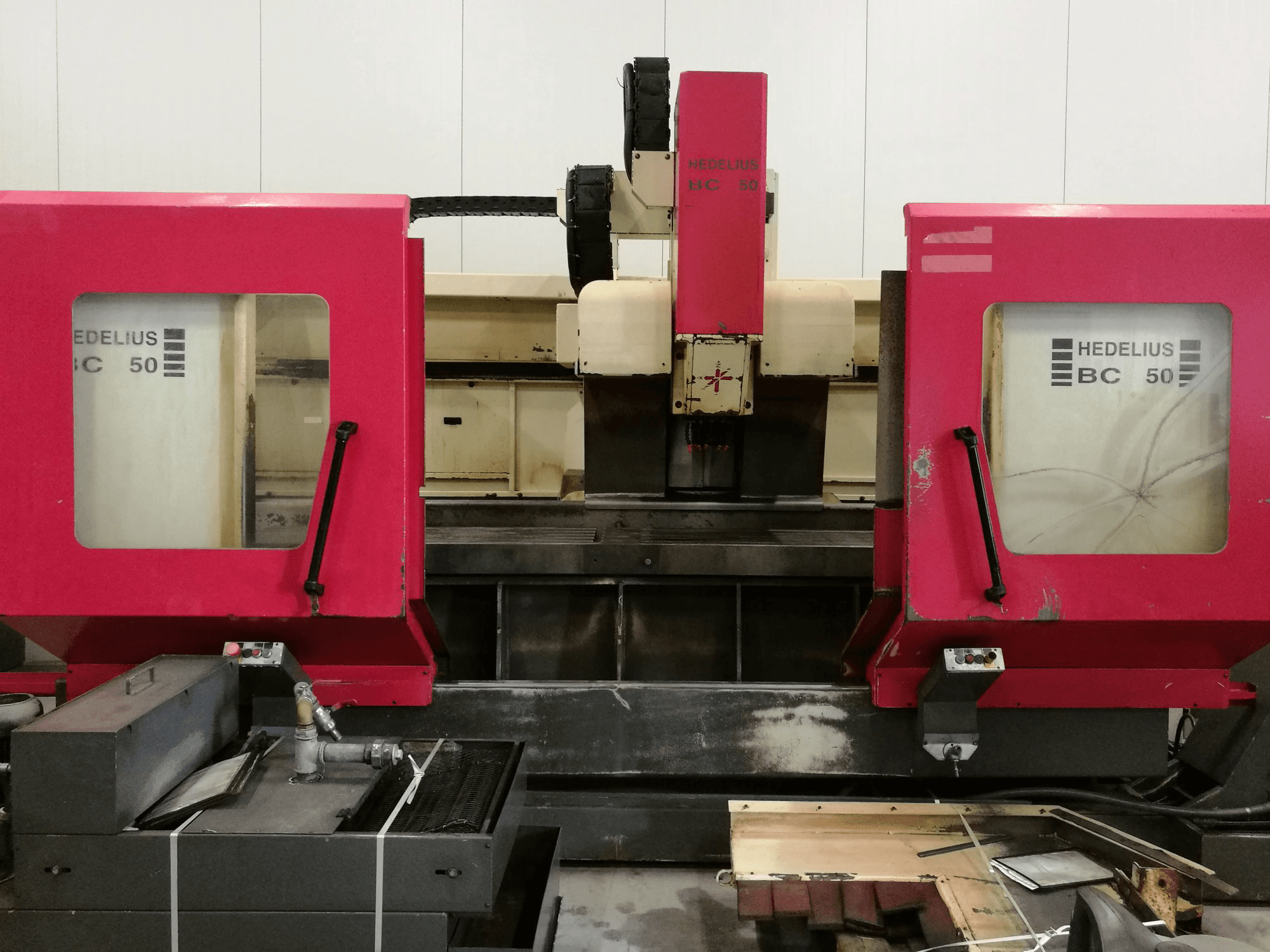

HEDELIUS BC 50 Vertical Machining Center

This HEDELIUS BC 50 Vertical Machining Center from 1998 was manufactured in Germany and has been in operation for 14000 production hours. Equipped with a HEIDENHAIN TNC 426 Control Unit, this 20 tool changer machine stands out due to its precision workpiece, efficient shuttle operations and extensive range of accesories. During the past, this machine has mainly worked with up to 12 mm of stainless steel. It presents excellent conditions, as it has been inspected by HEDELIUS on a yearly basis. This machine is prepared for a 4th axis.

Overview

brand: HEDELIUS
year: 1998
MODEL: BC 50
production hours: 14000
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HEDELIUS BC 50

General Data

Measurements width: 5200 mm
Measurements depth: 2500 mm
Measurements height: 2750 mm
Machine weight: 10000 kg

Control Unit

Model: TNC 426
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 2100 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 2200 mm
Outer width: 500 mm

Tools

Max weight: 60 kg
Max tool diameter: 120 mm
Max tool length: 260 mm
Type of tool holder: 40 SK

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
