➤ Heller MC 16 Horizontal Machining Center - Used

This Heller MC 16 Horizontal Machining center was made in 2002 in Germany. It is equipped with a Siemens 840 PL (Power Line) control unit and has 4 axis. The machine has a spindle speed of 45 – 12000 rpm.

Overview

brand: HELLER
year: 2002
MODEL: MC 16
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MC 16

Control Unit

Control Brand: SIEMENS
Control Model: 840 PL (Power Line)

Dimensions

Table Length: 400 mm
Table Width: 500 mm

Movement

Number of Axes: 4
X-axis Travel: 630 mm
Y-axis Travel: 630 mm
Z-axis Travel: 630 mm

Technical Specification

Spindle Power: 40 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Separate cooling aggregates for the motor spindle and for coolant agent.

Technical Machine Benefits

Pallet changing time 8 sec.

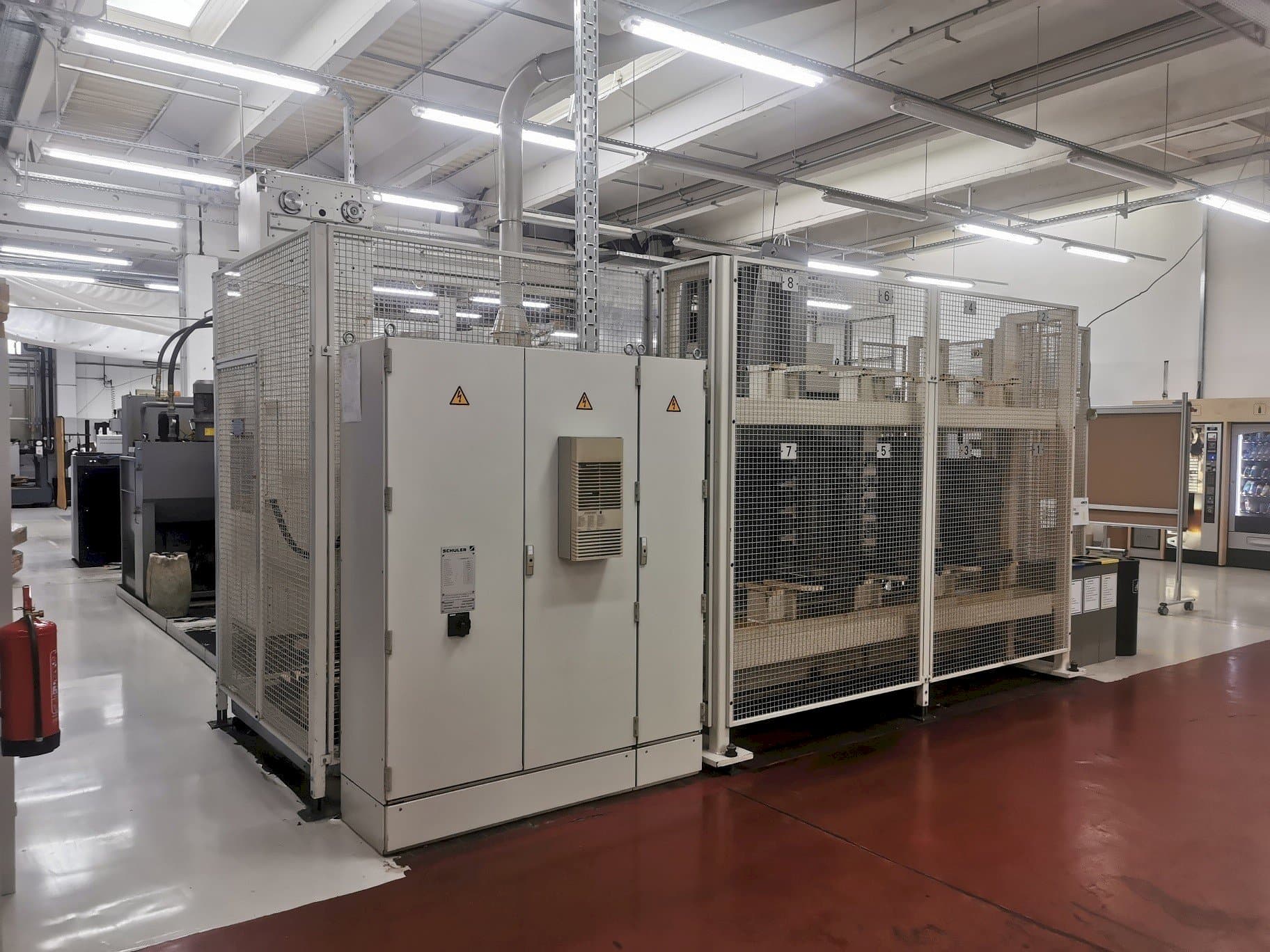

Pallet changer with divider splash guard for mounting the work pieces during the machining process onto the outside pallet, which can be turned manually 4 x 90°. Machine was interlinked with a schuller pallet storage system (10 pallets + 2 in machine) and has got no safety door in front of the machine
Nc rotary table b axis indexing 360,000 x 0. 001 °
Feed force 10000 nm
Feeds / quick feeds xyz 1 – 60,000 mm/min
B axis speed 25 rpm / min
Separate standing 160 position rack-type tool magazine with tool placement door and double swivel gripper, own siemens pc-control with screen tool administration system
Tool brakeage control
Renishaw measuring probe head for workpiece
Large coolant preparation unit knoll model ae 1110 with turbo filter and high pressure pump 6,3 kw model kts 25 for internal coolant supply thru the spindle built in mobile knoll

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
