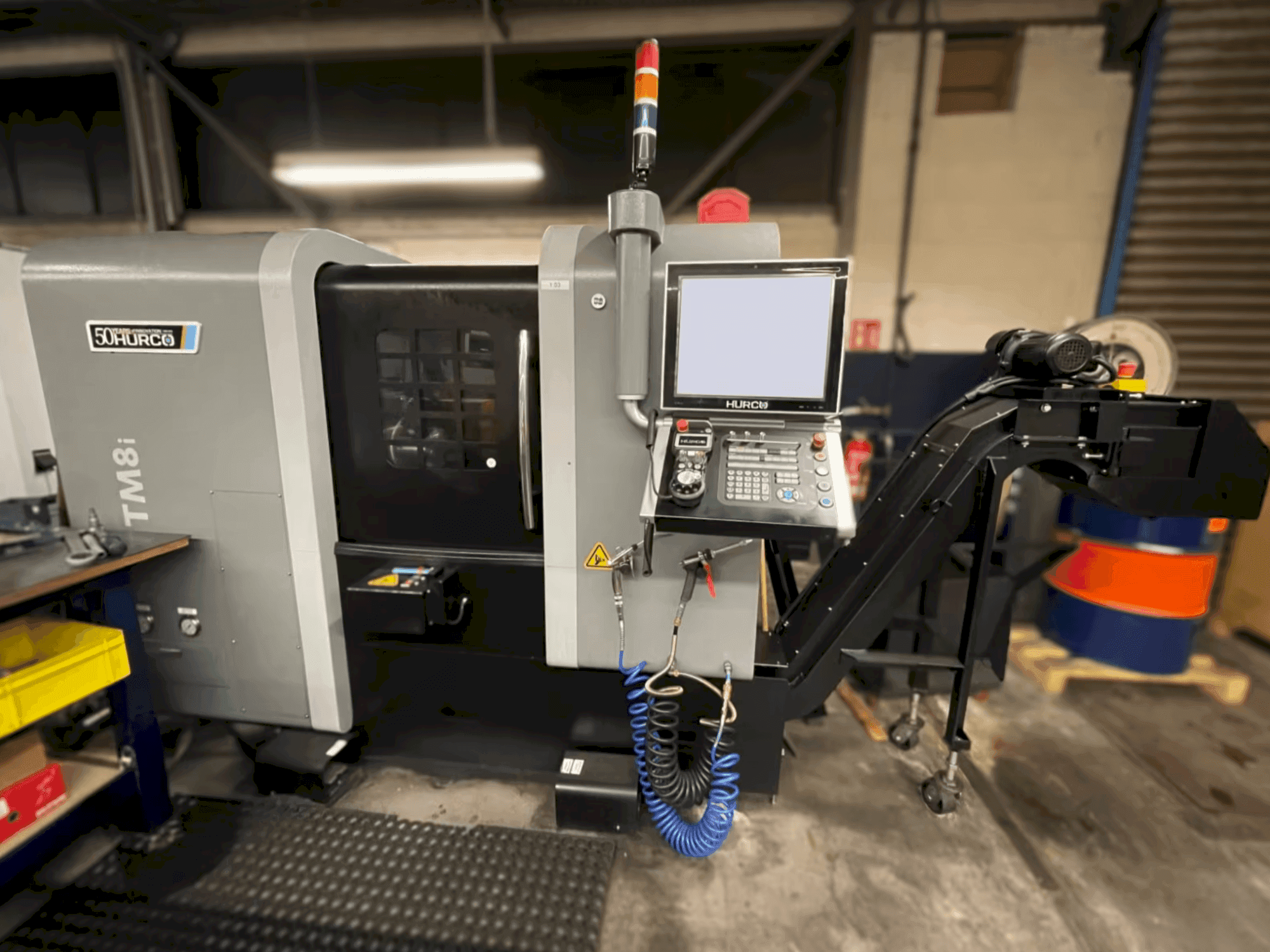

➤ Used Hurco TM8i Horizontal Lathe For Sale | gindumac.com

This Hurco TM8i was manufactured in 2019. It features a max turning diameter of 256 mm, swing over bed of 525 mm, and a spindle speed up to 4,000 rpm. The machine includes a 12-station turret, a three-jaw chuck with a diameter of 210 mm, and a chip conveyor. Consider the opportunity to buy this Hurco TM8i horizontal turning machine. Contact us for more information.

Overview

brand: Hurco
year: 2019
MODEL: TM8i
production hours: 1360
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: HURCO

Technical Information - Hurco TM8i

General Data

Measurements width: 2729 MM
Measurements depth: 4486 MM
Measurements height: 2185 MM
Machine weight: 4050 KG

Control Unit

Brand: HURCO
Model: n/a

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 203 MM
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 MM
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece drm over bed: 525 mm
Workpiece drm over support: 300 mm

Media

Chip conveyor: Yes

Additional Equipment

- Tool Measurement: Tooleye
- Parts Catcher: Available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Torque: 220 nm
- - Max. Power: 23 kw
- - Positioning accuracy pmax: 0. 01 mm
- - Repeatability ps: 0. 005 mm
- - Max. Turning diameter: 256 mm
- - Turret type: vdi 30
- - Stations: 12
- - Max. Boring bar diameter: 32 mm
- - Shank cross-section: 19 mm
- - Indexing time: 0. 5 sec
Qualitative Machine Benefits:
- - Tail stock type: manual
- - The machine is in almost new condition and is ready for immediate use. It is being sold because the turned parts are no longer made in-house, but by a service provider.
- - Tools can be purchased separately if required.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
