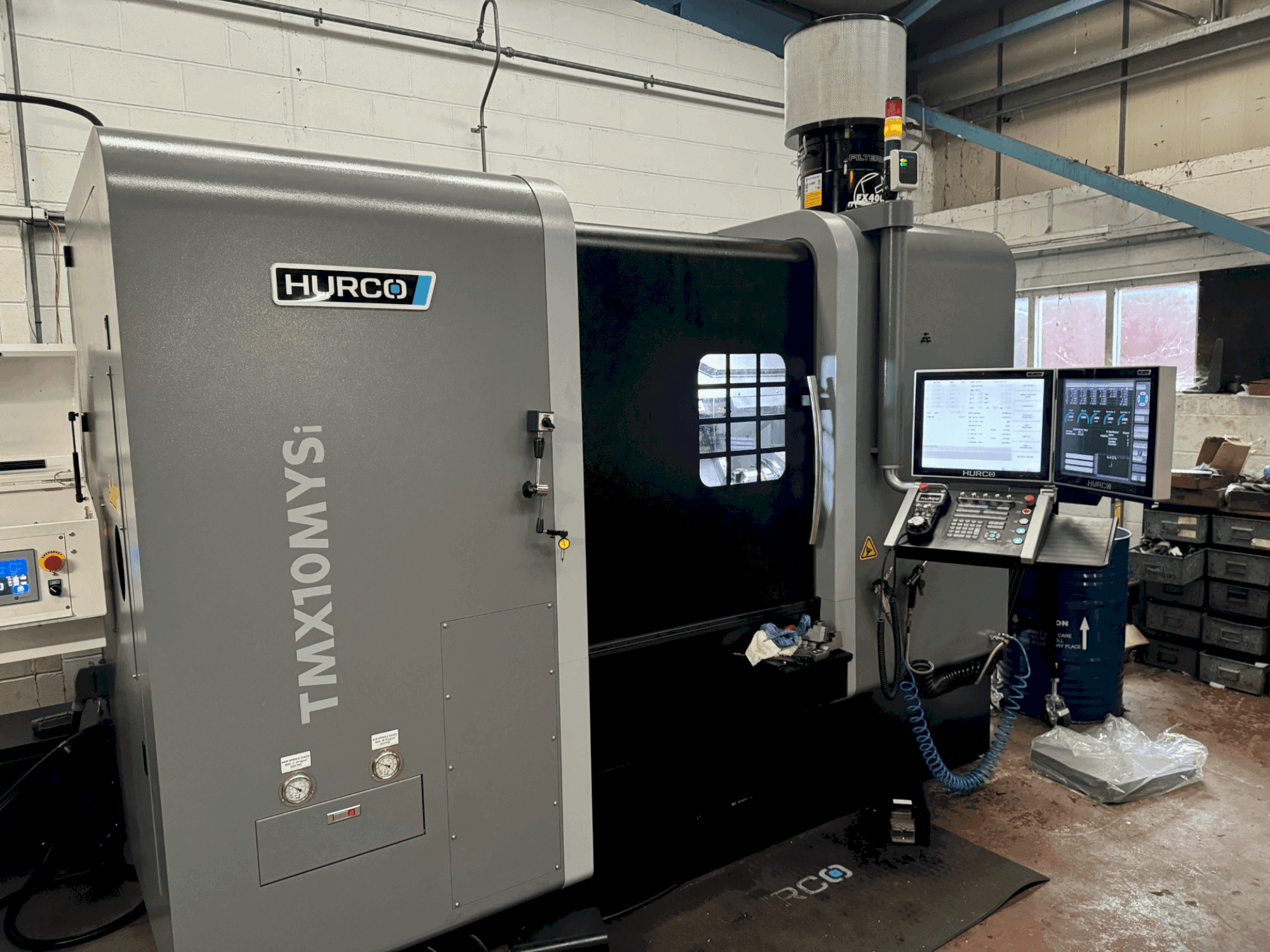

Hurco TMX10-MYSi

Photo Gallery

Hurco - TMX10-MYSiGB-MIL-HUR-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco TMX10-MYSi For Sale | gindumac.com

This 4-axis Hurco TMX10-MYSi horizontal turning machine was manufactured in 2023. Ideal for precision machining, it offers advanced multi-tasking capabilities. Consider the opportunity to buy this Hurco TMX10-MYSi horizontal turning machine. Contact us for more information.

Overview

brand: Hurco
year: 2023
MODEL: TMX10-MYSi
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: HURCO

Technical Information - Hurco TMX10-MYSi

Control Unit

Control Brand: HURCO

Dimensions

Machine Weight: 7700 kg

Movement

Number of Axes: 4
X-axis Travel: 222.5 mm
Y-axis Travel: 55 mm
Z-axis Travel: 670 mm

Additional Information

Additional equipment

Voltage Required / Fuse rating: 3-phase 380V/415V 50 Hz/125 amp D rated MCCB
Power Rating / Full Load KVA: 68.6 KVA
Air Requirements: 5 CFM @ 80-100 PSI / 0.14 M3/min. @ 6-8 bar / 0.1 connected via a 12 mm nylon push fit

Machine Benefits

Technical Machine Benefits

New enhanced graphics package, 1. 4x faster
Superb max5 control
Enhanced version 11 software
X axis: 30-degree incline, 222. 5 mm
Positioning accuracy: 0. 010 mm
Repeatability: 0. 005 mm
New enhanced graphics package, 1. 4x faster
Superb max5 control
Enhanced version 11 software
128gb solid state hard drive / 4gb ram

Extra Information

Maximum Operating Dimensions (approx.): Please refer to attachment A drawings Machine Shipping Weight: 8540 Kg Shipping Dimensions (W x D x H): 4600 x 2300 x 2554 mm Turret Maximum Boring Bar Diameter: Ø 40 mm Tool Shank Width: 25 mm x 25 mm Rotation: Bi-directional Indexing Repeatability: +/- 1.6 Turret Positioning: 0.01 mm Boring Block Alignment: 0.02 mm Tool to tool index time (adjacent / furthest): 0.3 sec / 0.8 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
