- Hyundai KIA HS500i Horizontal Machining center

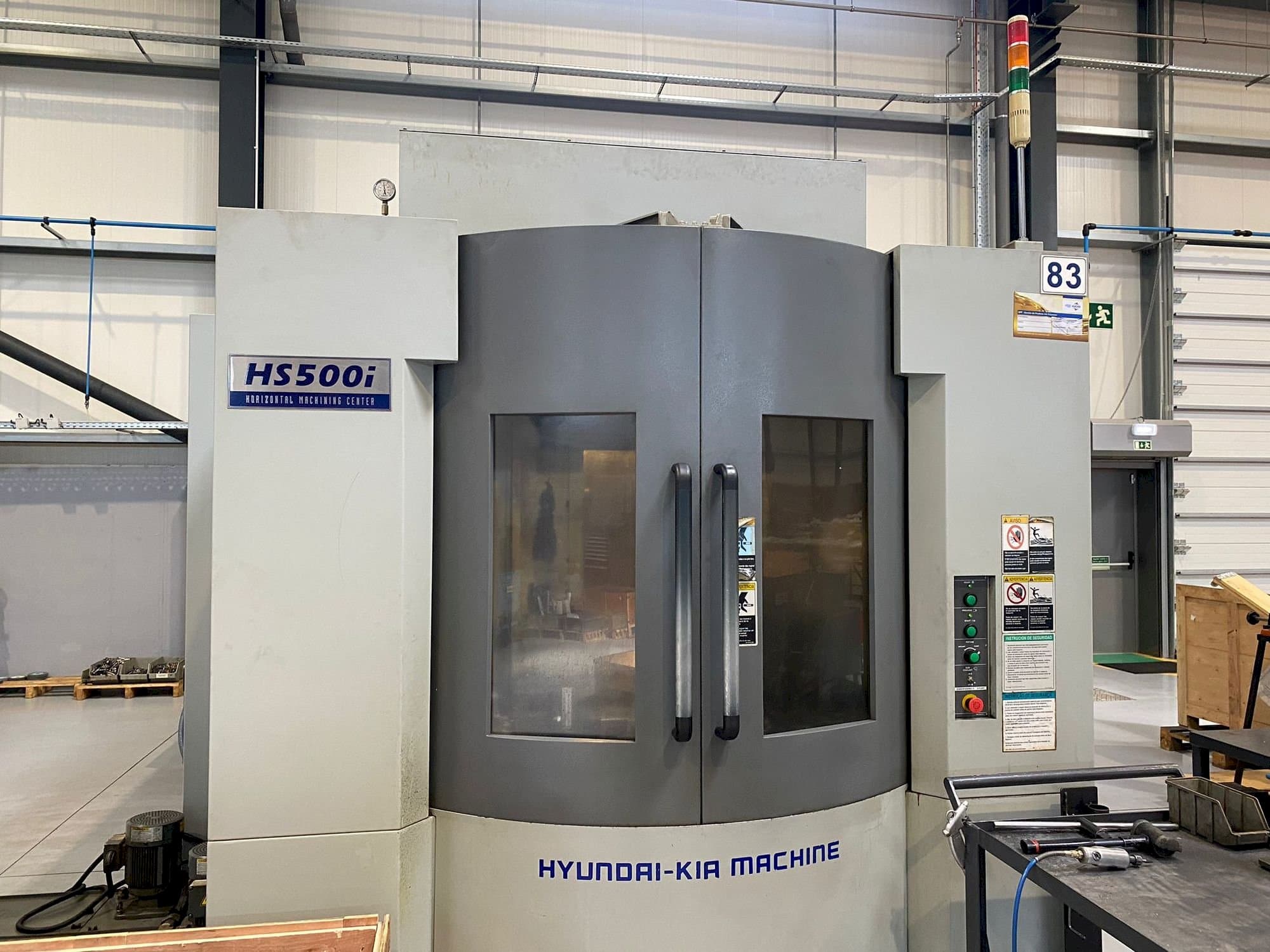

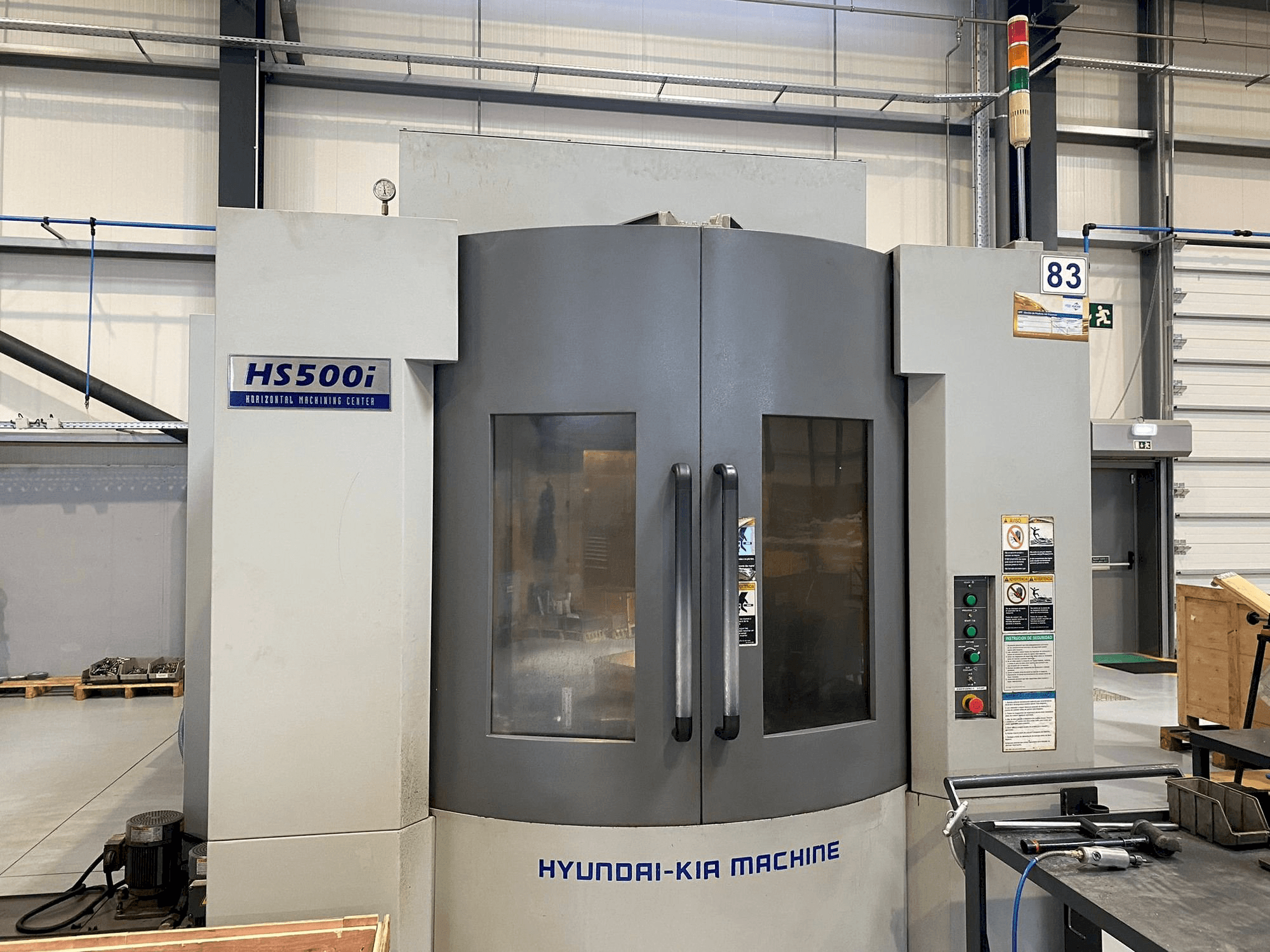

This Hyundai KIA HS500i Horizontal Machining center was made in 2008 in Korea and has 4801 cutting hours. It is equipped with a Fanuc Series 21i-BM control unit and has 3 axis. The machine has a spindle speed of 8000 rpm, is in good condition and well maintained.
Overview
- brand: HYUNDAI KIA
- year: 2008
- MODEL: HS500i
- production hours: 4081
- application type: Milling
- Location: Portugal
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - HYUNDAI KIA HS500i
General Data
- Measurements width: 5100 MM
- Measurements depth: 3100 MM
- Measurements height: 3020 MM
- Machine weight: 15000 KG
Control Unit
- Model: Series 21i-BM
- Brand: FANUC
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 850 mm
- Y-AXIS Movement: 700 mm
- Z-AXIS Movement: 750 mm
Workpiece
- Workpiece x: 800 mm
- Workpiece y: 850 mm
- Workpiece weight: 500 kg
Table
- Outer length: 500 mm
- Outer width: 500 mm
Tools
- Slots in storage: 40
- Max weight: 8 kg
- Max tool diameter: 95/160 mm
- Max tool length: 400 mm
- Type of tool holder: BT40
Additional Information
- Technical Machine Benefits:
- - Grade-to-grade indexing table
- - 2 pallet
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
