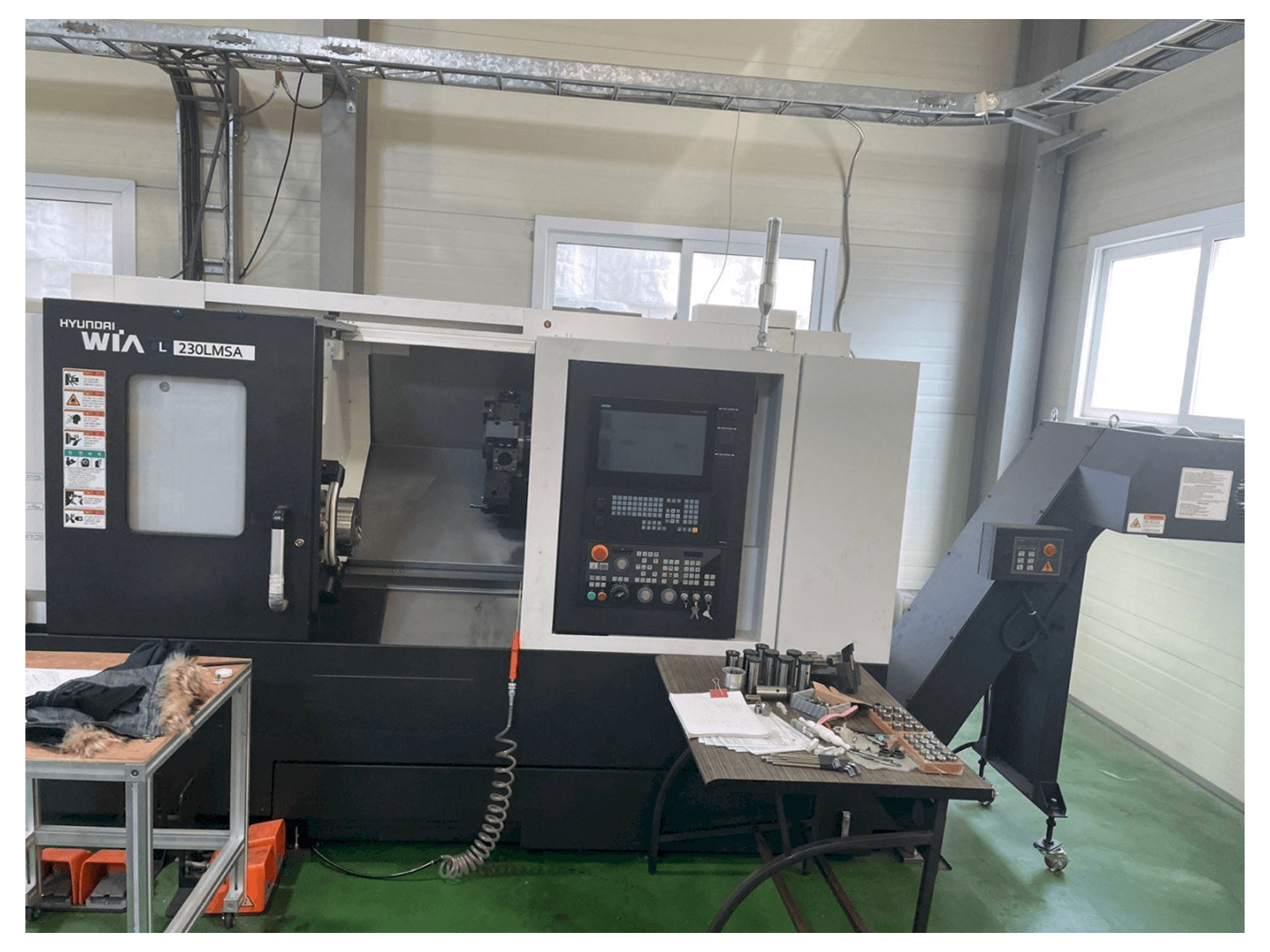

Front view of Hyundai Wia L 230LMSA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L 230LMSA

Photo Gallery

Hyundai Wia - L 230LMSAKR-TUR-HYU-2020-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L 230LMSA Lathe

This Hyundai Wia L 230LMSA Lathe machine was manufactured in the year 2020. This machine is operated by a SIEMENS control unit. It works with the main spindle speed up to 4000 rpm and sub spindle speed up to 5000 rpm. The machine also works with live tools 2 Angular and 2 Straight. 2 units are available.

Overview

brand: Hyundai Wia
year: 2020
MODEL: L 230LMSA
application type: Turning
Location: South Korea
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Hyundai Wia L 230LMSA

Control Unit

Control Brand: SIEMENS

Movement

X-axis Travel: 220 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Main spindle rpm: 4,000
Sub spindle rpm: 5,000
Q-setter chip conveyer
Chip bucket call right (led 3 step)
Mpg handle
Manual books
Ce mark

Technical Machine Benefits

Zb axis : 590 mm
C1 & c2 axis : 0. 001 degree
Swing over bed : 600 mm
Maximum turning length : 520 mm
Bar capacity : 65 mm
Main chuck size : 8 inch
Sub chuck size : 6 inch
Turret capacity : 12ea (bmt55 type)
Live tools (2 angular, 2 straight)
Spindle belt type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
