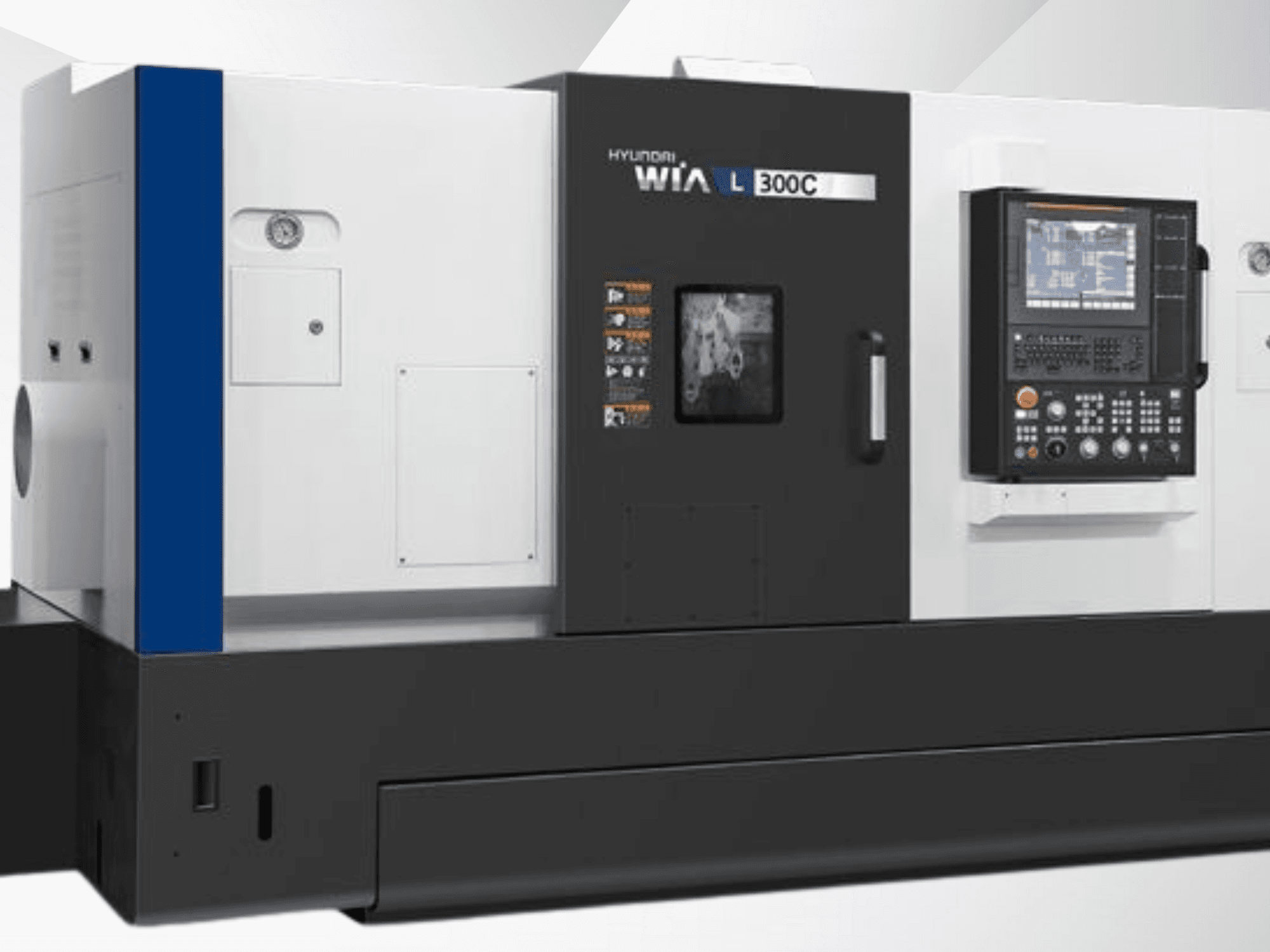

Hyundai WIA L300C CNC lathe machine, front view, with control panel and operational display. Features a sleek, modern design.
Hyundai WIA L300C CNC lathe machine, front view, with control panel and operational display. Features a sleek, modern design.

Hyundai - Wia L300CDE-TUR-HYU-2025-00004

120,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Hyundai Wia L300C was manufactured in 2025. It features a swing over the bed of Ø750 mm, a maximum turning diameter of Ø500 mm, and a turning length of 720 mm. The spindle supports a bar capacity of Ø90 mm and operates at speeds up to 3000 rpm. Ideal for precision turning with its robust 12-tool turret and rapid traverse rates. Consider the opportunity to buy this Hyundai Wia L300C horizontal turning machine. Contact us for more information.

Overview

  • brand: Hyundai
  • year: 2025
  • MODEL: Wia L300C
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - Hyundai Wia L300C

Control Unit

  • Control Brand: FANUC
  • Control Model: i Series – Smart Plus

Dimensions

  • Machine Height: 1997 mm
  • Machine Length: 3506 mm
  • Machine Weight: 6400 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 355 mm
  • Z-axis Travel: 750 mm

Technical Specification

  • Spindle Power: 26 kW
  • Spindle Speed: 3000 RPM

Additional Information

  • Condition: Original packaging, 0 operating hours

  • Capacity:

    • Swing over bed: Ø750 mm

    • Swing over carriage: Ø480 mm

    • Max. turning diameter: Ø500 mm

    • Max. turning length: 720 mm

    • Bar capacity (main): Ø90 mm

    • Bar capacity (sub): Ø102 mm

    • Chuck size (main): 12"

    • Chuck size (sub): –

  • Spindle (main):

    • Spindle bore: Ø102 mm

    • Torque (max/cont.): 1,131/957 Nm (834.2/705.8 lbf·ft)

    • Spindle type: Belt + 2-step gear

    • Spindle nose: A2-8 (A2-11)

  • Feed:

    • Travel (X/Z): 355/750 mm

    • Rapid traverse rate (X/Z): 20/24 m/min

    • Slide type: Box guide

  • Turret:

    • Number of tools: 12

    • Tool size (OD): Ø25 mm

    • Tool size (ID): Ø50 mm

    • Indexing time: 0.3 sec

  • Tank capacity:

    • Coolant tank: 220 l

    • Lubricating tank: 1.8 l

  • Power supply:

    • Electric power supply: 30 kVA

    • Thickness of power cable: Over 35 mm²

    • Voltage: 220/60 (200/50)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
