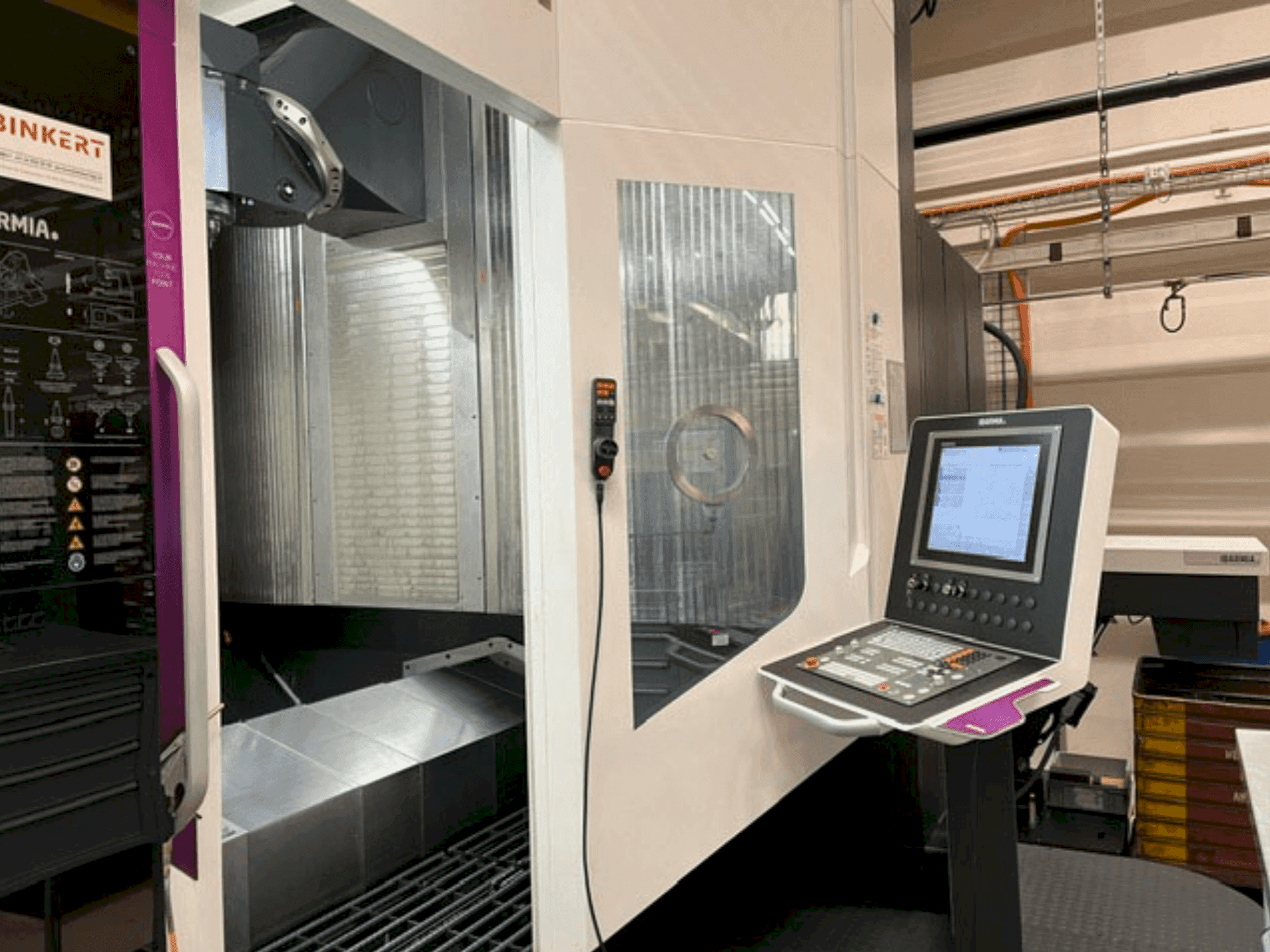

This 5-axis IBARMIA THC 22 Extreme was manufactured in 2020, offering advanced capabilities in a universal machining centre. Ideal for complex and precise machining tasks, this model ensures robust performance and reliability. Consider the opportunity to buy this IBARMIA THC 22 Extreme universal machining centre. Contact us for more information.
Overview
- brand: IBARMIA
- year: 2020
- MODEL: THC 22 Extreme
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - IBARMIA THC 22 Extreme
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640 HSCl
Dimensions
- Machine Depth: 7115 mm
- Machine Height: 5100 mm
Movement
- Number of Axes: 5
- X-axis Travel: 2200 mm
- Y-axis Travel: 1900 mm
- Z-axis Travel: 1500 mm
Technical Specification
- Spindle Power: 48 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- External tool cooling with air
- Internal coolant supply through the main spindle center (70 bar)
- Mist and fume extraction via 2 extraction devices
- Coolant Rinse Pistol: Included
- Mist Extraction: Dust and Mist Extraction using two extraction devices
- Rotating Viewing Window
- 3D Machine Data: Available
- Thermal Package: Series T, without coolant return
- Automatic Machine Activation: Includes automatic startup of the spindle warm-up program
Machine Benefits
Technical Machine Benefits
- Suitable for high-productive manufacturing of medium to large workpieces.
- Offers 5-sided and simultaneous 5-axis machining capabilities.
- Tool magazine: expansion to 120 slots with sas setup station
- 3d wireless workpiece probe: renishaw rmp 60
- Renishaw tool setter: ts27r via electric arm (hpma)
- Table size: 1250 mm x 1250 mm
- Special features: equipped with 6 hydraulic roemheld zero-point clamping systems // 2 pallet table units (1600 x 1250 mm) for clamping
- 3d wireless workpiece probe: renishaw rmp 60
- Renishaw tool setter: ts27r via electric arm (hpma)
- Torque: 300 nm (s1-100%)
Extra Information
Controller Features: Calibration of rotating axes with Heidenhain KinematicsOpt Operation Mode 3 compliant with EN standards Portable Electric Handwheel: Heidenhain HR-510
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
