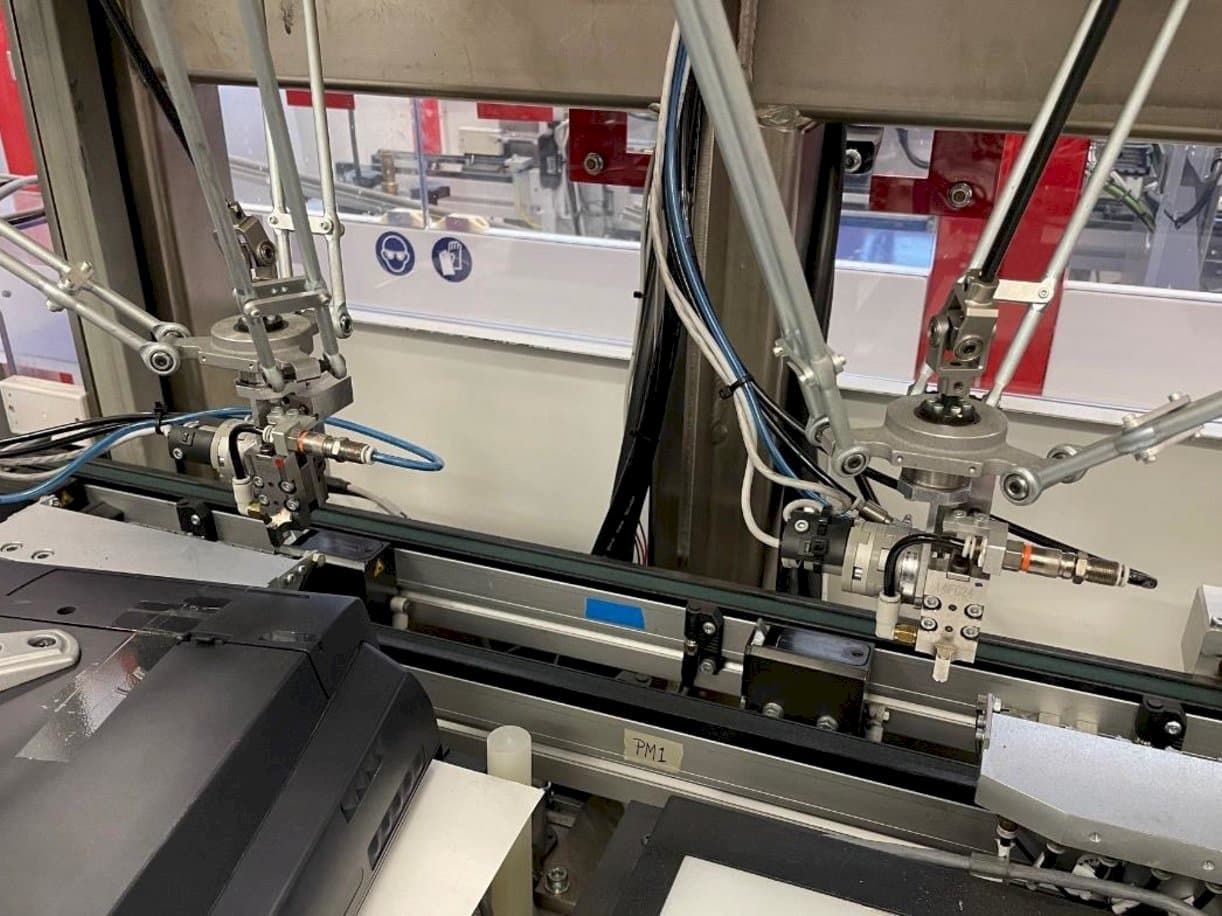

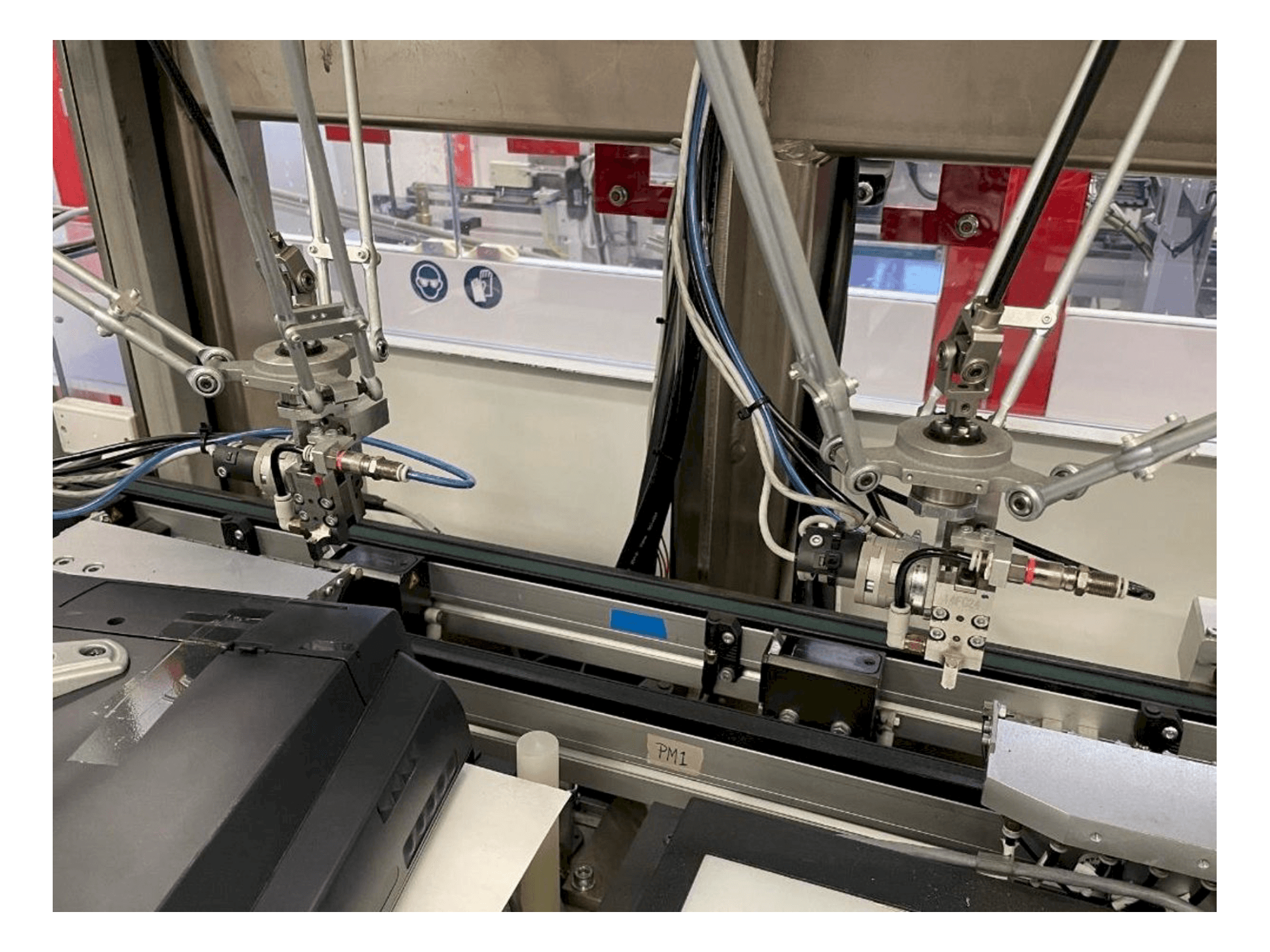

Front view of IMS Tattoo Assembly Line machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

IMS Tattoo Assembly Line

Photo Gallery

IMS - Tattoo Assembly LineDE-OTH-IMS-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
IMS Tattoo Assembly Line

This IMS Tattoo Assembly Line was manufactured in the years 2015 in the Netherlands. It is equipped with Phase 1 and Phase 2a processing technology for the assembly of the needle in shaft together with the cap and tension spring. It operates through the full process from needle load to output. See video for more. There is also a TEAM AUTOMATION BERLIN Tattoo Needle Testing System available to extend the assembly line with an additional testing phase.

Overview

brand: IMS
year: 2015
MODEL: Tattoo Assembly Line
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Technical Information - IMS Tattoo Assembly Line

General Data

Measurements width: 14926 mm
Measurements depth: 4542 mm
Measurements height: 2281 mm
Machine weight: 4500 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Ec directives for machinery safety & electromagnetic compatibility

Technical Machine Benefits

Assembly of needle in shaft together with the cap and tension spring (phase 1 and phase 2a)
- load needle
- clean needle
- inspection needle
- load shaft
- dispense glue
- output
Control system: cpu-type beckhoff cx5010-0112
Hmi (human machine interface): elo 1529l/e926109

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
