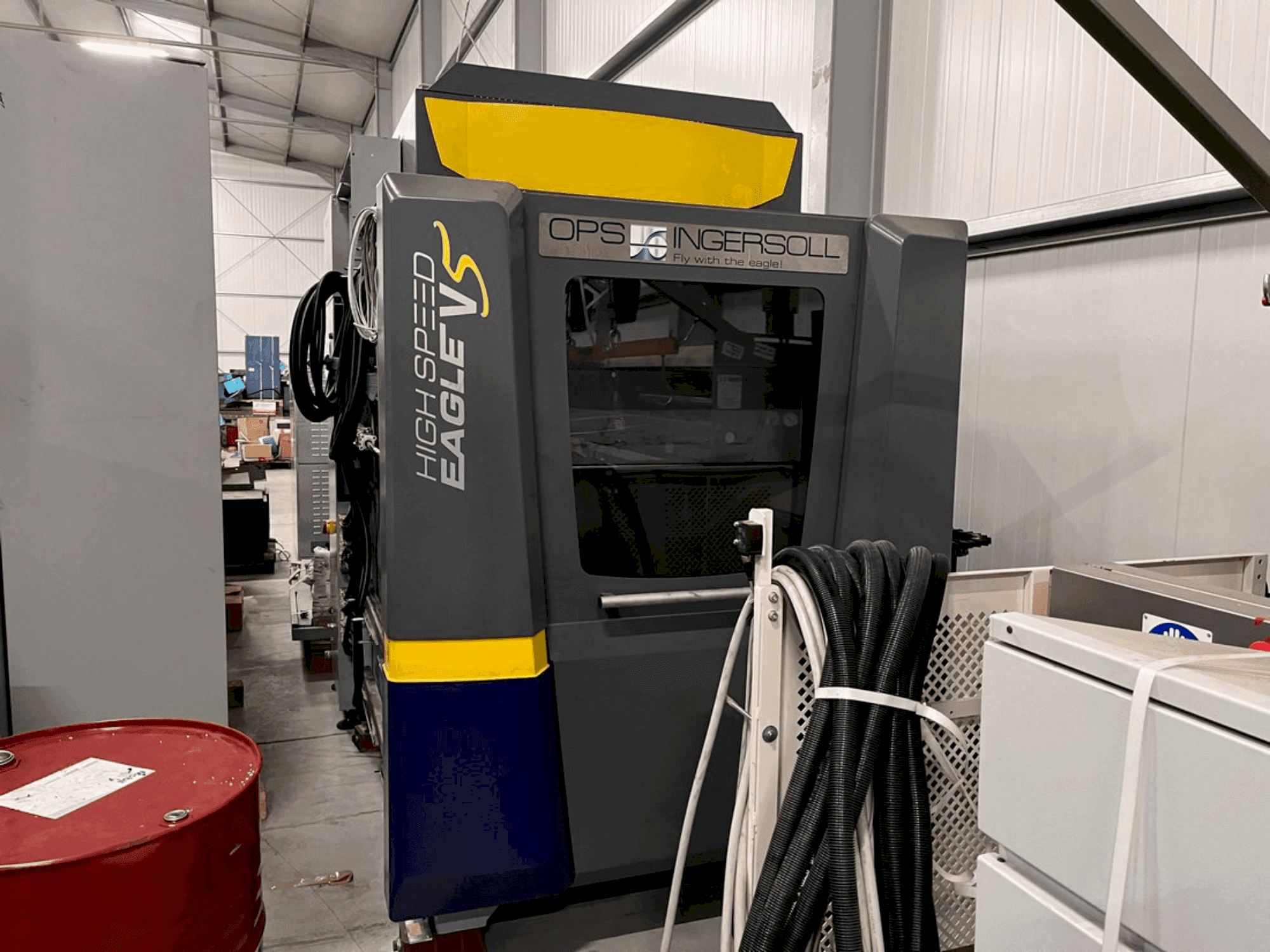

Front view of INGERSOLL High Speed Eagle V5  machine

INGERSOLL - High Speed Eagle V5PL-MIL-ING-2018-00001

230,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis INGERSOLL High Speed Eagle V5 was manufactured in 2018. It features a Heidenhain TNC 530 control, a 15 kW spindle, and 100 tool slots. With travel dimensions of X: 550mm, Y: 850mm, and Z: 450mm, this vertical machining centre represents a robust opportunity for precision machining. Only machine is included. Yaskawa robot and other parts of the automation shown in the video not scope of supply. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: INGERSOLL
  • year: 2018
  • MODEL: High Speed Eagle V5
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - INGERSOLL High Speed Eagle V5

General Data

  • Measurements width: 2800 mm
  • Measurements depth: 2020 mm
  • Measurements height: 2450 mm
  • Machine weight: 8200 kg

Control Unit

  • Model: TNC 640
  • Brand: HEIDENHAIN

Main drive

  • Number of spindles: 1
  • Spindle speed range: 1-42000 rpm 1/MIN
  • Spindle motor power: 15 kW
  • Tool taper: HSK E40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 400 mm
  • B-AXIS Movement: -120°/+60° MM
  • C-AXIS Movement: 40 rpm MM

Table

  • Outer length: 650 MM
  • Outer width: 500 MM
  • TSlots size: 5 x 14H12
  • Number of tslots: 100
  • Table load: 500 kg

    Additional Equipment

    • - Tool Magazine Capacity: 100 positions

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table dimensions: 650 x 500 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
