- ➤ Used WAGNER WMC 600 L For Sale | gindumac.com

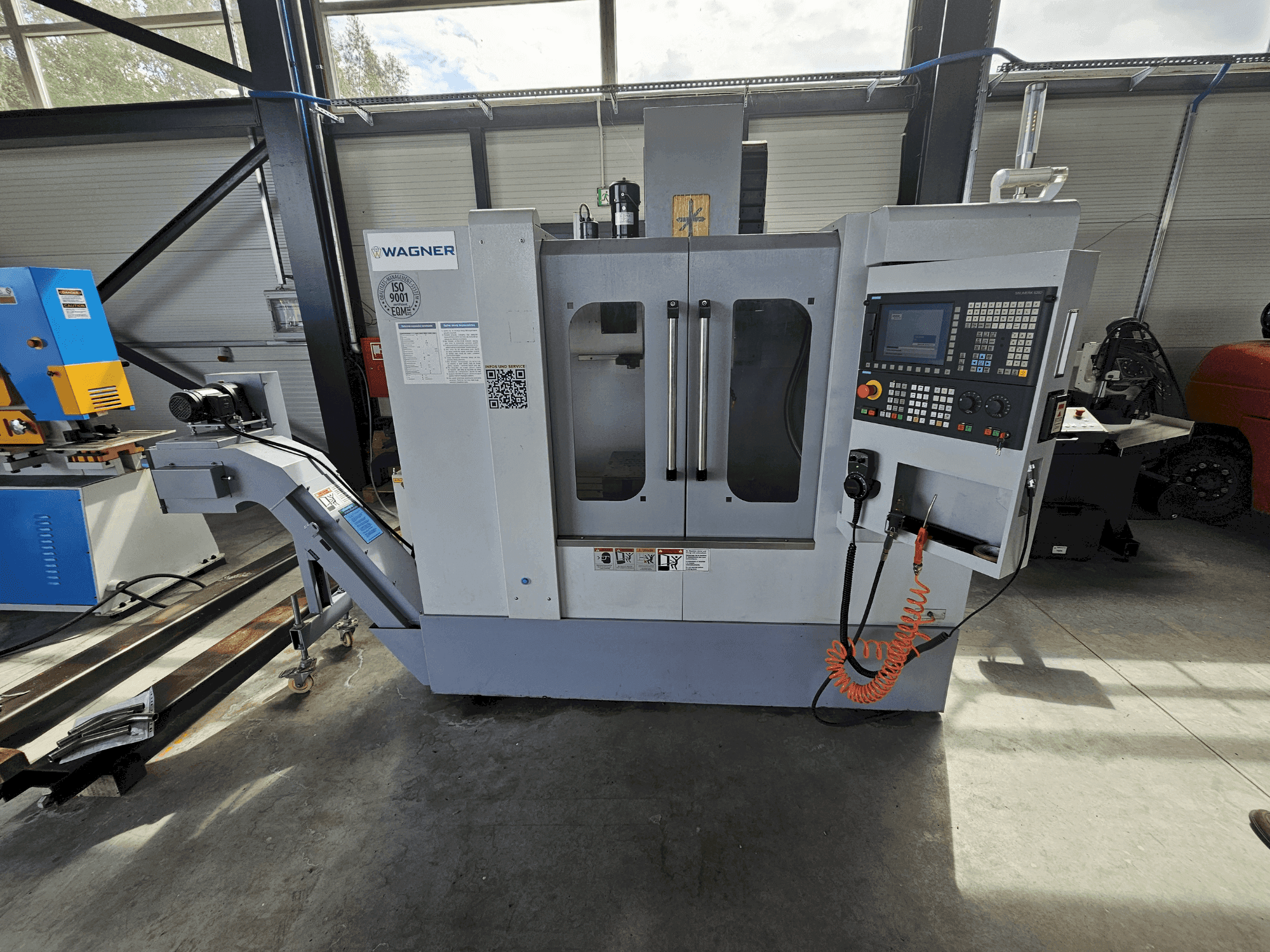

This 3-axis WAGNER WMC 600 L was manufactured in 2021, featuring a robust cast-iron frame and linear guides on all axes. It includes a Siemens 828 Basic ShopMill, an automatic double-arm tool changer with 16 stations, and a complete coolant system. The spindle supports speeds up to 10,000 rpm with a power of 11 kW. If you are looking to get high-quality milling capabilities consider the WAGNER WMC 600 L machine we have for sale. Contact us for more information.
Overview
- brand: WAGNER
- year: 2021
- MODEL: WMC 600 L
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - WAGNER WMC 600 L
General Data
- Measurements width: 1700 mm
- Measurements depth: 2100 MM
- Measurements height: 2240 mm
- Machine weight: 3500 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 828D
Main drive
- Spindle speed range: 80 – 10000 rpm 1/MIN
- Tool taper: SK 40
Movement
- X-AXIS Movement: 600 mm
- X-AXIS Feed Force: 10000 mm/min
- X-AXIS Rapid traverse: 24000 mm/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Feed Force: 10000 mm/min
- Y-AXIS Rapid traverse: 24000 mm/min
- Z-AXIS Movement: 450 mm
- Z-AXIS Feed Force: 10000 mm/min
- Z-AXIS Rapid traverse: 20000 mm/min
Additional Equipment
- - Rigid cast-iron frame construction
- - Linear guides on all three axes
- - Automatic double-arm tool changer (16 stations)
- - Complete coolant system
- - Central automatic lubrication
- - Air blast system for spindle cleaning
- - Machine enclosure with doors
- - Machine and signal lights
- - Documentation in English
- - CE-certified
Additional Information
- Technical Machine Benefits:
- - Spindle motor power (siemens s6 40%): 11 kw spindle motor power (siemens s1 100%): 5. 5 kw
- - Tool magazine capacity: 16 tools
- - Tool holder: din 69871 a sk 40
- - Maximum tool diameter: 89 mm
- - Maximum tool weight: 7 kg
- - Tool change time: 2 seconds
- - Chip-to-chip time: 7 seconds
- - Table clamping surface: 800 x 400 mm
- - Table load capacity: 300 kg
- Qualitative Machine Benefits:
- - Machine is in excellent condition.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
