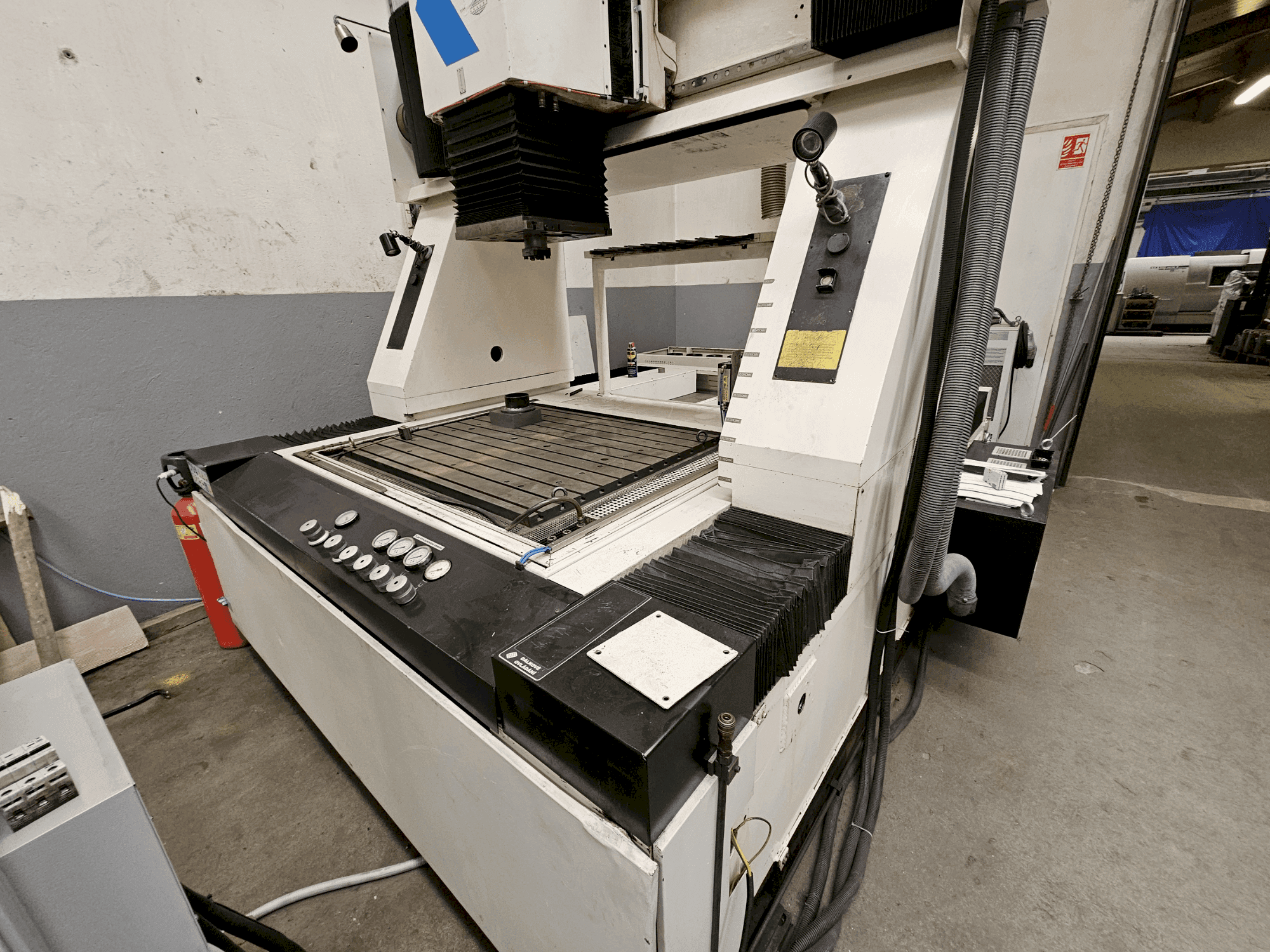

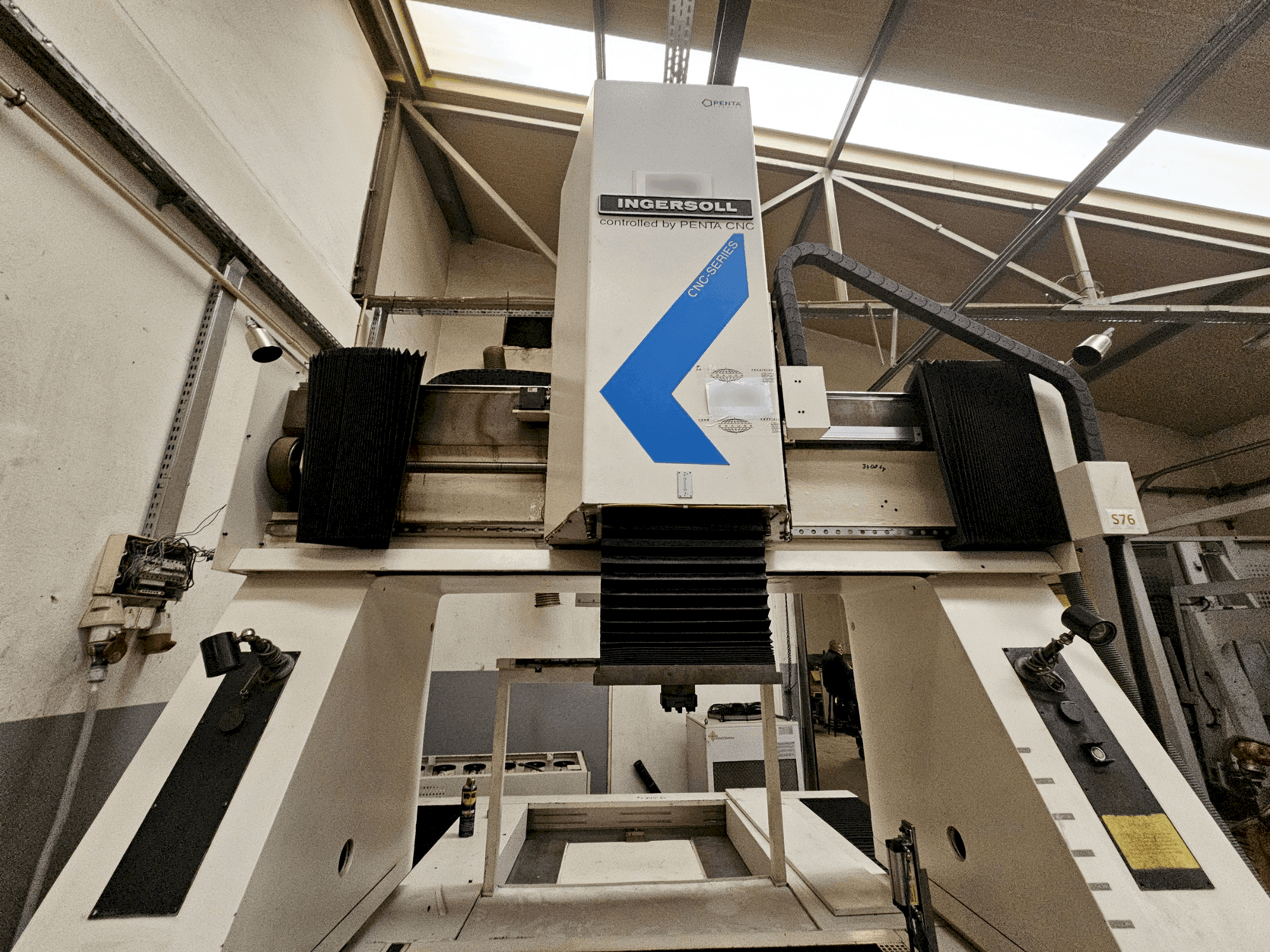

Front view of INGERSOLL IG1300 PENTA  machine
Front view of INGERSOLL IG1300 PENTA  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

INGERSOLL IG1300 PENTA

Photo Gallery
An SVG of an eye

INGERSOLL - IG1300 PENTAPL-EDM-ING-2017-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Machine Tools
  • INGERSOLL IG1300 PENTA (2017) Erosion machine
Show in original language

This INGERSOLL IG1300 PENTA (2017) Erosion machine was refurbished by PENTA in 2017. Operated by a BECKHOFF PENTA CNC Control it has 4-axes (X = 900mm / Y = 690 mm / Z = 550 mm / C = 360 degress). With table dimensions of 1150 x 950 mm it can operate with a table load of max. 4000 kg. It is still under power, in very good condition and can be inspected at any time.

Overview

  • brand: INGERSOLL
  • year: 2017
  • MODEL: IG1300 PENTA
  • application type: EDM
  • Location: Poland
  • machine type: Die-Sinking EDM Machine
  • availability: Sold
  • control unit brand: BECKHOFF

Technical Information - INGERSOLL IG1300 PENTA

General Data

  • Measurements width: 3030 mm
  • Measurements depth: 4900 mm
  • Measurements height: 3400 mm

Control Unit

  • Model: PENTA CNC
  • Brand: BECKHOFF

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 900 mm
  • Y-AXIS Movement: 690 mm (to tool changer 1240 mm)
  • Z-AXIS Movement: 550 mm

Table

  • Outer length: 1150 mm
  • Outer width: 950 mm
  • Number of tslots: 12 x 12 H8
  • Dielectic level: 1700 l
  • Table load: 4000 kg

    Additional Equipment

    • - Dielectric tank capacity: 1700 l
    • - 3R tool system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Z axis: 550 mm
        • - C axis: 360 degrees
        • - Generator power: 120a (penta)
      • Qualitative Machine Benefits:
        • - Rebuilt by penta in 2017 and serviced on an ongoing basis

      Extra information

      • - Full documentation available. Ready for tests.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
