JOBS JoMach 243

Photo Gallery

JOBS - JoMach 243CZ-MIL-JOB-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

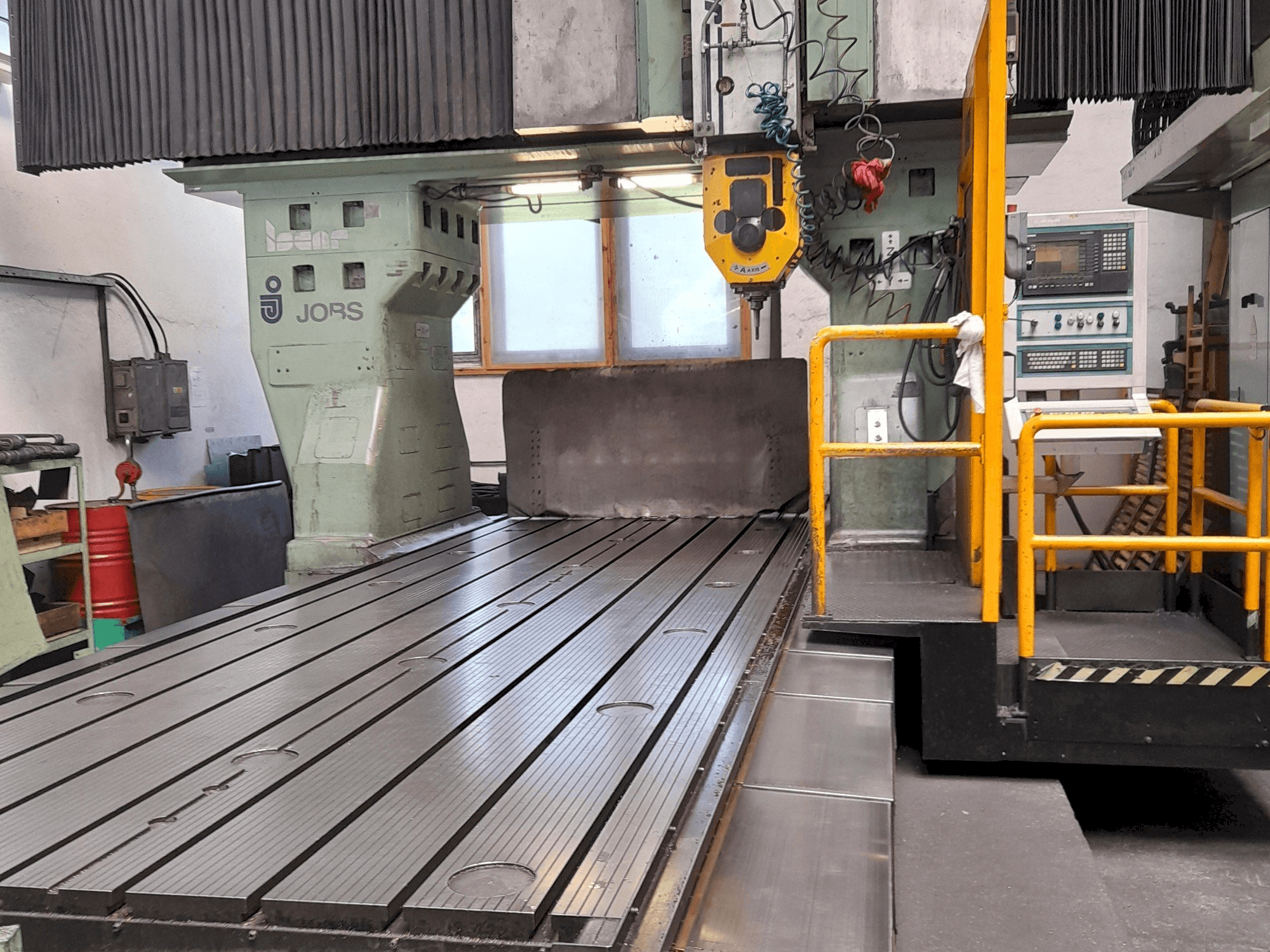

JOBS JoMach 243 Milling Machine

This JOBS JoMach 243 Milling Machine was manufactured in Italy in 1999. It is operated through a Siemens Sinumerik 840 D control unit. This 5 axis machine can work with a spindle speed range 15-4000 rpm. The twist head was reconditioned in 2007.

Overview

brand: JOBS
year: 1999
MODEL: JoMach 243
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - JOBS JoMach 243

General Data

Machine weight: 45050 kg

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 15 - 4000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 4500 mm
Y-AXIS Movement: 2700 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 6500 mm
Outer width: 2000 mm
Number of tslots: 8
Distance between: 250 mm
Table load: 10000 kg/m2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns 2320 mm
- - Distance between cross-rail and table 1635 mm
- - Max. Table load
- - Feedrate x/y axis 16. 000 mm/min
- - Feedrate z axis 12. 000 mm/min
- - Auxiliary electrospindle 200-16000 rpm
- - Main motor power 39 kw
- - Continuous indexing twist head: c axis 360 deg. , a axis +/- 110 degree
Qualitative Machine Benefits:
- - In good condition, regularly maintained.
- - Twist head reconditioned in 2007
- - 5 axis milling machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
