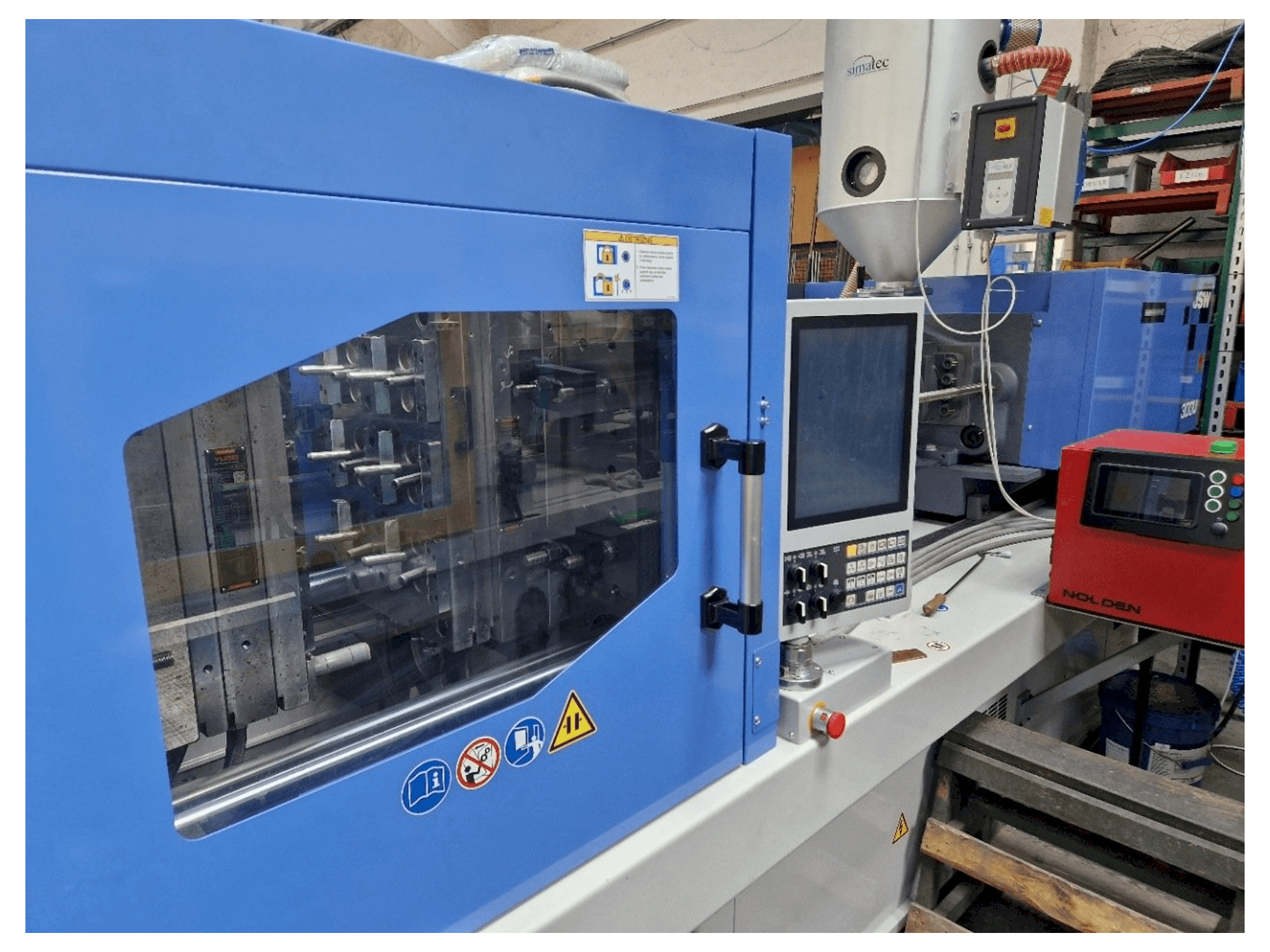

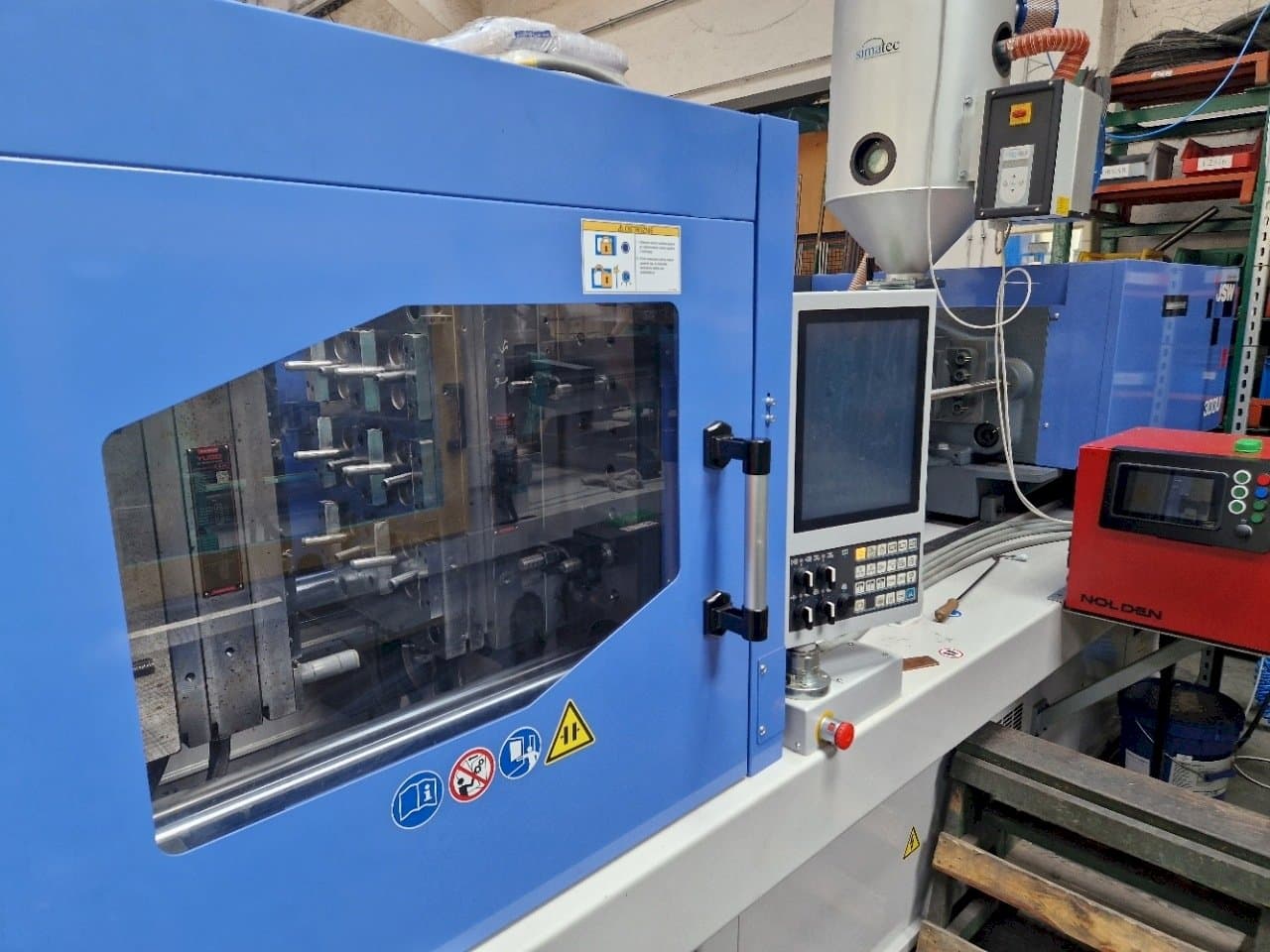

JSW J180ADS-300U Injection Moulding Machine

This JSW J180ADS-300U Injection Moulding Machine was made in Japan in the year 2021 and has 1586 hours. It is equipped with a JSW SYSCOM 5000. 15" LCD screen. The machine has a clamping force of 1800 kN and a screw diameter of 40 mm.

Overview

brand: JSW
year: 2021
MODEL: J180ADS-300U
production hours: 1586
application type: Injection Moulding
Location: Poland
machine type: Injection Moulding Machines
availability: Sold
control unit brand: JSW

Technical Information - JSW J180ADS-300U

General Data

Measurements width: 5700 mm
Measurements depth: 1410 mm
Measurements height: 1790 mm
Machine weight: 7700 kg

Control Unit

Brand: JSW
Model: SYSCOM 5000. 15" LCD screen

Injection Unit

Screw diameter: 40 mm
Shot weight: 226
Stroke volume: 180 mm CM³
Screw speed: 400 rpm

Clamping unit

Clamping force: 1800 kn
Opening stroke: 470 mm
Max open daylight: 1070 mm
Distance between bars: 560 x 560 mm
Mould height min: 200 mm
Mould height max: 600 mm
Size of mold platens: 810 x 780 mm
Ejector stroke: 130 mm
Ejector force for / back: 34.3 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection unit:
- - 8 cylinder heating zones
- - Injection capacity (gp-ps): 206 g
- - Injection speed: 240 mm/s
- - Injection rate: 301 cm3/s
- - Reinforced screw type lsp ii hp geometry
- - Closing nozzle in injection unit
- - Ejector plate protection
- - Pneumatic core control. 1-fold
- - Blow-off
Qualitative Machine Benefits:
- - Euromap 67
- - Hydraulic core 1x moving side
- - Hydraulic unit for cores type 24l
- - Rotameter 8 zones 10l/min - 2 pieces

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
