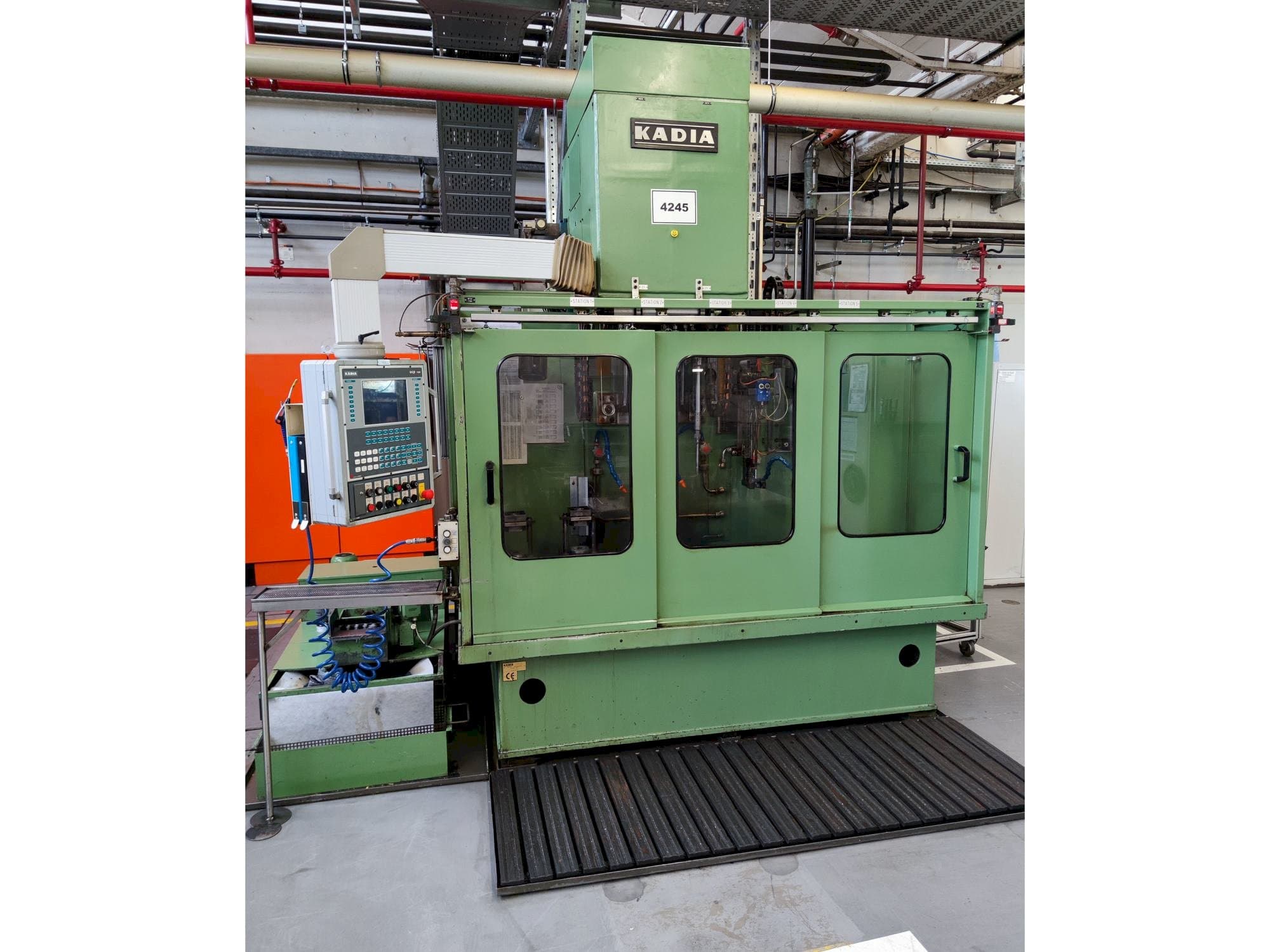

Front view of KADIA 2PH 60/350 T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KADIA 2PH 60/350 T

Photo Gallery

KADIA - 2PH 60/350 TDE-OTH-KAD-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kadia 2PH 60/350 T Vertical Honing machine

Kadia 2PH 60/350 T Vertical Honing machine was manufactured in the year 1998 in Germany. It is equipped with a KADIA UCP 1500 control unit. The machine has a spindle speed of 1400 rpm.

Overview

brand: KADIA
year: 1998
MODEL: 2PH 60/350 T
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Technical Information - KADIA 2PH 60/350 T

General Data

Machine weight: 4500 kg

Control Unit

Model: UCP 1500

Main drive

Spindle speed range: 1400 1/MIN
Spindle motor power: 3 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Range of application: vertical honing deburring measuring and testing

Technical Machine Benefits

Set-up length: 4. 0 m, set-up width: 3. 5 m, set-up height: 3. 2 m
Transport weight: 6000 kg
Hydraulic unit: 400 kg, coolant system: 600 kg
Air requirement: max. 1. 2 m3/h
Total connected load: approx. 21 kva, total power requirement: 18 kw
Voltage: 230/400 v
Spindle motors: quantity: 2 st type: sew dtf100l4th max. Speed: 1400 min-1 power: 3 kw current: 11. 4 / 6. 6 a
Coolant pump: type: brinkmann te143/200/1001/min speed: 2850 min-1 power: 1,5 kw current: 6. 1 / 3. 5 a
Brush unit: type: sew dt90l8/4 speed: 700/1400 min-1 power: 0,44/0,55 kw current: 2. 1 / 2. 2 a
Hydraulic pump: type: siemens 1laf7163-4aa61 speed: 1460 min-1 power: 11 kw current: 21,5 a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
