➤ Used KAFO KFO 620 5AX For Sale | gindumac.com

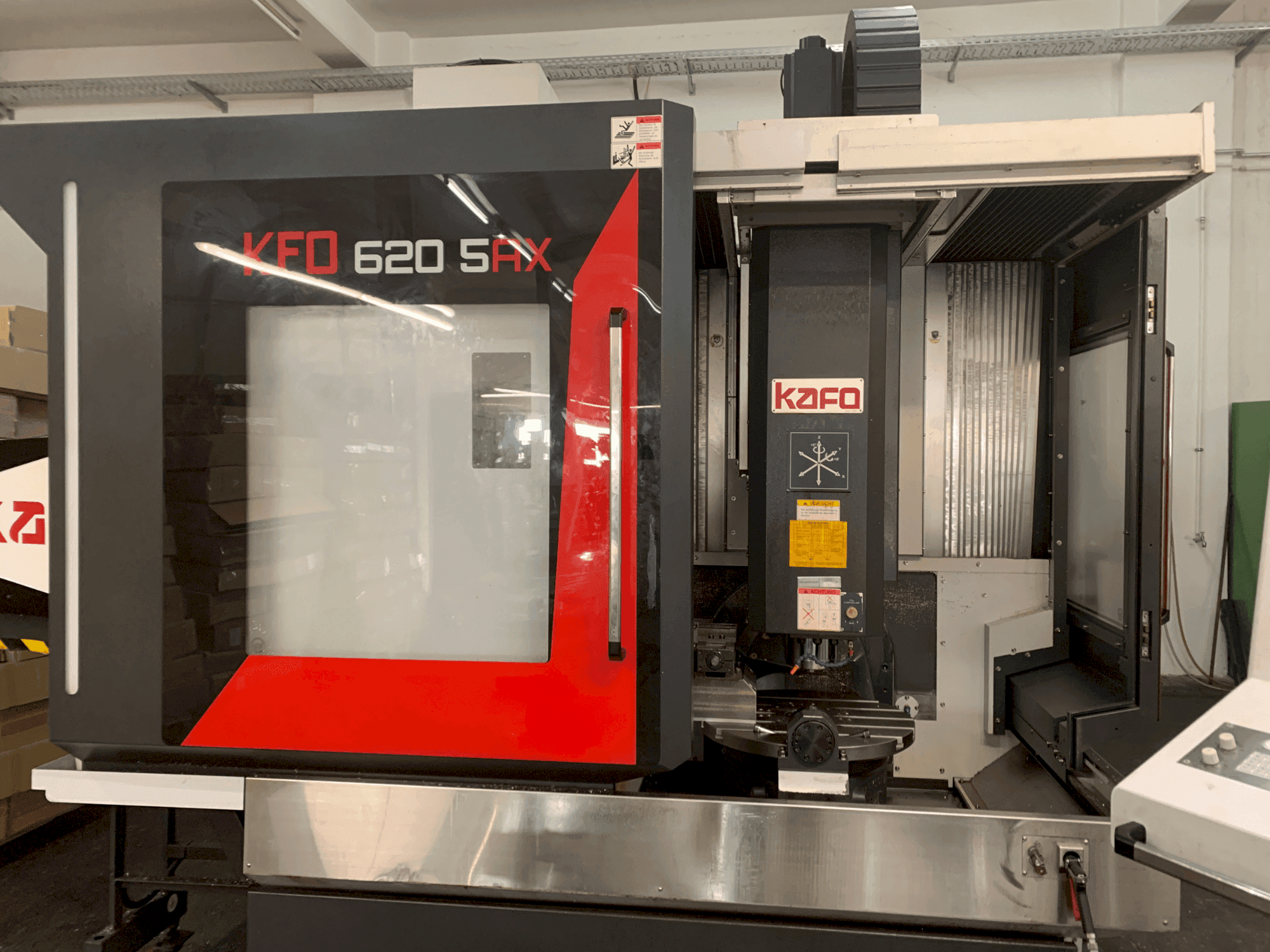

This 5-axis KAFO KFO 620 5AX was manufactured in 2018, featuring a robust Heidenhain iTNC 530 control system. It boasts a spindle speed up to 12,000 rpm, a rotary table diameter of 650 mm, and can handle workpiece weights up to 300 kg. Equipped with a chip conveyor and a tool magazine with 24 slots, this vertical machining centre is ideal for complex machining tasks. If you are looking to get high-quality milling capabilities consider the KAFO KFO 620 5AX machine we have for sale. Contact us for more information.

Overview

brand: KAFO
year: 2018
MODEL: KFO 620 5AX
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - KAFO KFO 620 5AX

General Data

Measurements width: 4210 MM
Measurements depth: 2325 MM
Measurements height: 3108 MM
Machine weight: 10500 KG

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 10 - 12000 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 620 MM
X-AXIS Feed Force: 10 m/min
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 520 MM
Y-AXIS Feed Force: 10 m/min
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 460 MM
Z-AXIS Feed Force: 10 m/min
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece drm: 520 mm
Workpiece z: 330 mm
Workpiece weight: 300 kg

Table

Table load: 300 kg

Media

Chip conveyor: Yes

Additional Equipment

- Documentation/manual
- Continuously adjustable speed
- Handwheel
- Extractor
- Signal light

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 120 nm
- - Rated power: 45 kva
- - Diameter of the rotary table: 650 mm
- - Coolant supply: 20 bar

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
