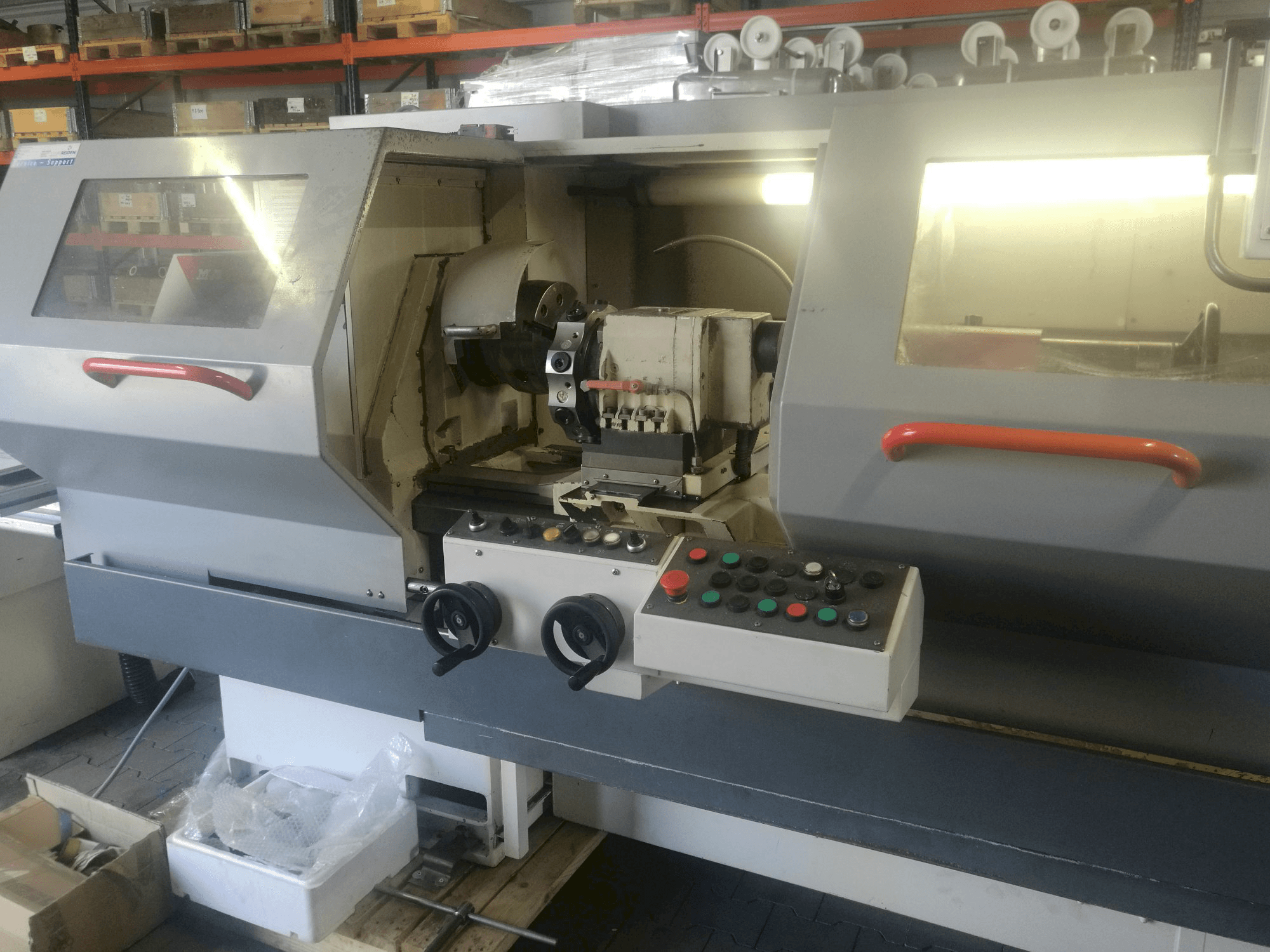

Front view of KOVOSVIT MAS MT 54 CNC Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MT 54 CNC

Photo Gallery

KOVOSVIT MAS - MT 54 CNCPL-TUR-KOV-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MT 54 CNC Lathe

This KOVOSVIT MAS MT 54 CNC Lathe from 2005 was manufactured in Czech Republic and is controlled through a Heidenhain Control unit. This very precise machine counts with a spindle speed up to 3000 rpm. 8 pieces of toolholders are included as additional equipment.

Overview

brand: KOVOSVIT MAS
year: 2005
MODEL: MT 54 CNC
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MT 54 CNC

General Data

Measurements width: 2538 mm
Measurements depth: 3228 mm
Measurements height: 1795 mm
Machine weight: 2930 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3000 rpm 1/MIN
Spindle motor power: 17 kW
Spindle bore: 82 mm

Movement

X-AXIS Movement: 270 mm
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 865 mm
Z-AXIS Feed Force: 10 kN
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece weight: 600 kg

Turret

Number of turrets: 8

Tail Stock

Pinol diameter: 80 mm
Pinol way: 200 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
