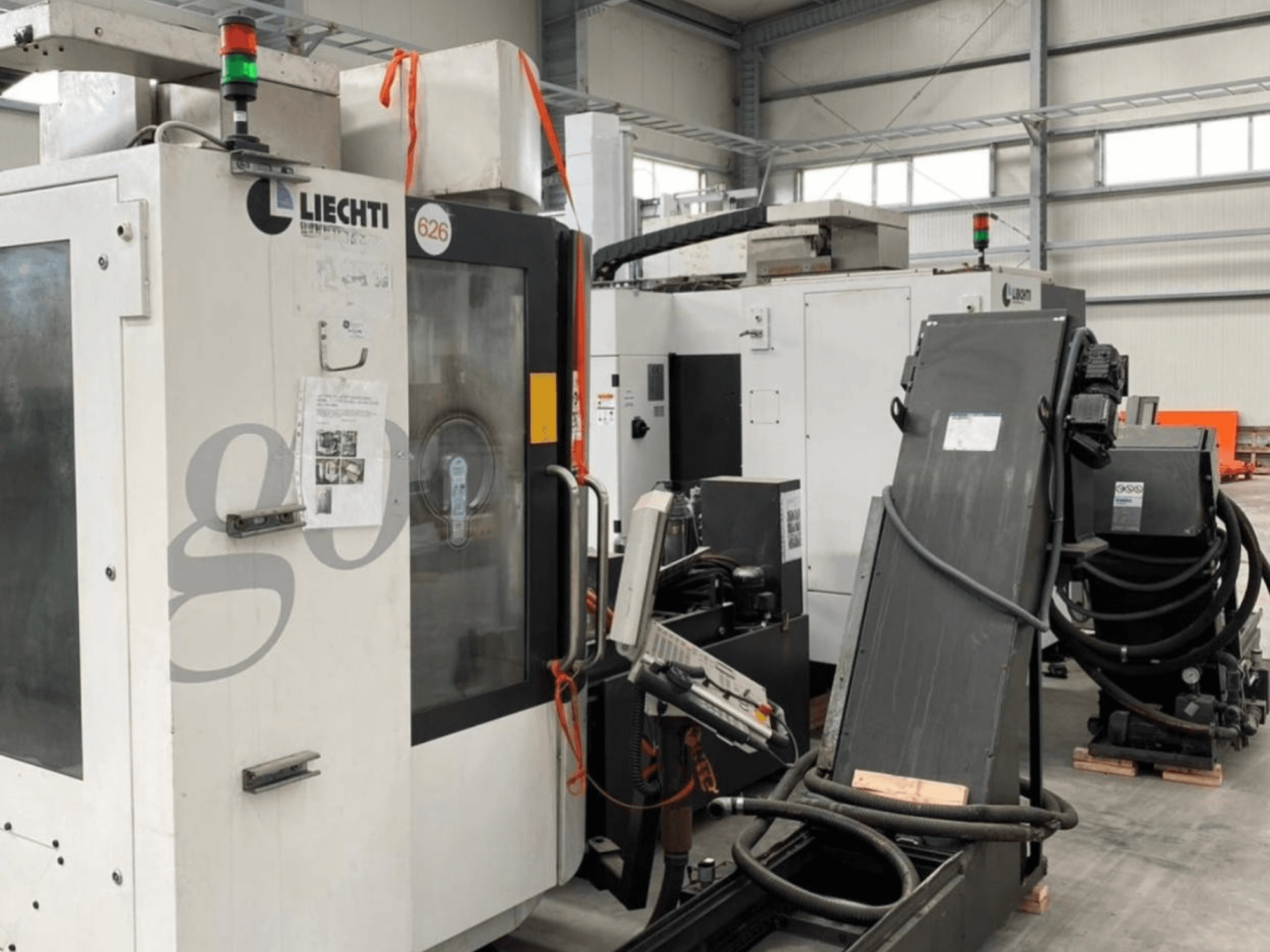

This 5-axis Liechti go-Mill 350 was manufactured in 2009. It features a maximum blade length of 350 mm, with an optional configuration supporting up to 500 mm. The spindle speed reaches 20,000 rpm, and it includes a tool changer with 30 or 60 positions. If you are looking to get high-quality turbine blade processing capabilities, consider the Liechti go-Mill 350 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Liechti
- year: 2007
- MODEL: go-Mill 350
- application type: Milling
- Location: Moldova
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Liechti go-Mill 350
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 586 mm
- Y-axis Travel: 449 mm
- Z-axis Travel: 637 mm
Technical Specification
- Spindle Power: 36 kW
- Spindle Speed: 20000 RPM
Additional Information
Quantity: 2 units available
Work capacity: Max blade length 350 mm (standard), up to 500 mm incl. workholding; max blade swing diameter 350 mm
Travels: A 360° continuous; B -45° to +101°
Spindle: taper HSK-A63
Tool changer: 30 or 60 positions
Rapid feed (X/Y/Z): 866 ipm
Control/feedback: Heidenhain iTNC 530 CNC; Heidenhain scales
Coolant: Through-spindle coolant
Recommended impeller diameter: 9.8"
Footprint: approx. 6.4 × 4.3 m
Optional configuration: Turning capability up to 1,000 rpm
Additional equipment
Chip conveyor and coolant system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
