➤ Used MAKA MK 7s Machining Center For Sale | gindumac.com

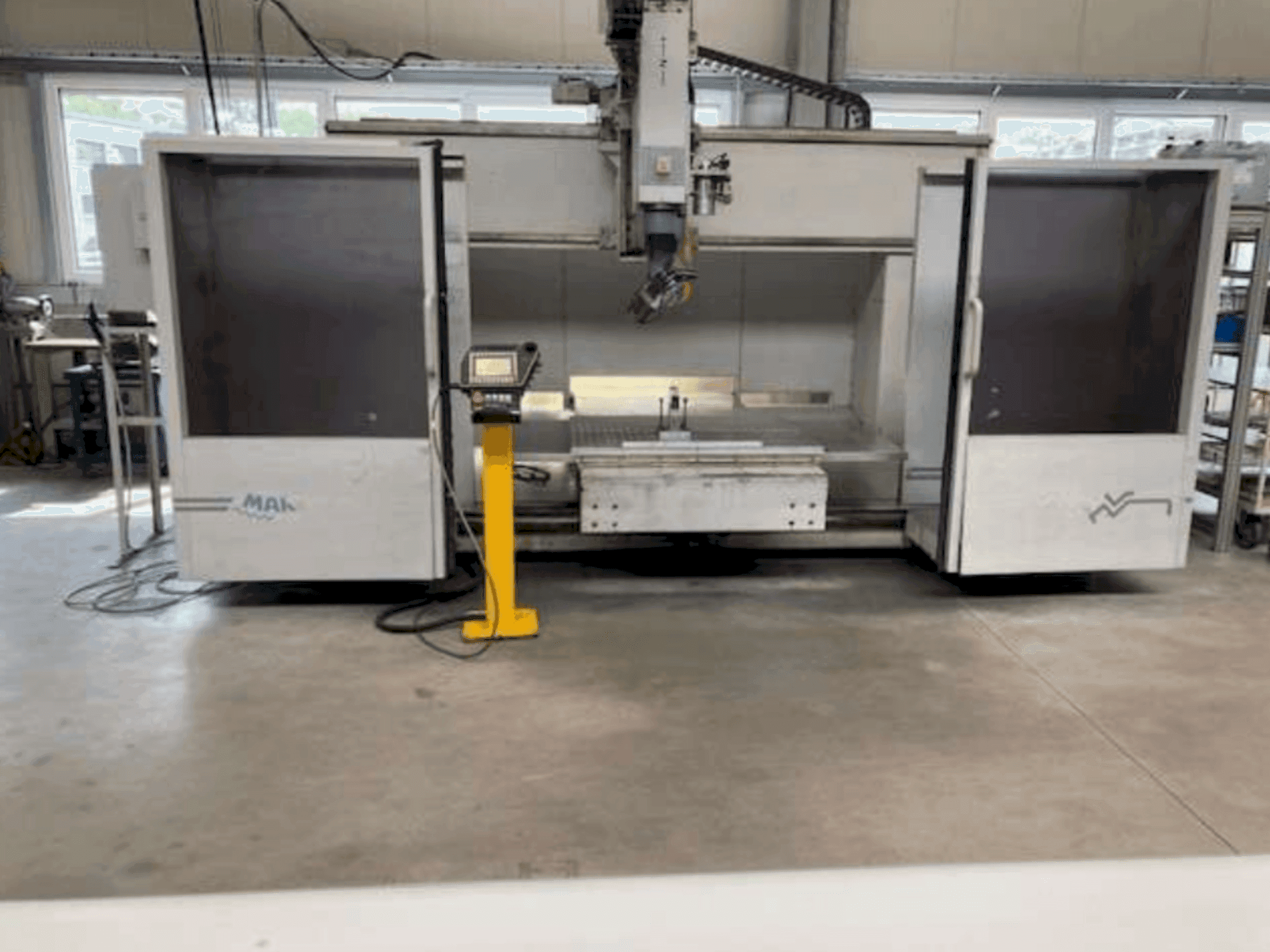

This 5-axis MAKA MK 7s was manufactured in 2007. It features a robust 7000 kg frame, operates on 400V/50Hz, and has a rated power of 18.5 kW. The machine includes a BWO 910 RC control system and a versatile HSK 63F milling spindle. Its linear tool magazine holds tools and saw blades, complemented by an aluminum surface table measuring 2000 x 1000 mm. Consider the opportunity to buy this MAKA MK 7s horizontal machining centre. Contact us for more information.

Overview

brand: MAKA
year: 2007
MODEL: MK 7s
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre

Technical Information - MAKA MK 7s

General Data

Measurements width: 3500 mm
Measurements depth: 6000 mm
Measurements height: 3400 mm
Machine weight: 7000 kg

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 10 kW
Tool taper: HSK 63F
Number of axis: 5

Movement

X-AXIS Movement: 2900 mm
Y-AXIS Movement: 1740 mm
Z-AXIS Movement: 1050 mm

Tools

Max weight: 3 kg

Additional Information

A-axis: +- 100 degrees
C-axis: +- 270 degrees
Verfahrwege: X-2900 mm / Y-1740 mm / Z-1050 mm / A +- 100 Grad / C +- 270Grad.

Table size: 2000 x 1000 mm
Adapter aluminum plates: 1200 x 980 mm, 40 x 40 mm grid, m12 thread
Tool cooling: minimum quantity lubrication
Tool magazine: linear tool magazine with 5 pockets for tools up to 60 mm in diameter and max. 130 mm in length
Saw blade pocket: 1 pocket for saw blades up to 175 mm in diameter
The last series was processed using aluminum profiles.

Operating voltage: 400V / 50 Hz Rated current: 50 A Rated power: 18.5 kW Operating pressure: 6 bar Pneumatic pressure: 6 bar

Additional equipment

Maka protective enclosure, open at the top and with two manually opening doors at the front

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
