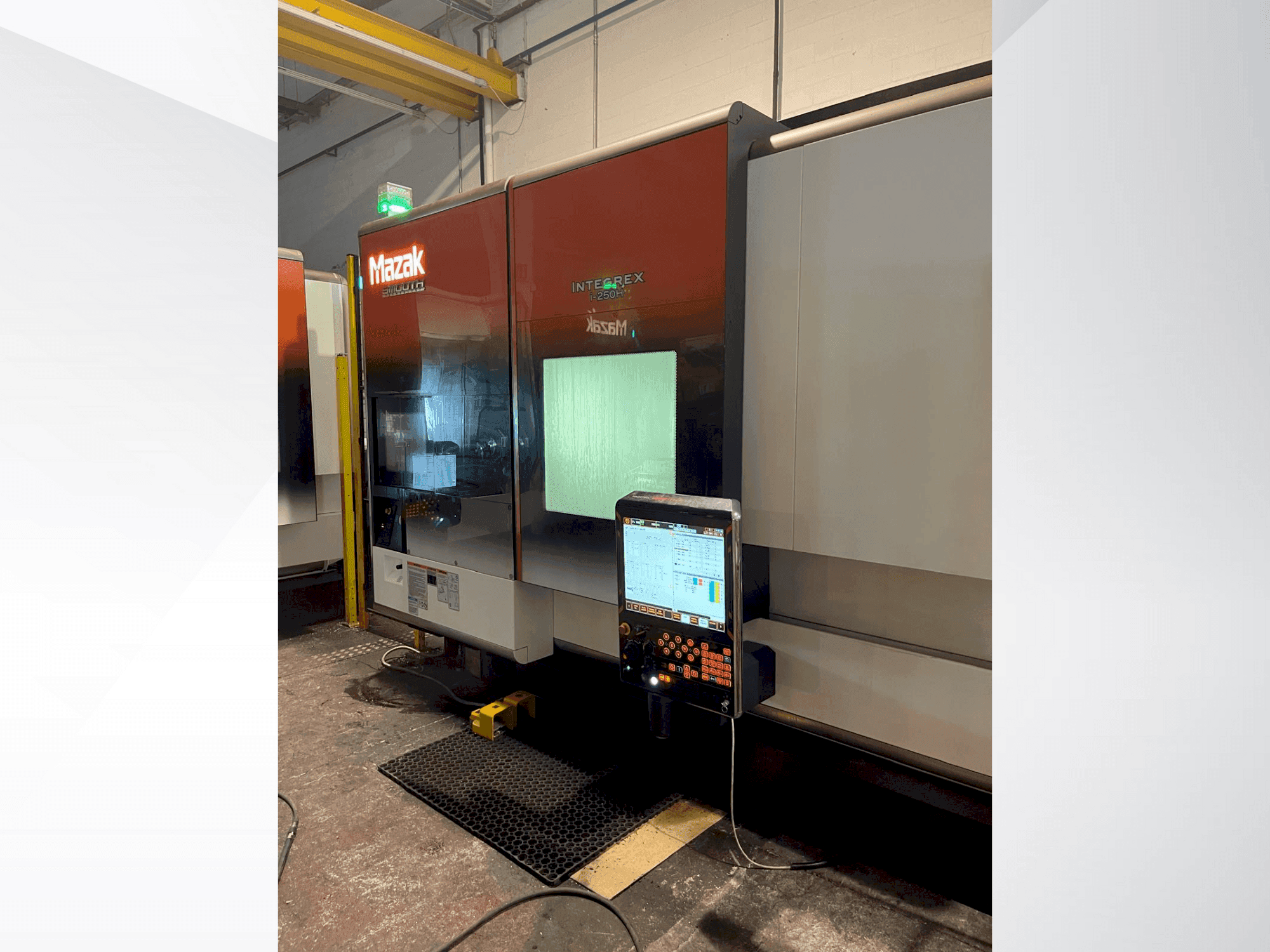

Front view of Mazak Integrex i-250H  machine

Mazak - Integrex i-250HIT-TUR-MAZ-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-Axis Mazak Integrex i-250H lathe was manufactured in 2020. It features a maximum swing and machining diameter of 670mm, with a bar work capacity of 65mm and a chuck size of 203mm. The main spindle operates at 5000rpm, while the milling spindle, capable of holding 38 tools, reaches up to 20,000rpm. With B-axis movement of 240º and X, Y, Z travels of 695mm, 300mm, and 1000mm respectively, this machine offers extensive versatility and precision. Buy this Mazak Integrex i-250H lathe for advanced turning and milling operations. Contact us for further details.

Overview

  • brand: Mazak
  • year: 2020
  • MODEL: Integrex i-250H
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Sold

Technical Information - Mazak Integrex i-250H

Main drive

  • Number of spindles: 2
  • Spindle speed range: 5000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 695mm
  • Y-AXIS Movement: 300mm
  • Z-AXIS Movement: 1000 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum swing 670mm
      • - Maximum machining diameter 670mm
      • - Maximum bar work capacity 65mm
      • - Chuck size: 203mm
      • - Miling spindle speed: 20. 000 rpm
      • - Milling spindel tool capacity: 38
      • - Milling spindle b axis: 240º

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
