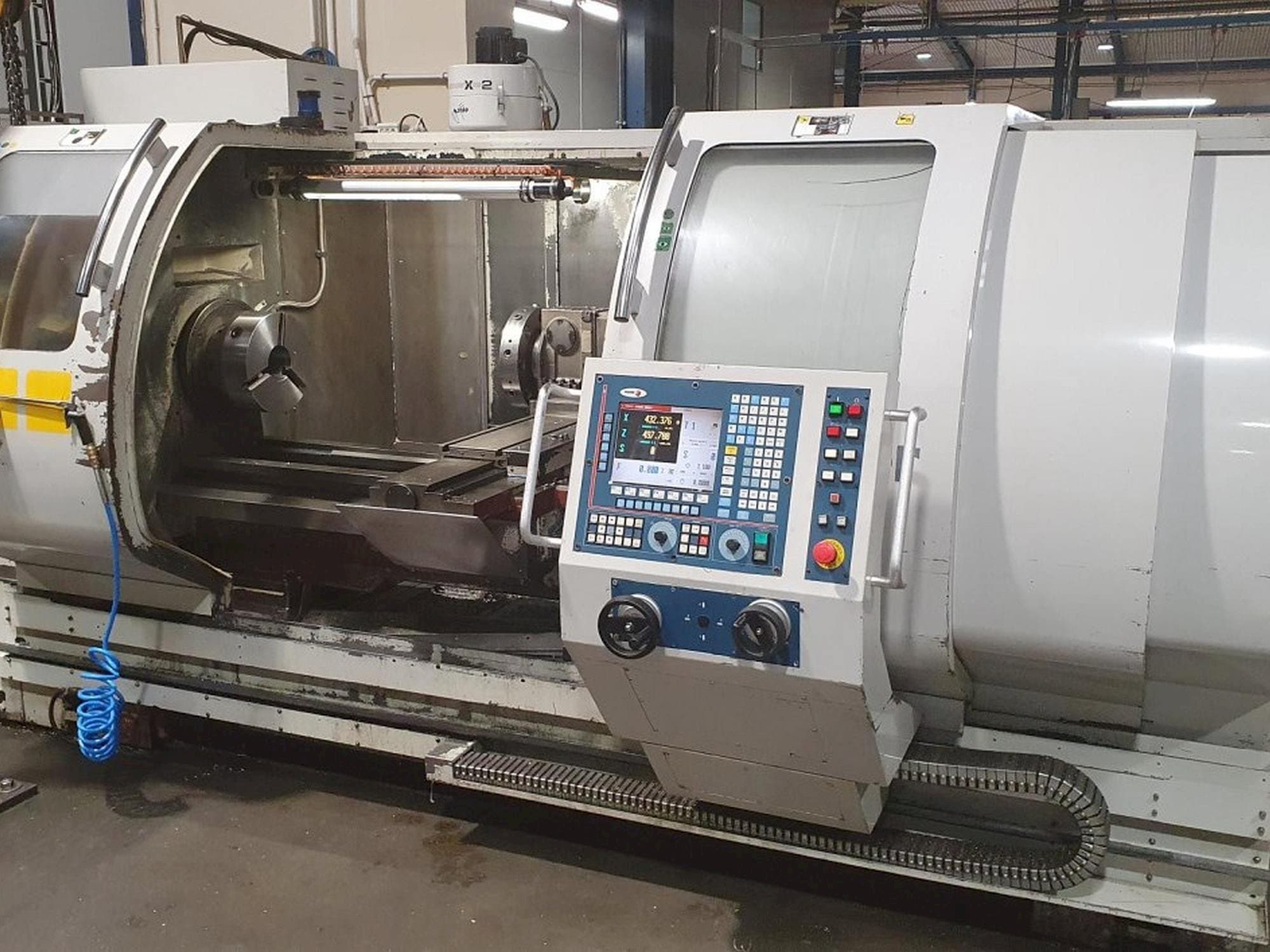

Front view of MICROCUT BNC-2280XL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MICROCUT BNC-2280XL

MICROCUT - BNC-2280XLPL-TUR-MIC-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MICROCUT BNC-2280XL Lathe

This MICROCUT BNC-2280XL Lathe was manufactured in the year 2005 in Taiwan. It is equipped with a Fagor 8055 control unit and has 2 axis. The machine has a spindle speed of 2500 rpm.

Overview

brand: MICROCUT
year: 2005
MODEL: BNC-2280XL
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - MICROCUT BNC-2280XL

General Data

Measurements width: 4190 mm
Measurements depth: 2245 mm
Measurements height: 2050 mm
Machine weight: 5000 kg

Control Unit

Model: 8055
Brand: FAGOR

Main drive

Spindle speed range: 2500 1/MIN
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter 570 mm
- - Max length of turning 2000 mm
- - Spindle passage 105,5 mm
- - Accessories included: 14 drill holders - boring, 10 knife holders
- - Chuck size 315 mm
- - Bar capacity 105. 5 mm
- - Swing 570 mm
Qualitative Machine Benefits:
- - The machine has a manually operated clamping device, it was replaced last year
- - The machine's gearbox is overhauled recently
- - Chip conveyor needs a general maintenance service
- - Last internal inspection: 06. 2023 - cleaning the cabinet, replacing filters, repairing the gearbox, greasing points for lubrication.
- - Last maintenance service 11. 2022 - cleaning the hydraulic system, replacing the lubrication tank, cleaning the drive belts and lubricating the gearbox, checking and cleaning the electrical system.
- - The machine in working condition, ready for test.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
