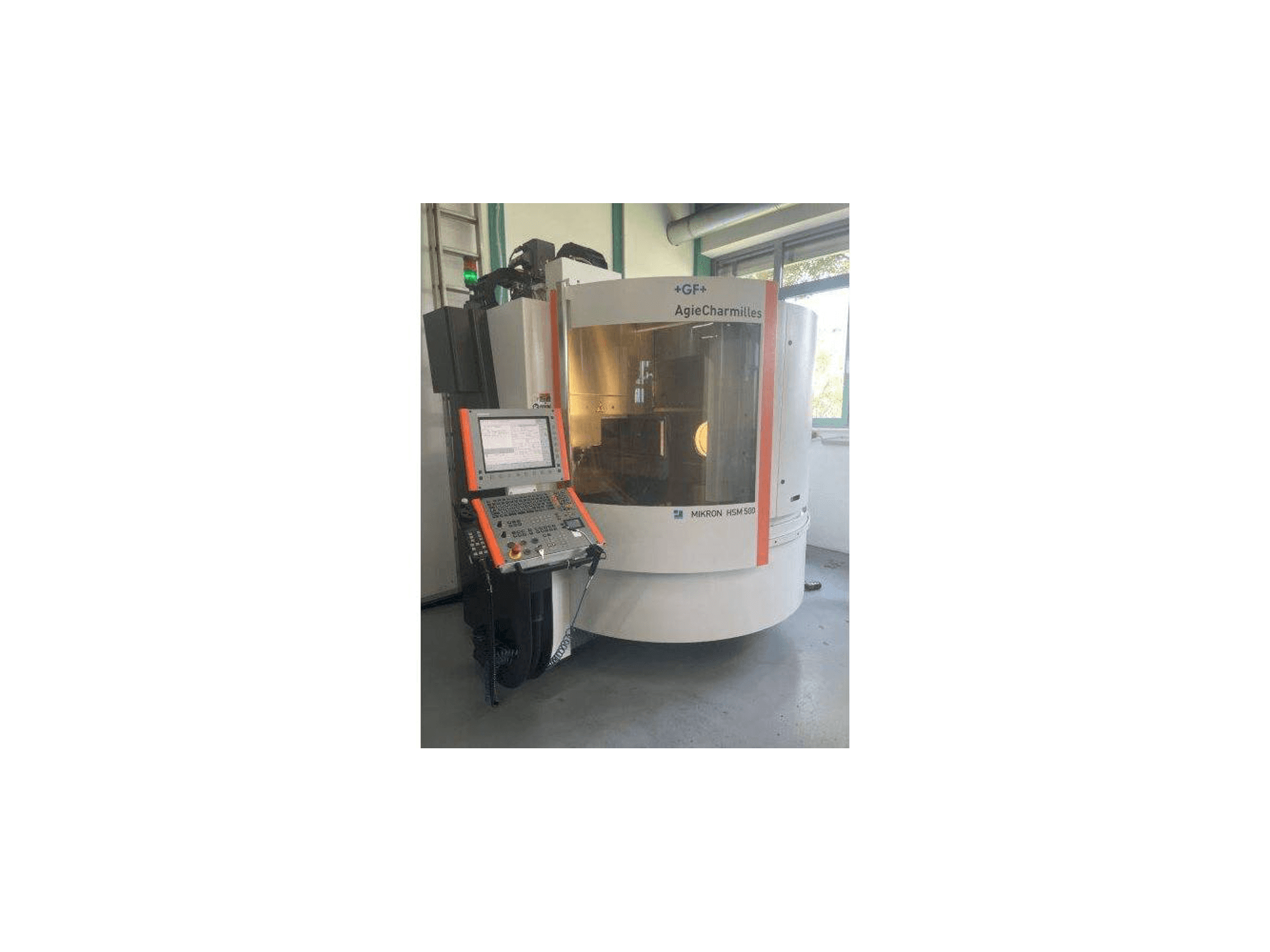

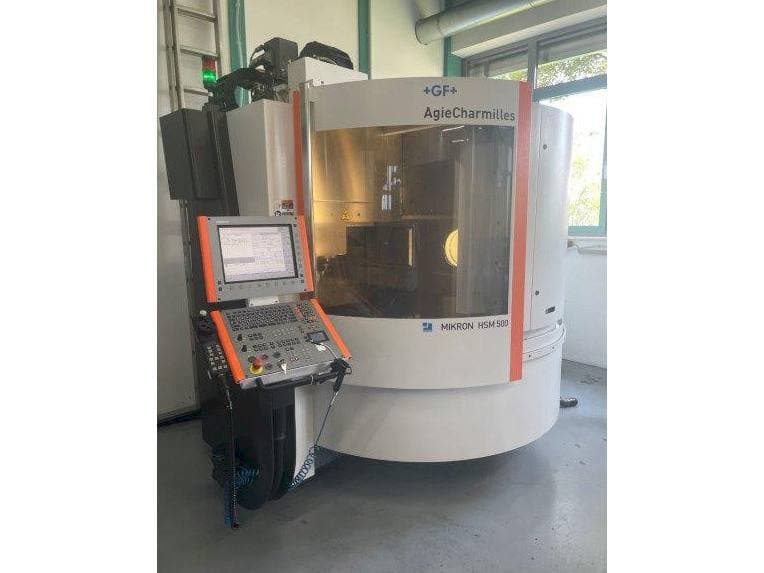

Mikron HSM 500 Milling machine

This Mikron HSM 500 Milling machine was made in 2010 and has 12778 hours, of which 9499 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 100-30000 rpm.

Overview

brand: MIKRON
year: 2010
MODEL: HSM 500
production hours: 12778
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON HSM 500

General Data

Measurements width: 2900 mm
Measurements depth: 2400 mm
Measurements height: 2700 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 100-30000 1/MIN
Spindle motor power: 10-12 kW
Tool taper: HSK E40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece x: 55mm
Workpiece y: 45mm

Table

Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measuring systems: m&h infrared receiver 91. 10-hdr

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
