- MIKRON UCP 710 Vertical machining center

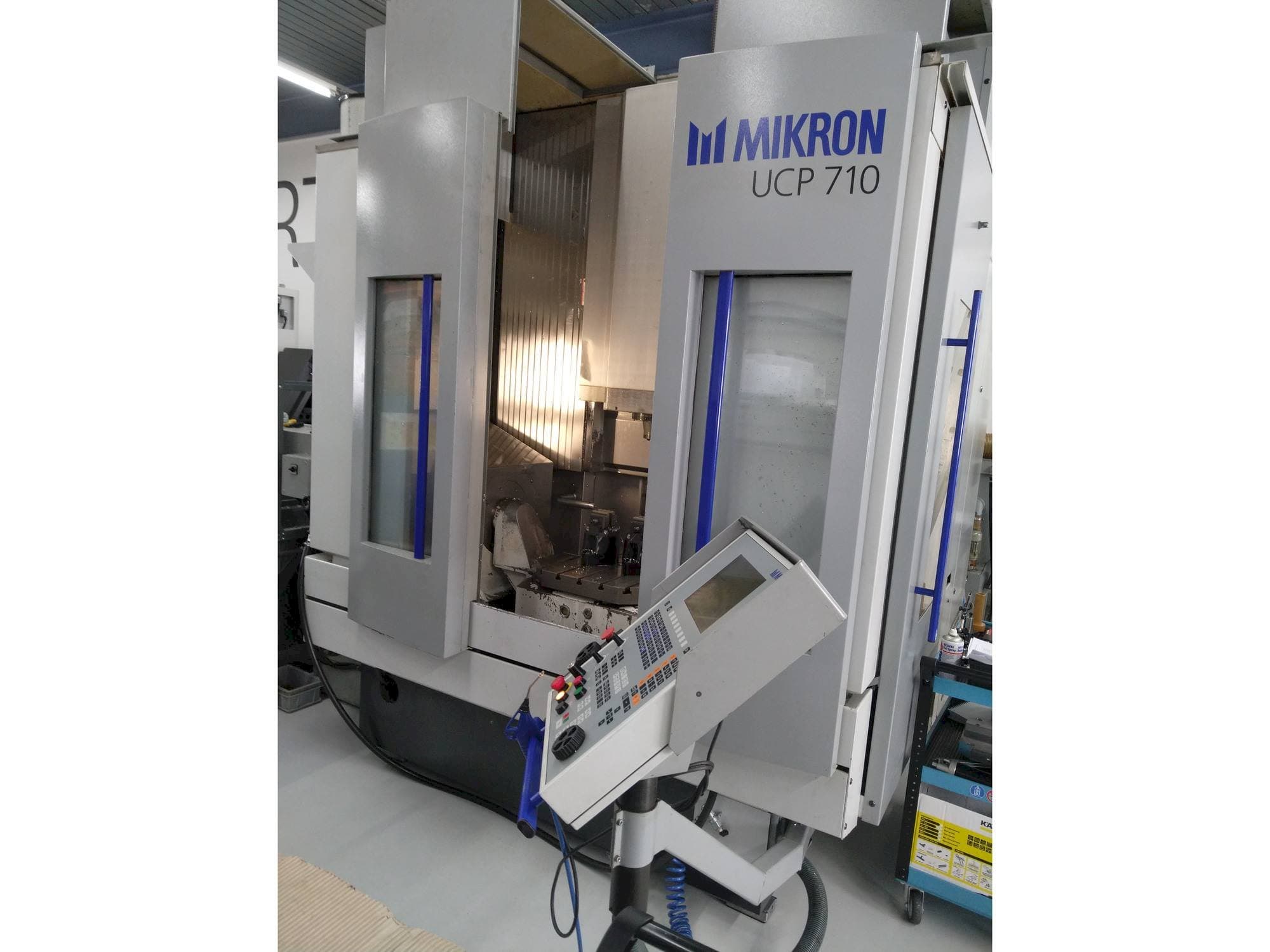

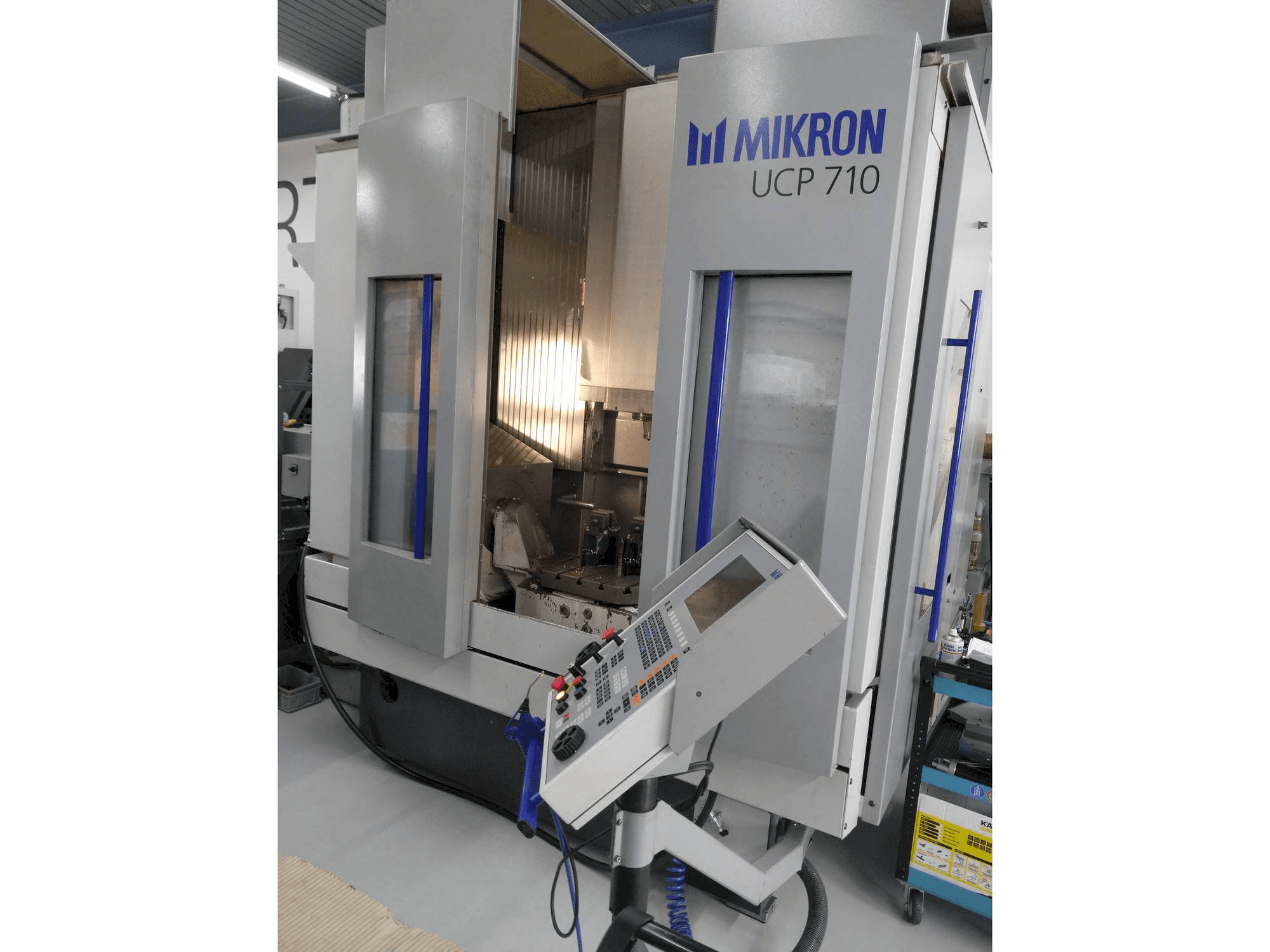

This MIKRON UCP 710 Vertical machining center was manufactured in the year 1999. The machine has a spindle speed of 20000 rpm and a HSK 63A tool taper. It is equipped with a HEIDENHAIN TNC 430 control. The UCP 710 is a 5-axis machining centre with swivel rotary table from Rückle, endless 4th axis and swivel range 5th axis -30°/+100°. It operates with a clamping surface of 630 x 630 mm. Due to regular maintenance the machine is in good condition with 79637 machine on hours and 15311 spindle hours.
Overview
- brand: MIKRON
- year: 1999
- MODEL: UCP 710
- production hours: 15311
- application type: Milling
- Location: Switzerland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - MIKRON UCP 710
General Data
- Machine weight: 9000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 430
Main drive
- Spindle speed range: 20000 1/MIN
- Tool taper: HSK 63A
- Number of axis: 5
Movement
- X-AXIS Movement: 710 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 500 mm
Table
- Outer length: 630 mm
- Outer width: 630 mm
Tools
- Max weight: 8 kg
- Max tool length: 300 mm
Additional Equipment
- - Large Pittrag production package with drum filter and wide chip conveyor
- - 40 bar inner cooling through spindle
- - Coolant device (Capacity 120 l / Flow rate approx. 92 l/min. at 2.2 bar
- - Tool changer (Tool diameter: 90 mm fully loaded / 140 mm partially loaded)
Additional Information
- Technical Machine Benefits:
- - Swivel rotary table (rückle) with clamping surface 630x630mm has endless 4th axis and swivel range 5th axis -30°/+100°
- - Chip-to-chip time according to vdi 2852: 7s
- - Tool change time: 5s
- - Max. Weight of all tools: 180 kg in drum magazine
- - Noise emission: sound power 75 db (a)
- Qualitative Machine Benefits:
- - Condition very well maintained (new bellows etc. )
- - Spindle hours: 15311, machine on hours: 79637
- - Tools and clamping devices are not included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
