MIKRON UCP600

Photo Gallery

MIKRON - UCP600NL-MIL-MIK-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

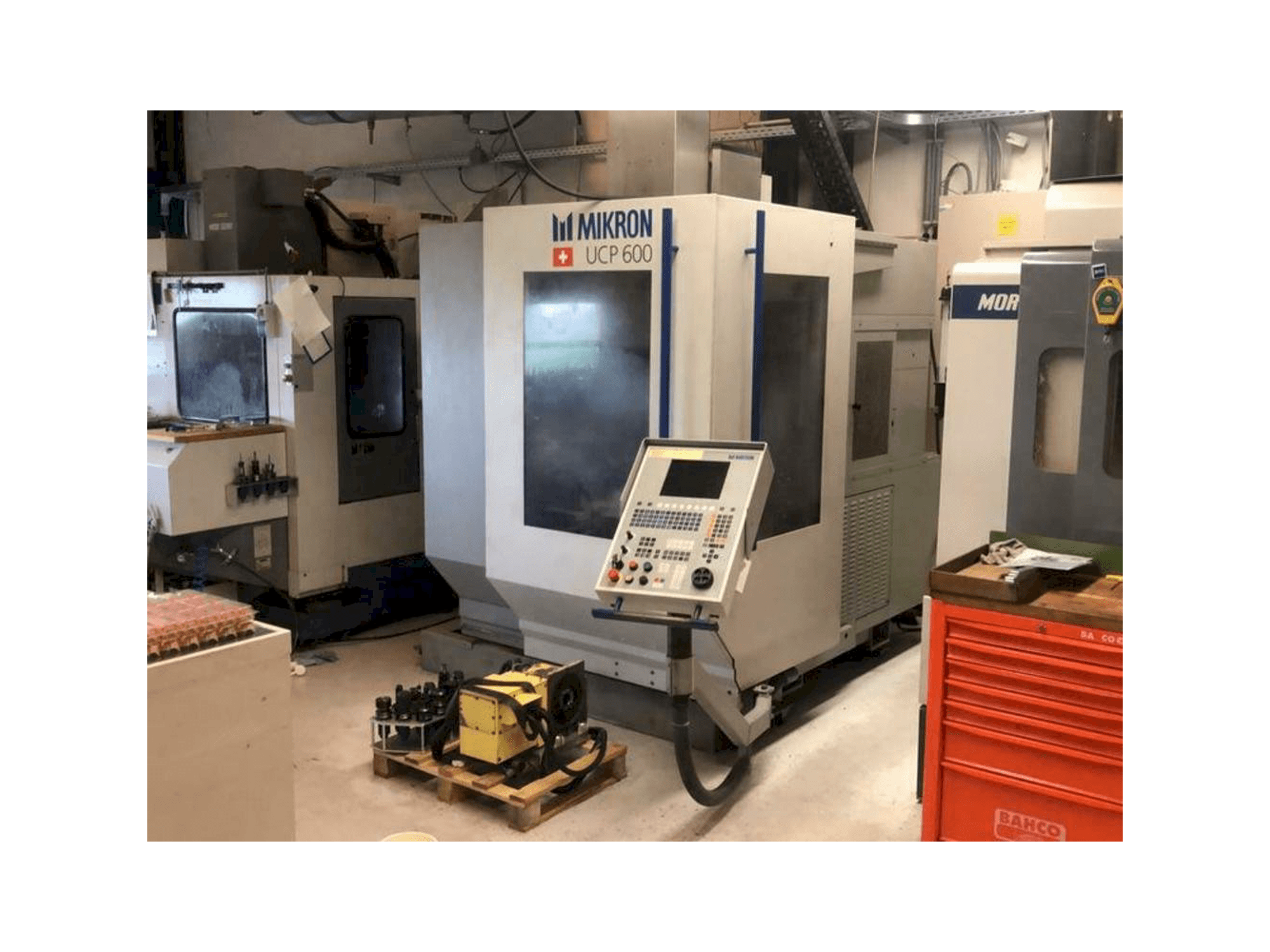

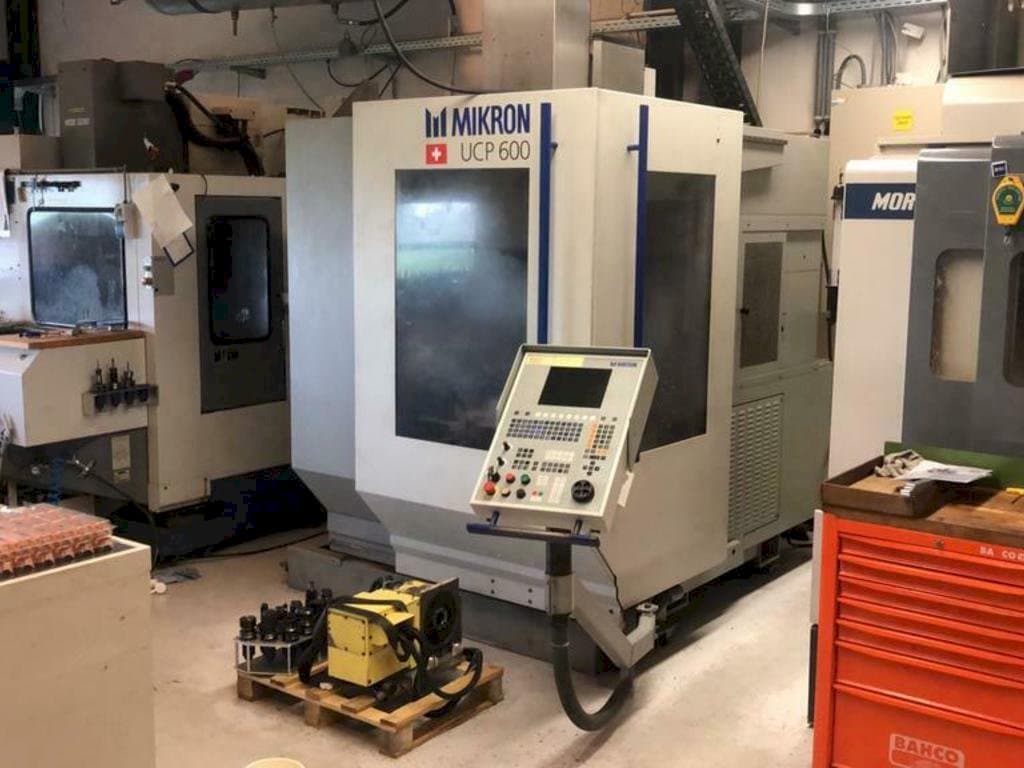

Mikron UCP600 Vertical Machine Center

This Mikron UCP600 Vertical Machine Center was manufactured in the year 2000. It has 13964 spindle hours. It operates through a Heidenhain 430 control. The 5 axis machine has a spindle speed up to 12000 rpm. It is under power for inspection, the machine moves smoothly and without noise, the spindle sounds like a new one, also at high speed. Additional tooling available.

Overview

brand: MIKRON
year: 2000
MODEL: UCP600
production hours: 13964
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP600

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Machine Weight: 7500 kg
Table Length: 850 mm
Table Width: 530 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 450 mm
Z-axis Travel: 450 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

5 axis simultaneous range 400x400x300
Chip transport, glass scales / encoders on all axes
Fast, high-precision machine, due to the construction method (epoxy granite cube frame where all rails are far apart and the rulers), it is possible to work tightly at a high speed throughout the day
Steptec spindle 12,000rpm sk40 13kw, spindle and electrical cabinet cooled
30 tool positions
New tool holders included (piece or 25)
Machine is under power for inspection
Machine moves smoothly and without noise
Spindle sounds like a new one
Mills beautifully tight

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
