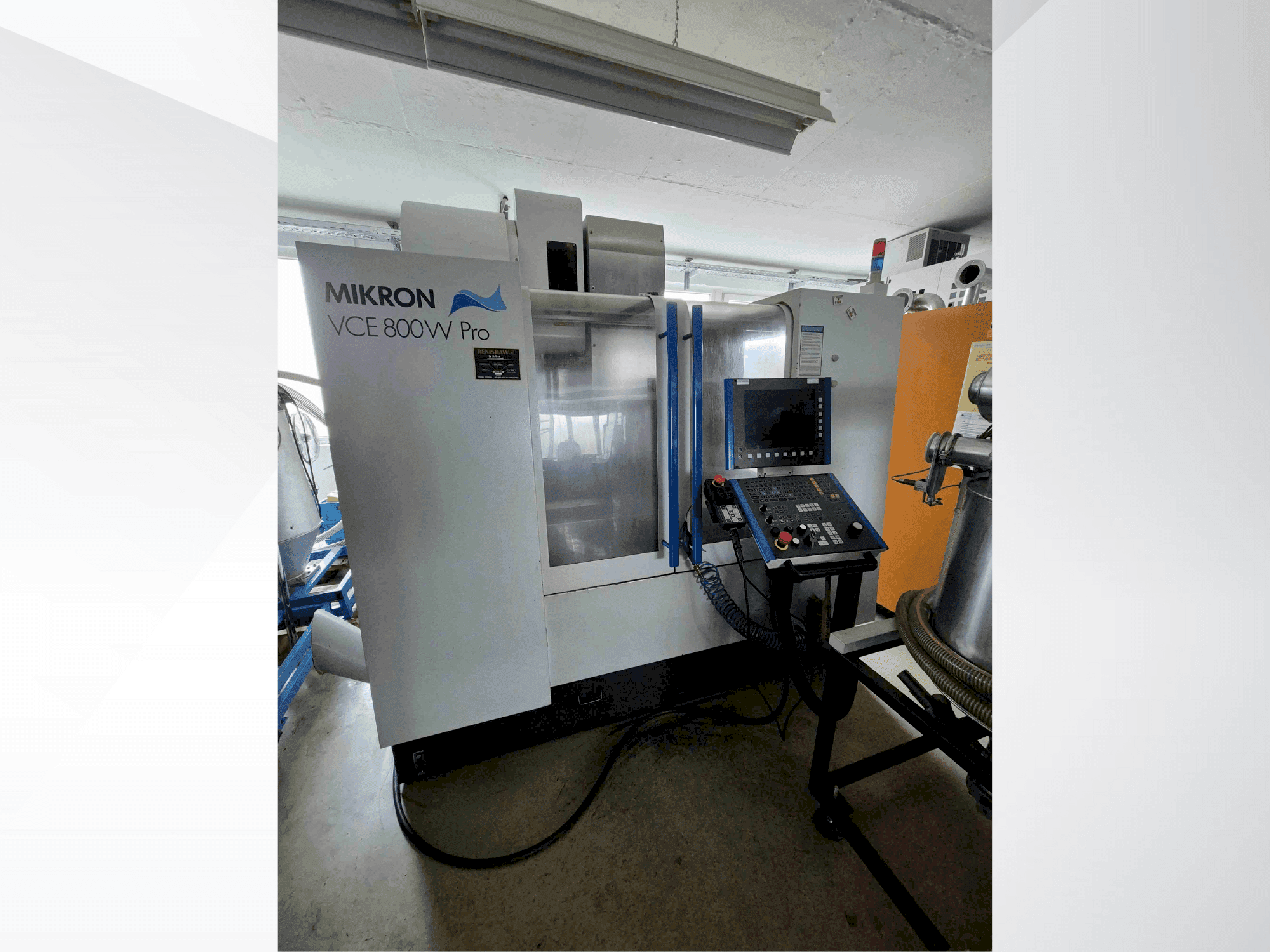

This 3-axis MIKRON VCE 800W Pro vertical machining center was manufactured in 2003. It features a robust tool changing system with a 24-slot capacity and a maximum table load of 1350 kg. The machine offers rapid traverse rates up to 24 m/min in X and Y, and 20 m/min in Z, ensuring efficient machining. If you are looking to get high-quality milling capabilities, consider the MIKRON VCE 800W Pro machine we have for sale. Contact us for more information.
Overview
- brand: MIKRON
- year: 2003
- MODEL: VCE 800W Pro
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCE 800W Pro
General Data
- Measurements width: 2550 MM
- Measurements depth: 3500 MM
- Measurements height: 2800 MM
- Machine weight: 6500 KG
Control Unit
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 3000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 860 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 560 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 600 mm
- Z-AXIS Rapid traverse: 20 m/min
Table
- Outer length: 1000 mm
- Outer width: 560 mm
- TSlots size: 18 mm
- Number of tslots: 5
- Table load: static - 1350 kg ; dynamic - 1100 kg
Additional Information
- Technical Machine Benefits:
- - Tool holder: iso-b-40 / din 69871
- - Tool changing system: 24-fold
- - T-slots (width/spacing): 18 x 100 mm
- - Coolant system capacity: 270 liters
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
