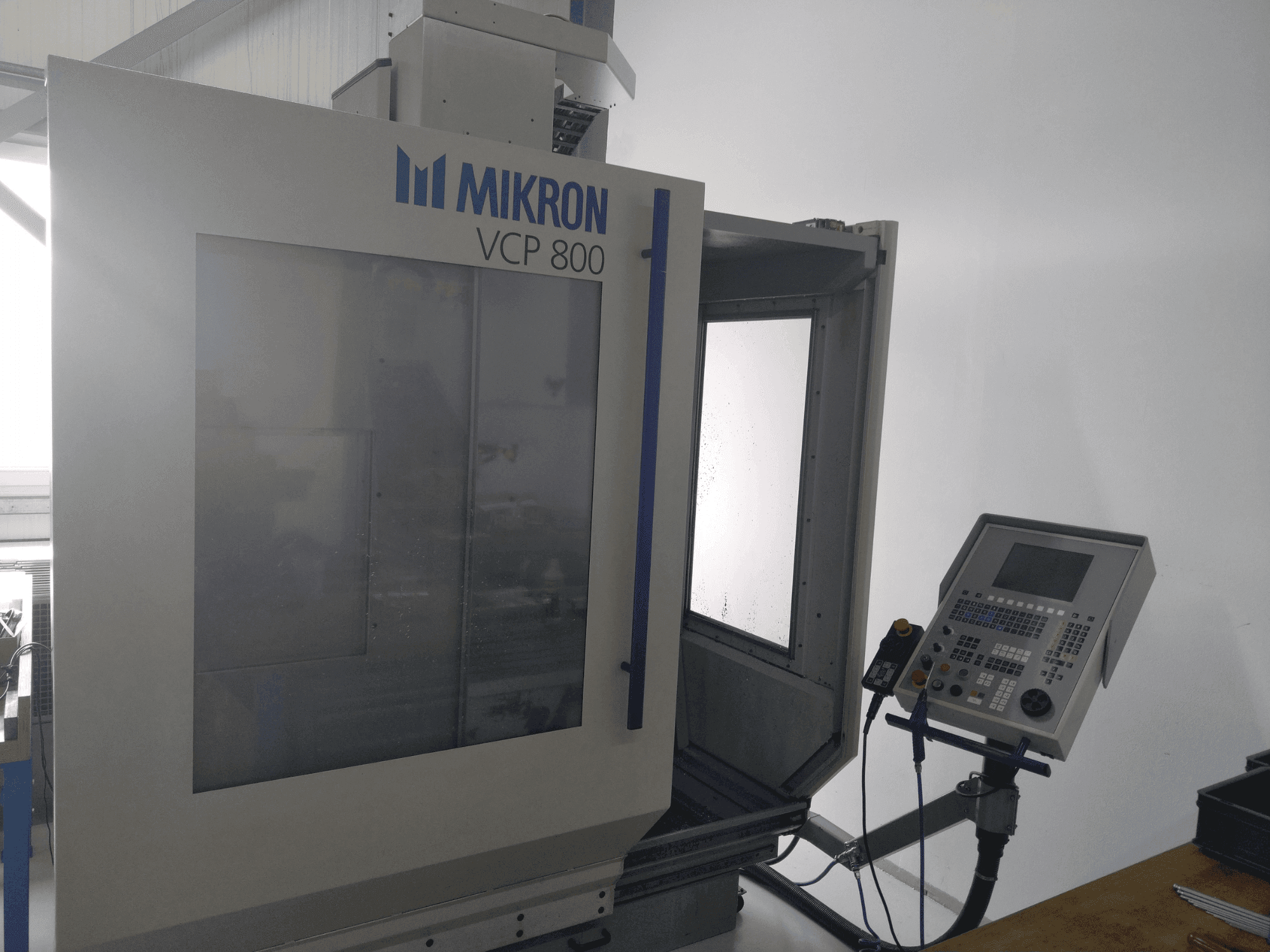

This 5-axis MIKRON VCP 800 was manufactured in 2001. A vertical machining centre, it offers advanced capabilities for detailed and complex machining tasks. Consider the opportunity to buy this MIKRON VCP 800 vertical machining centre. Contact us for more information about this machine.
Overview
- brand: MIKRON
- year: 2001
- MODEL: VCP 800
- production hours: 1518
- application type: Milling
- Location: Switzerland
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCP 800
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 430
Main drive
- Spindle speed range: 50 - 20000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 450 mm
Additional Equipment
- - Lehmann 4/5axle with Erowa ITS148
Additional Information
- Technical Machine Benefits:
- - Power output: 16 kw at 44% duty cycle, 12 kw at 100% duty cycle
- - Tool holder: iso-b-40 / din 69871
- - Pull stud: din 69872 form b (without through hole)
- - Max. Tool projection: up to 1000 rpm: 350 mm, up to 4000 rpm: 250 mm, up to 20000 rpm: 200 mm
- - 30 tools
- - No internal cooling supply
- - No chip conveyor
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
