➤ Used Monforts TNC 300 SingleTurn For Sale | gindumac.com

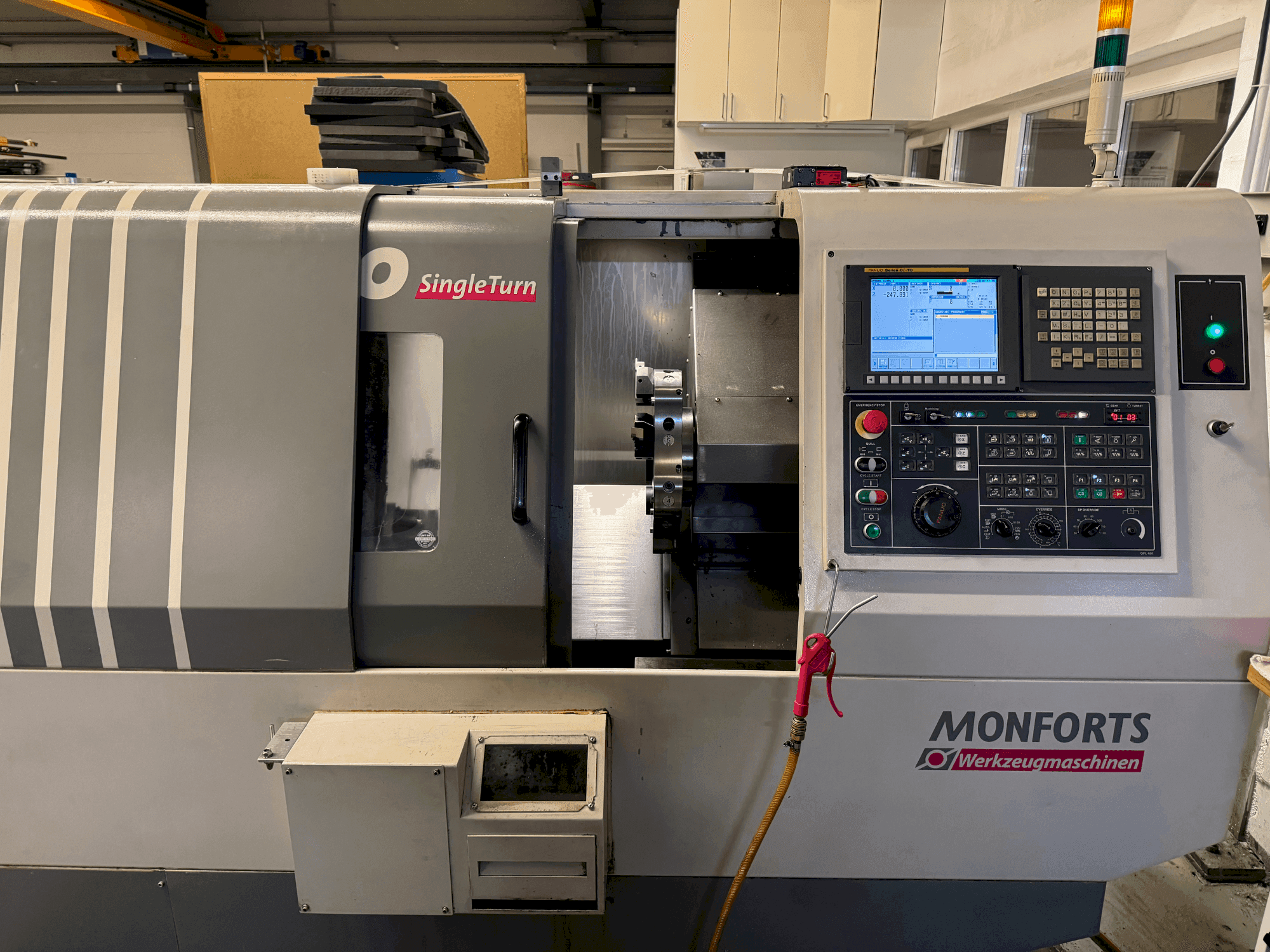

This Monforts TNC 300 SingleTurn was manufactured in 2009. A robust horizontal turning machine featuring a Fanuc 0i-TC control system, 10 tool stations, and a three-jaw power chuck Kitagawa 8''. It includes a hydraulic hollow clamping device and a chip conveyor. Ideal for high-quality turning capabilities. Contact us for more information about this machine.

Overview

brand: Monforts
year: 2009
MODEL: TNC 300 SingleTurn
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Monforts TNC 300 SingleTurn

General Data

Measurements width: 2230 mm
Measurements depth: 2780 mm
Machine weight: 3120 kg

Control Unit

Brand: FANUC
Model: 0i-TC

Main drive

Spindle speed range: 40 to 4500 min-1 1/MIN

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Three-jaw power chuck Kitagawa 8'' (200 mm)
Hydraulic hollow clamping device (diameter 52 mm)
Chip conveyor chain hinge belt
Coolant system: 10 bar
One hadwheel
Collet chuck CRL-42-A6 (diameter 42 mm)
Automatic tool measurement
Short bar loader for bar length: 1200 mm

Machine Benefits

Technical Machine Benefits

Max. Torque: 124 nm
Rapid traverse x-axis: 30 m/min / rapid traverse z-axis: 30 m/min
Position accuracy: ±0. 005 mm / repeatability: ±0. 002 mm
Rotating diameter over bed: 480 mm / rotating diameter over cross slide: 320 mm / turning length: 500 mm
Number of tool stations: 10 / vdi size: 30 / shank diameter: 30 mm
Pinole diameter: 65 mm / quill stroke: 50 mm / tailstock travel: 425 mm / quill inner taper: mk4
Quill inner taper: mk4 / max. Material passage: 52 mm
Spindle diameter in front bearing: 100 mm / spindle height: 900 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
