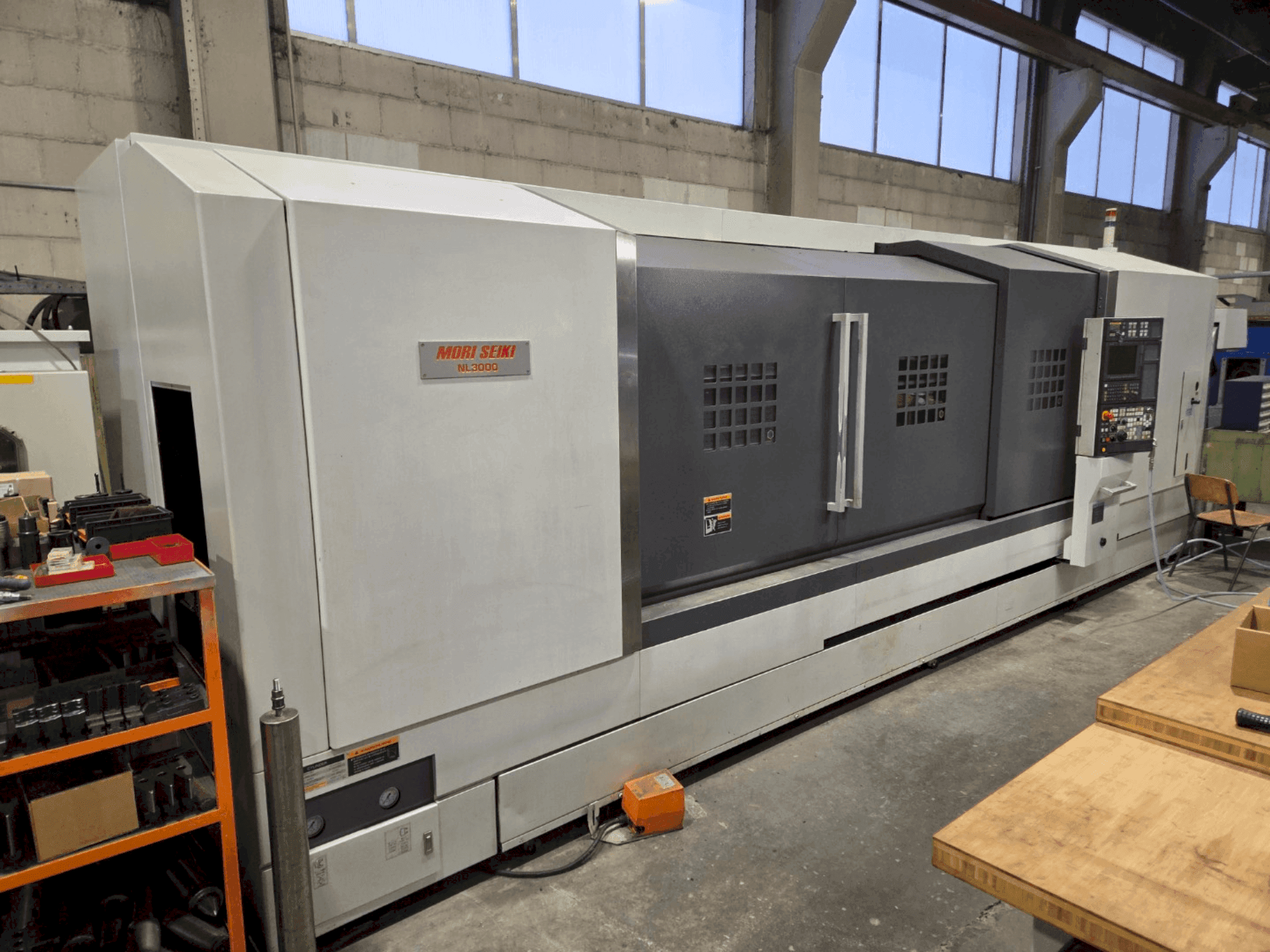

Front view of MORI SEIKI MORI SEIKI NL3000/3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI MORI SEIKI NL3000/3000

Photo Gallery

MORI SEIKI - MORI SEIKI NL3000/3000BE-TUR-MOR-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI MORI SEIKI NL3000/3000 | Turning

This MORI SEIKI NL3000/3000 was manufactured in 2008. A robust horizontal turning machine, it features a maximum turning length of 3123 mm and a bar work capacity of 90 mm. The spindle supports a speed range up to 3000 min⁻¹ with a through-spindle hole diameter of 105 mm. Ideal for precision large-scale work, it includes a 10 position turret and a rapid traverse rate of 30000 mm/min. Contact us for more information about this machine.

Overview

brand: MORI SEIKI
year: 2008
MODEL: MORI SEIKI NL3000/3000
application type: Turning
Location: Belgium
machine type: Horizontal Turning Machine
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI MORI SEIKI NL3000/3000

Control Unit

Brand: MITSUBISHI
Model: MSX-850 III

Main drive

Spindle speed range: 3000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 210 + 70 mm
X-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 3170 mm
Z-AXIS Rapid traverse: 30000 mm/min

Workpiece

Workpiece drm over bed: 995 mm
Workpiece drm over support: 825 mm

Additional Information

Additional equipment

Oil Circulation Pump Motor: Compressor: 0.5 kW / Circulation Pump: 0.4 kW

Machine Benefits

Technical Machine Benefits

Interference with front cover: 963 mm
Max. Turning diameter: 420 mm
Standard turning diameter: 310 mm
Max. Turning length: 3123 mm
Bar work capacity: 90 mm
Number of spindle speed ranges: 2 step
Spindle nose type: jis a=8
Through-spindle hole diameter: 105 mm
Min. Spindle indexing angle: 0. 001°
Spindle bearing inner diameter: 160 mm

Extra Information

Chuck 12" Integral Chuck & Hollow Chuck Turret Turret Type: 10 Position Head Tool Mounting Capacity: 10 Tools Radial Angled Tool Shank Section: 25 mm Diameter Boring Tool Shank Section: 50 mm Turret Rotary Tool Spindle Rotary Tool Spindle Rate: 6000 min⁻¹ Rotary Tool Machining Capacity: Drill: φ26 (φ1.02"), Tap: Max. M20 Feedrates Jog Feedrate: X, Z: 0 ~ 5000 mm/min Tail Stock Tailstock Center Height: 3160 mm Tailstock Spindle Diameter: 150 mm Tailstock Spindle Taper Hole: MT5 Tailstock Spindle Travel: 150 mm Media Hydraulic Pump Motor: 1.5 kW Lubricant Pump Motor: 0.02 kW Coolant Pump Motor: 0.52 kW Hydraulic Oil Tank Capacity: 10 L Lubricant Tank Capacity: 4 L Coolant Tank Capacity: 540 L Oil Temperature Control/Coolant Tank Capacity: 10 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
