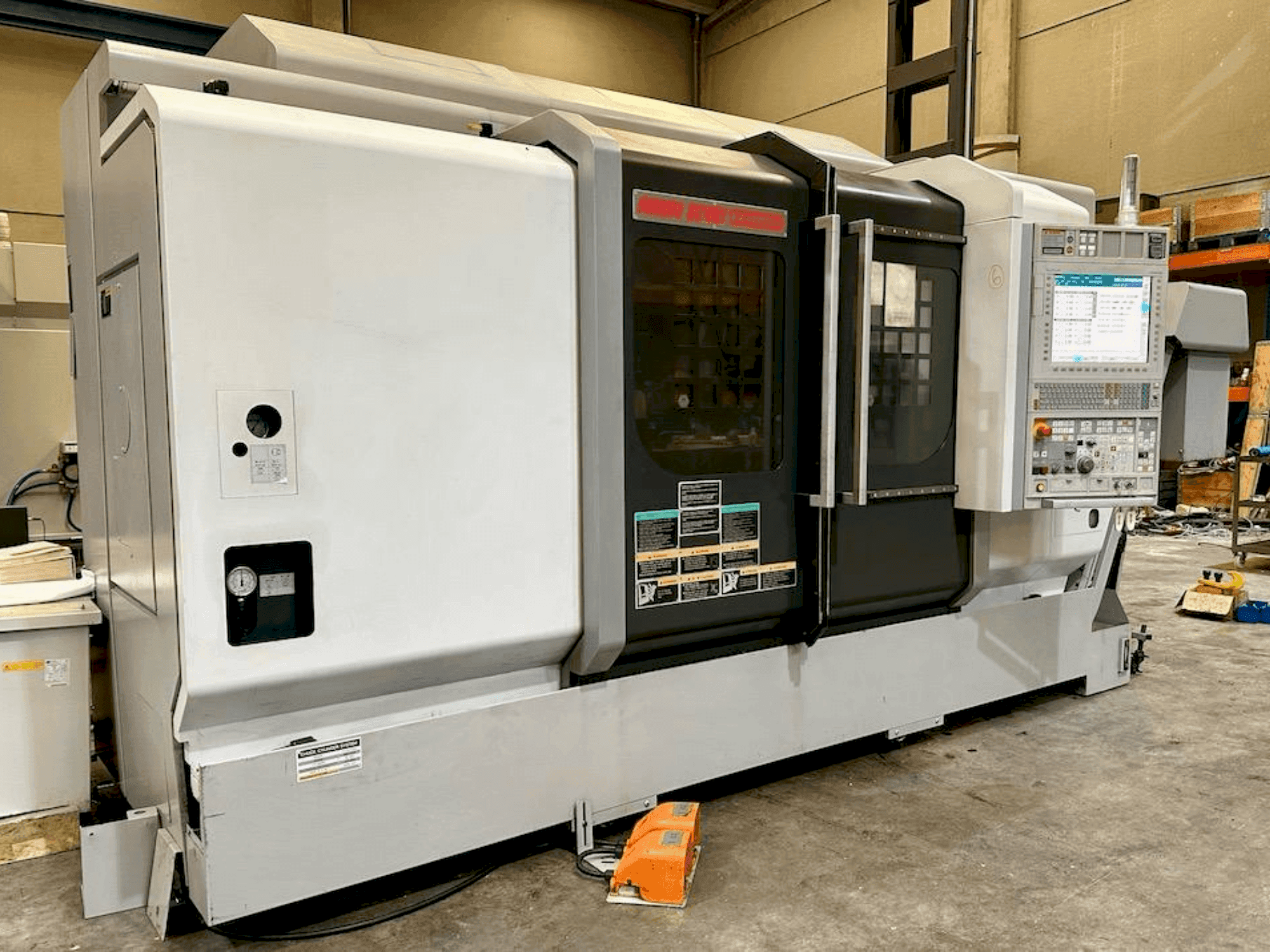

Front view of MORI SEIKI NZX 2500/1000Y  machine

Thank you for your visit

This machine was recently sold.

MORI SEIKI - NZX 2500/1000YES-TUR-MOR-2012-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis MORI SEIKI NZX 2500/1000Y horizontal turning machine was manufactured in 2012. It features dual servo turrets with 12 and 8 tool positions, a maximum turning diameter of 370 mm, and a swing over bed of 800 mm. The spindle supports up to 4000 rpm and a bar capacity of 80 mm. Ideal for complex machining tasks, consider the opportunity to buy this MORI SEIKI NZX 2500/1000Y horizontal turning machine. Contact us for more information about this machine.

Overview

  • brand: MORI SEIKI
  • year: 2012
  • MODEL: NZX 2500/1000Y
  • application type: Turning
  • Location: Spain
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: MITSUBISHI

Technical Information - MORI SEIKI NZX 2500/1000Y

General Data

  • Measurements width: 2279 mm
  • Measurements depth: 5100 mm
  • Measurements height: 2573 mm
  • Machine weight: 9100 Kg

Control Unit

  • Brand: MITSUBISHI
  • Model: M730BM

Main drive

  • Spindle speed range: 4000 rpm 1/MIN
  • Spindle motor power: 26/22 Kw
  • Number of axis: 5

Workpiece

  • Workpiece drm over bed: 800 mm

Turret

  • Number of turrets: 2

Tail Stock

  • Pinol diameter: 110 mm
  • Pinol tool taper: MT5

Tools

  • Number of stations: 12

    Additional Equipment

    • - Interface Bar-feeder
    • - High pressure pump
    • - Tool presetter
    • - Steady rest: SLU-X-2_ZS (from 8 mm to 101 mm)
    • - Documentation

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle nose: asa 8” a2
        • - Bar capacity: 80 mm
        • - Collet type: hainbuch spannitop
        • - Tooling size: 25 mm / 50 mm
        • - Live tool motor: 5. 5 kw // live tool speed: 6,000 rpm
        • - Tailstock travel: 1000 mm // tailstock spindle travel: 150 mm
        • - Max. Turning diameter:turret 1: 370 mm, turret 2: 260 mm // max. Turning length: 1000 mm
        • - X axis travel: turret 1: 225 mm (<185 + 40) turret 2: 170 mm (<130 + 40)
        • - Y axis travel: turret 1: +70 - 50 mm
        • - Z axis travel: turret 1: 1050 mm turret 2: 1050 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
