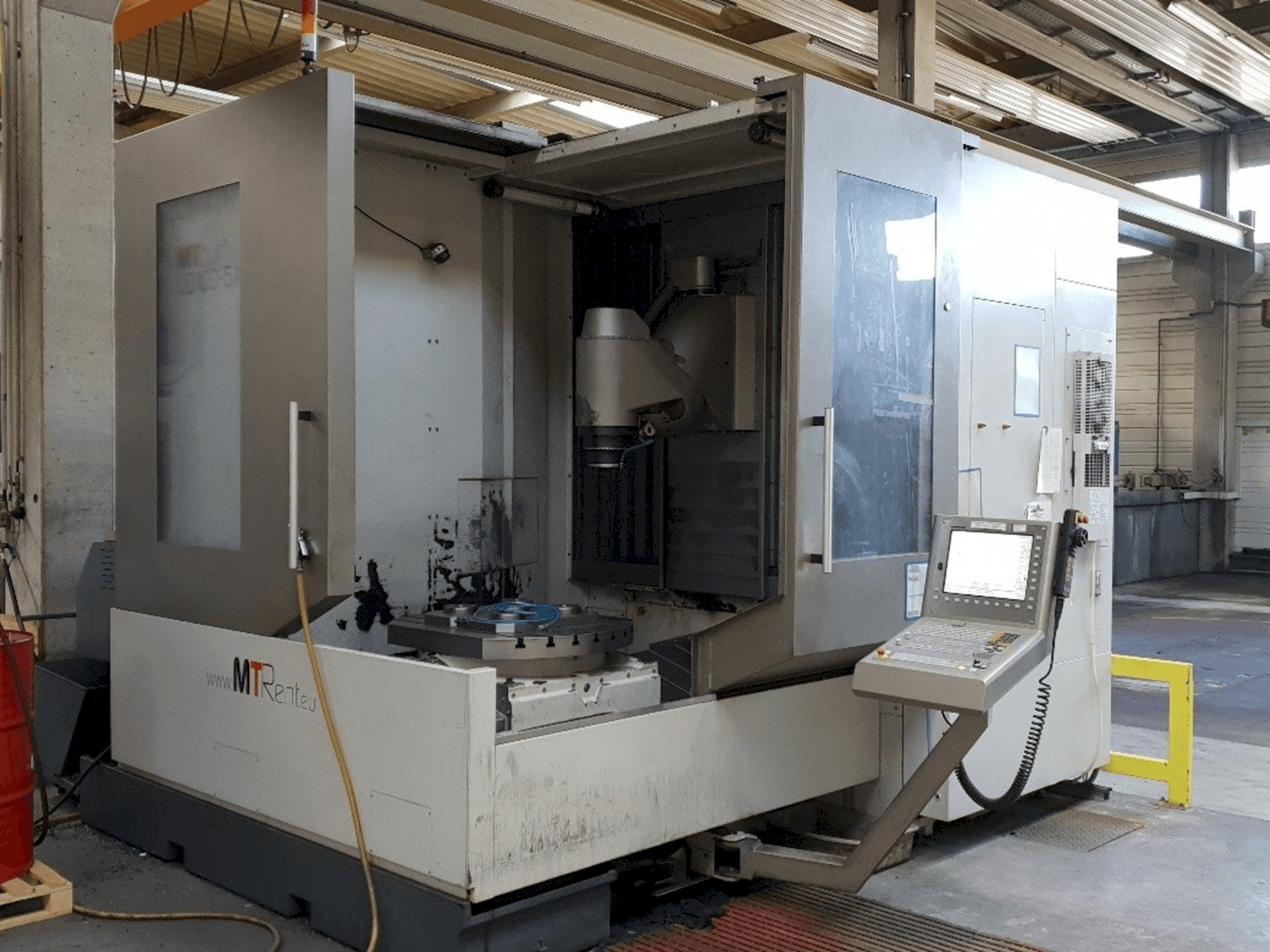

Front view of MTcut UD100H-5ASi  machine

MTcut UD100H-5ASi

MTcut - UD100H-5ASi

2014

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This MTcut UD100H-5ASi Vertical Machining Center was manufactured in the year 2014 and has 54811 production hours, of which 9658 are spindle hours. It is equipped with Heidenhain iTnc 530 SmarT.NC control unit. The machine has a spindle speed of 18000 rpm.

Overview

  • brand: MTcut
  • year: 2014
  • MODEL: UD100H-5ASi
  • production hours: 54811
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-MTC-2014-00001

Technical Information

General Data

  • Machine weight: 15000 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTnc 530 SmarT.NC

Main drive

  • Spindle speed range: 18000 1/MIN

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 700 mm
  • B-AXIS Movement: 0,001° x 180° MM
  • C-AXIS Movement: 0,001° x 360° MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Integrated round table: 360° stepless and with hydraulic clamping, Ø 1000 x 800 mm
      • - Table spindle nose: 50 - 750 mm
      • - Table: Ø1000 mm
      • - Max torque: 162 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
