Muratec MW120

Photo Gallery

Muratec - MW120ES-TUR-MUR-2008-00007

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Muratec MW120

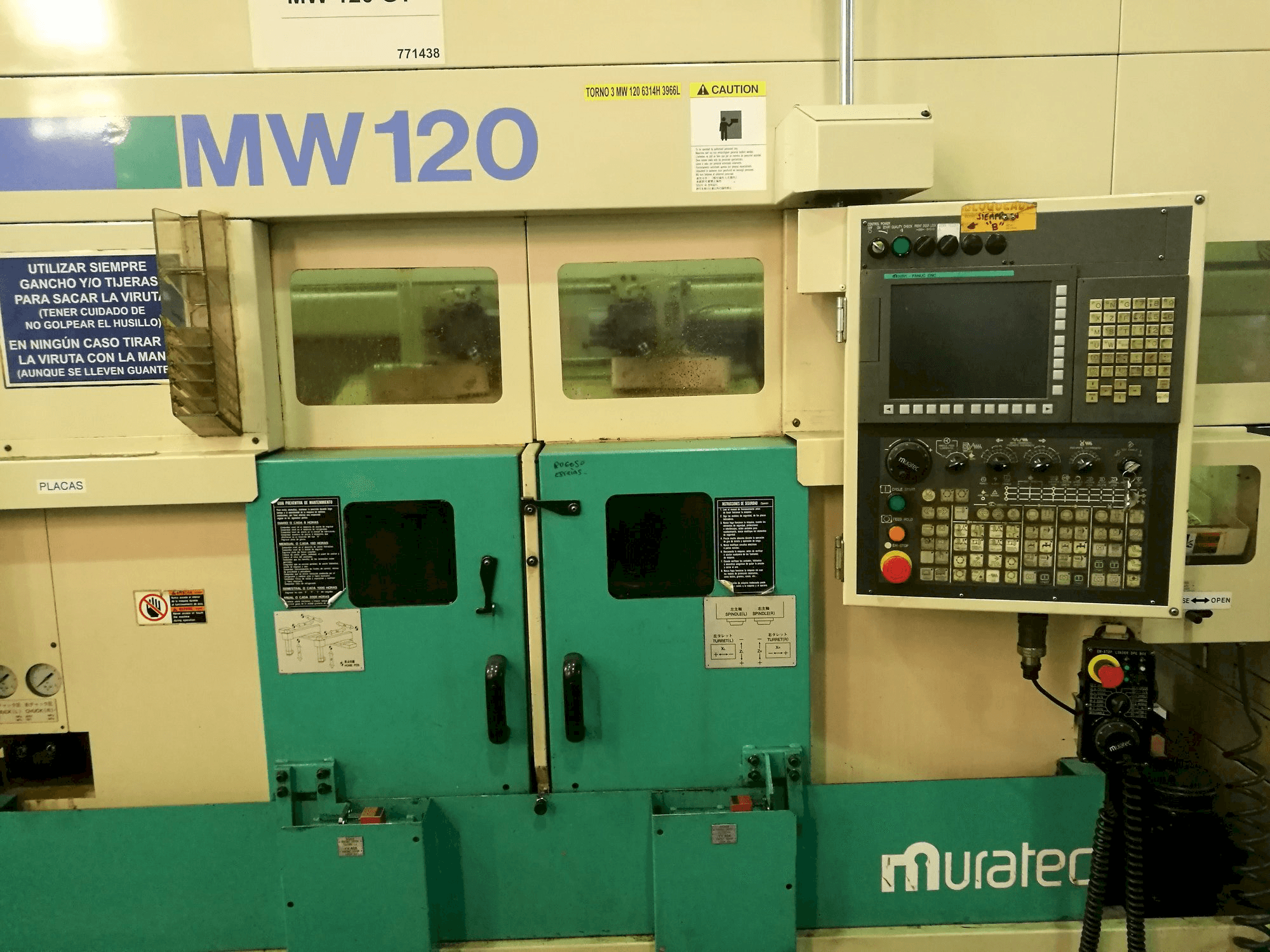

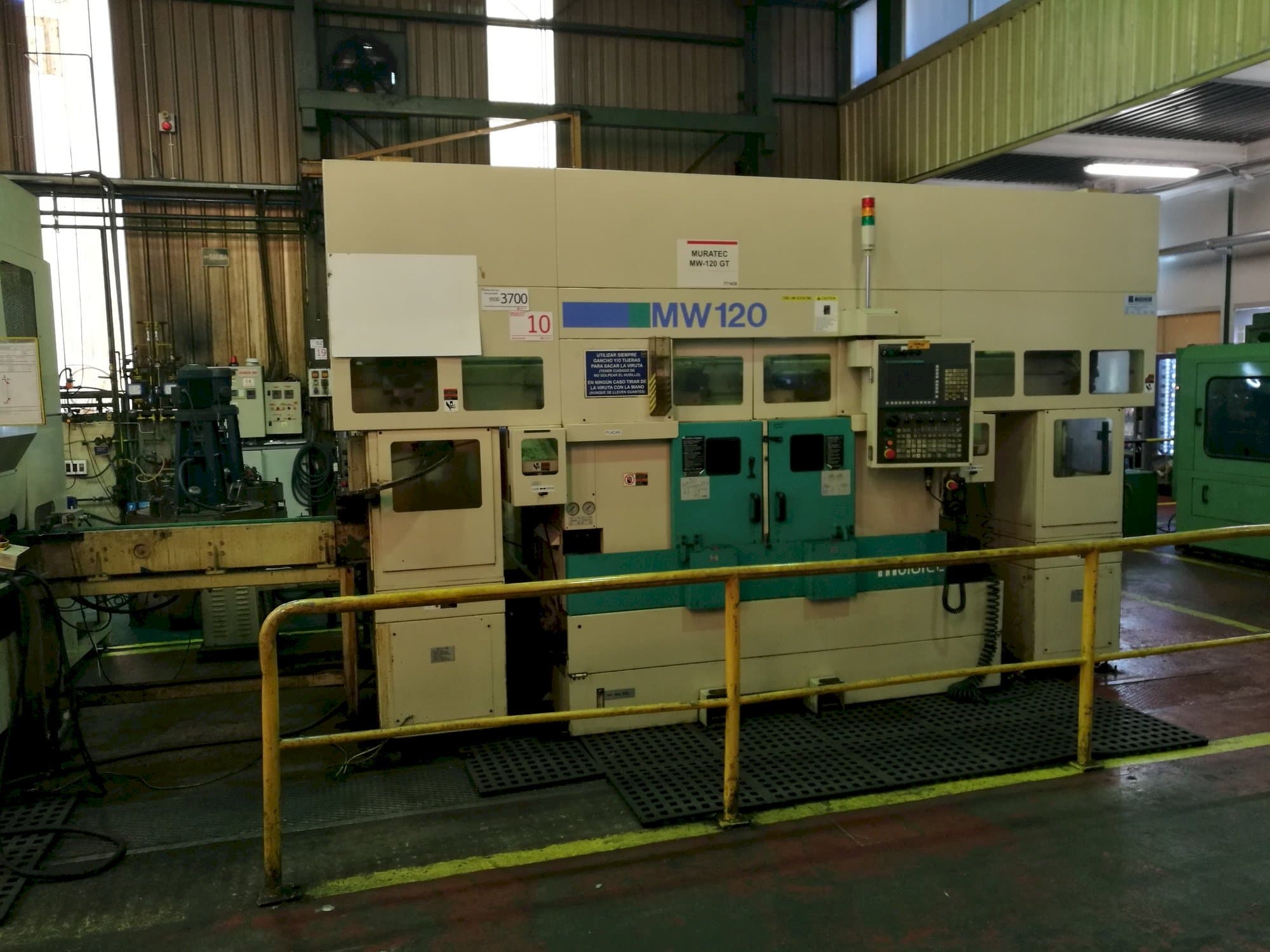

This Muratec MW120 lathe machine was made in the year 2008 in Japan. It has a production record of 3000 working hours. This machine is equipped with a FANUC FS31i-Model A series control unit. It operates with a spindle speed range 45-4500 rpm. This machine is in perfect conditions.

Overview

brand: Muratec
year: 2008
MODEL: MW120
production hours: 3000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Muratec MW120

General Data

Measurements width: 1760 mm
Measurements depth: 1900 mm
Measurements height: 25000 mm
Machine weight: 4400 Kg

Control Unit

Model: FS31i-Model A series
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 45 - 4500 1/MIN

Movement

X-AXIS Movement: 130 mm
Z-AXIS Movement: 145 mm

Workpiece

Workpiece drm: 120/230 mm
Workpiece weight: 3 Kg

Turret

Number of turrets: 2

Tools

Slots in storage: 8
Max tool diameter: 40 mm

Media

Main electronic connection: 200 V / 50 Hz
Power consumption: 16 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Astm-a105

Machine Benefits

Qualitative Machine Benefits:
- - Very little working hours
- - Machine in perfect conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
