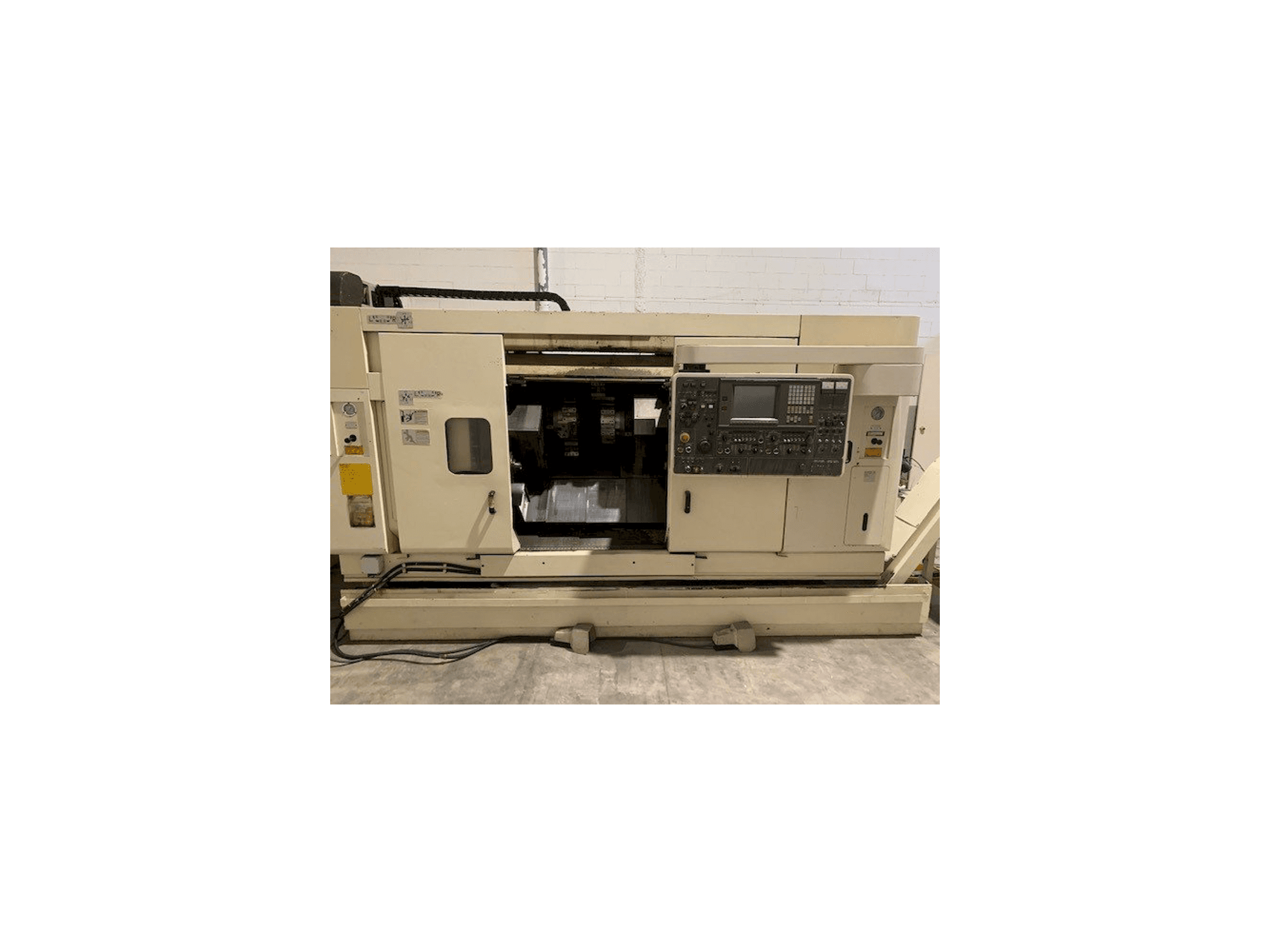

Front view of NAKAMURA-TOME TW-20 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

NAKAMURA-TOME TW-20

Photo Gallery

NAKAMURA-TOME - TW-20ES-TUR-NAK-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ NAKAMURA-TOME TW-20 Lathe - Used

This NAKAMURA-TOME TW-20 lathe was made in the year 2003 in Japan. It is equipped with a Nakamura Tome LUCK-BEI control unit and has 2 axis. The machine has 2 spindles and a max. turning diameter of 270 mm.

Overview

brand: NAKAMURA-TOME
year: 2003
MODEL: TW-20
application type: Turning
Location: Spain
machine type: Turn-Mill Centre

Technical Information - NAKAMURA-TOME TW-20

General Data

Measurements width: 3645 mm
Measurements depth: 1875 mm
Measurements height: 1970 mm
Machine weight: 6000 kg

Control Unit

Model: LUCK-BEI

Main drive

Number of spindles: 2
Number of axis: 2

Workpiece

Workpiece x: 500 mm
Workpiece z: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bar size 51 mm
- - Chuck diameter 215 mm
- - Swing over slide cover 270 mm
- - Standard turning diameter 215 mm
- - Max. Turning diameter 270 mm
- - Max. Turning length 192 mm
Qualitative Machine Benefits:
- - Robot without console

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
