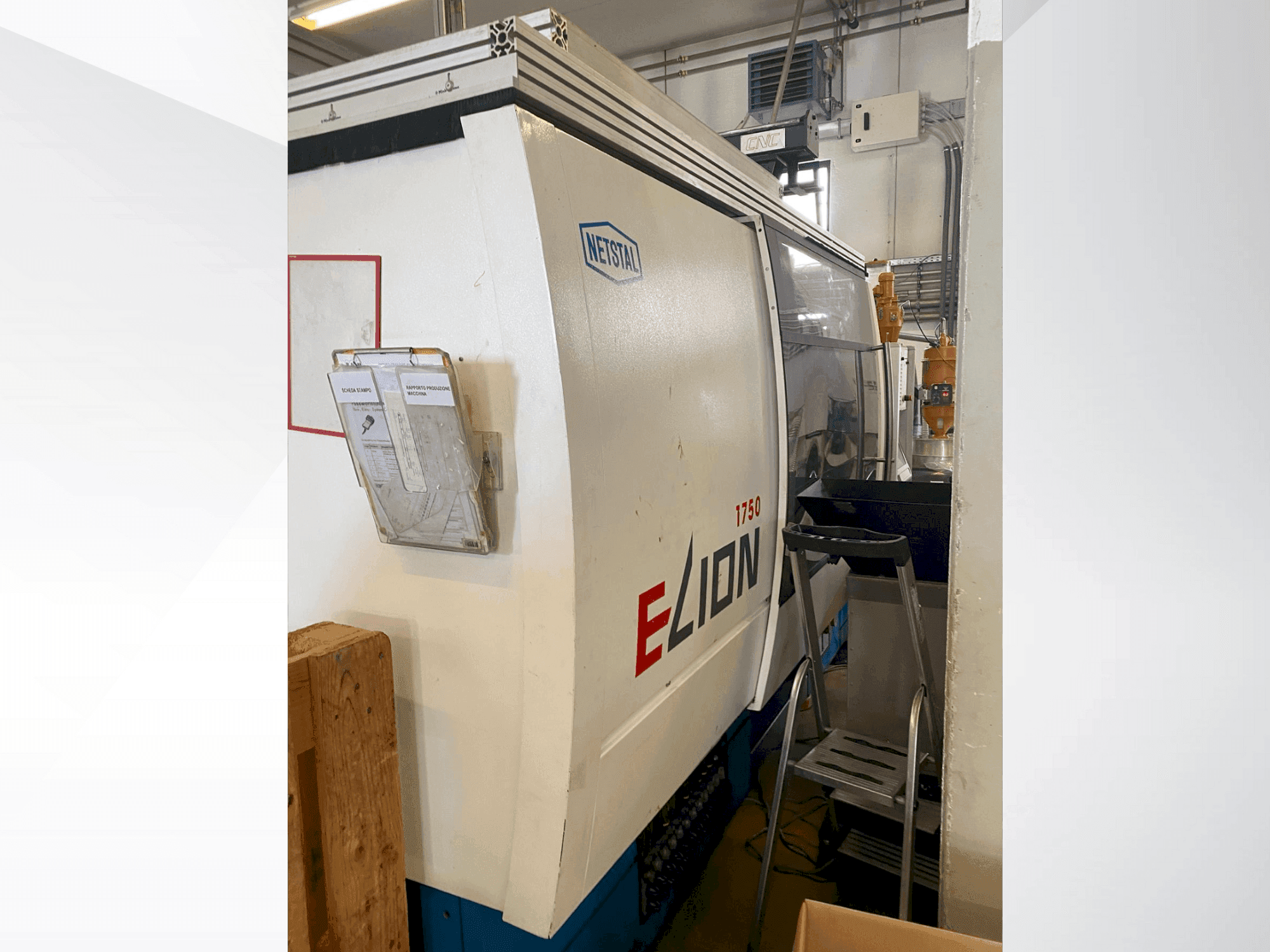

This hydraulic injection moulding machine was manufactured in 2007. The Netstal ELION 1750-840PS features a clamping force of 1750 KN and a screw diameter of 50 mm, capable of a maximum shot volume of 392.7 cm³. It supports a maximum mold weight of 2070 kg and operates with an injection pressure of 2138 bar. A great opportunity to buy this Netstal ELION 1750-840PS hydraulic injection moulding machine. For more information about this machine, please reach out to us.
Overview
- brand: Netstal
- year: 2007
- MODEL: ELION 1750-840PS
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Netstal ELION 1750-840PS
General Data
- Measurements width: 1931 mm
- Measurements depth: 6231 mm
- Measurements height: 2042 mm
- Machine weight: 13000 kg
Injection Unit
- Screw diameter: 50 mm
- Shot weight: 376.7 g (PS)
- Injection pressure: 2138 bar
- Screw speed: 530 RP
Clamping unit
- Clamping force: 1750 kN
- Opening stroke: 450 mm
- Distance between bars: 510 mm
- Mould height min: 300 – 600 mm
- Mould height max: 500 – 800 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 50 kN
Additional Equipment
- - Core pull: 0 units
Additional Information
- Technical Machine Benefits:
- - Max metering stroke: 200 m
- - Max shot volume: 392. 7 cm³
- - Standard injection flow rate: 490. 9 cm³/s // power injection flow rate: 883. 6 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s
- - Max screw speed "force": 320 rpm // max screw speed "master": 530 rpm
- - Max torque "force": 1500 nm // max torque "speed": 900 nm // max torque "master": 1500 nm
- - Plasticizing rate (ps): 48 g/s
- - Heating capacity: 30. 3 kw
- - Number of heating zones: 6
- - Opening force: 1750 kn
- Qualitative Machine Benefits:
- - High injection pressure: 2138 bar
- - High injection flow rate: 490. 9 cm³/s (standard), 883. 6 cm³/s (power)
- - Dry cycle stroke: 1.4 - 357 seconds per mm Nozzle contact force: 25 / 50 kN Nozzle retraction stroke: 510 mm Max mold weight: 2070 kg Max mold weight on moving platen: 1242 kg
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
