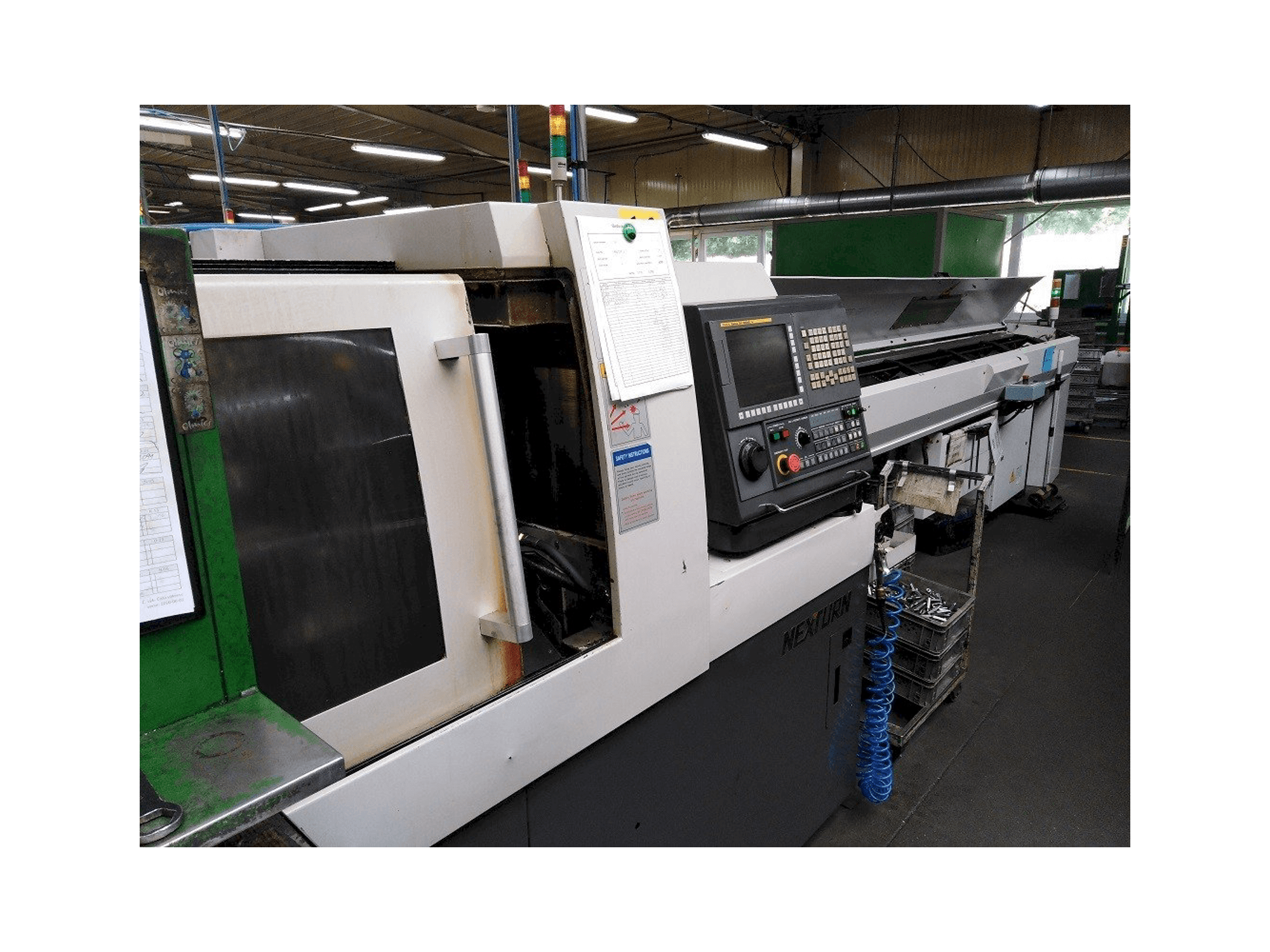

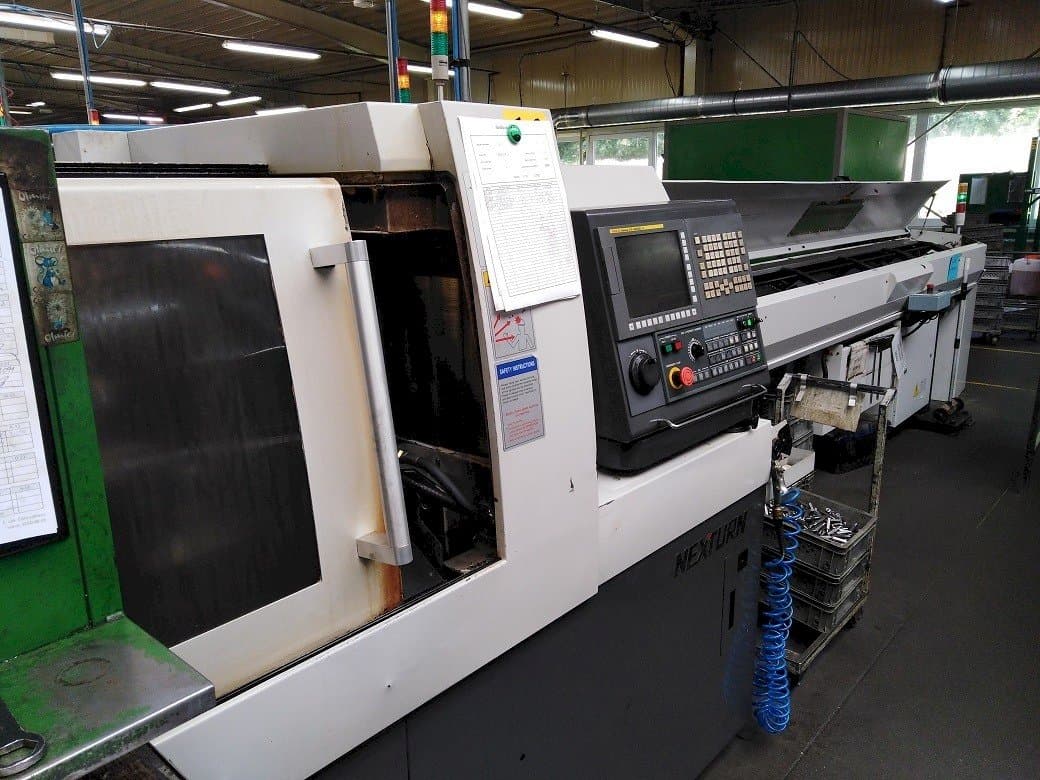

Nexturn SA-20E Lathe

This Nexturn SA-20E Lathe was made in South Korea in 2012. It is equipped with a Fanuc Series 18i-TB control unit. This 7 axis machine operate with a spindle speed up to 8000 rpm. It comes with a machine manual. Good condition, regularly maintained.

Overview

brand: Nexturn
year: 2012
MODEL: SA-20E
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Nexturn SA-20E

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Depth: 1375 mm
Machine Height: 1670 mm
Machine Weight: 3200 kg

Movement

Number of Axes: 7

Technical Specification

Spindle Power: 2.2 kW
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Good condition, regularly maintained

Technical Machine Benefits

Maximum turning bar diameter: 20 mm
Maximum turning bar length: 210 mm
7 controlled axis - x1, z1, y, x2, z2, c1, c2
Subspindle power: 1. 5 - 2. 2 kw
Cross-spindle power: 0. 55 - 1. 1 kw
Cross drill/milling unit: 0. 55 - 1. 1 kw
Work feedrate: 6000 mm/min
Rapid traverse rate: 32 mt/min
Max. Drilling/tapping main dia. : 10/m8
Max. Drilling/tapping cross & sub dia. : 8/m6

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
