ONA - NX3ES-EDM-ONA-2011-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ONA NX3 Erosion Machine

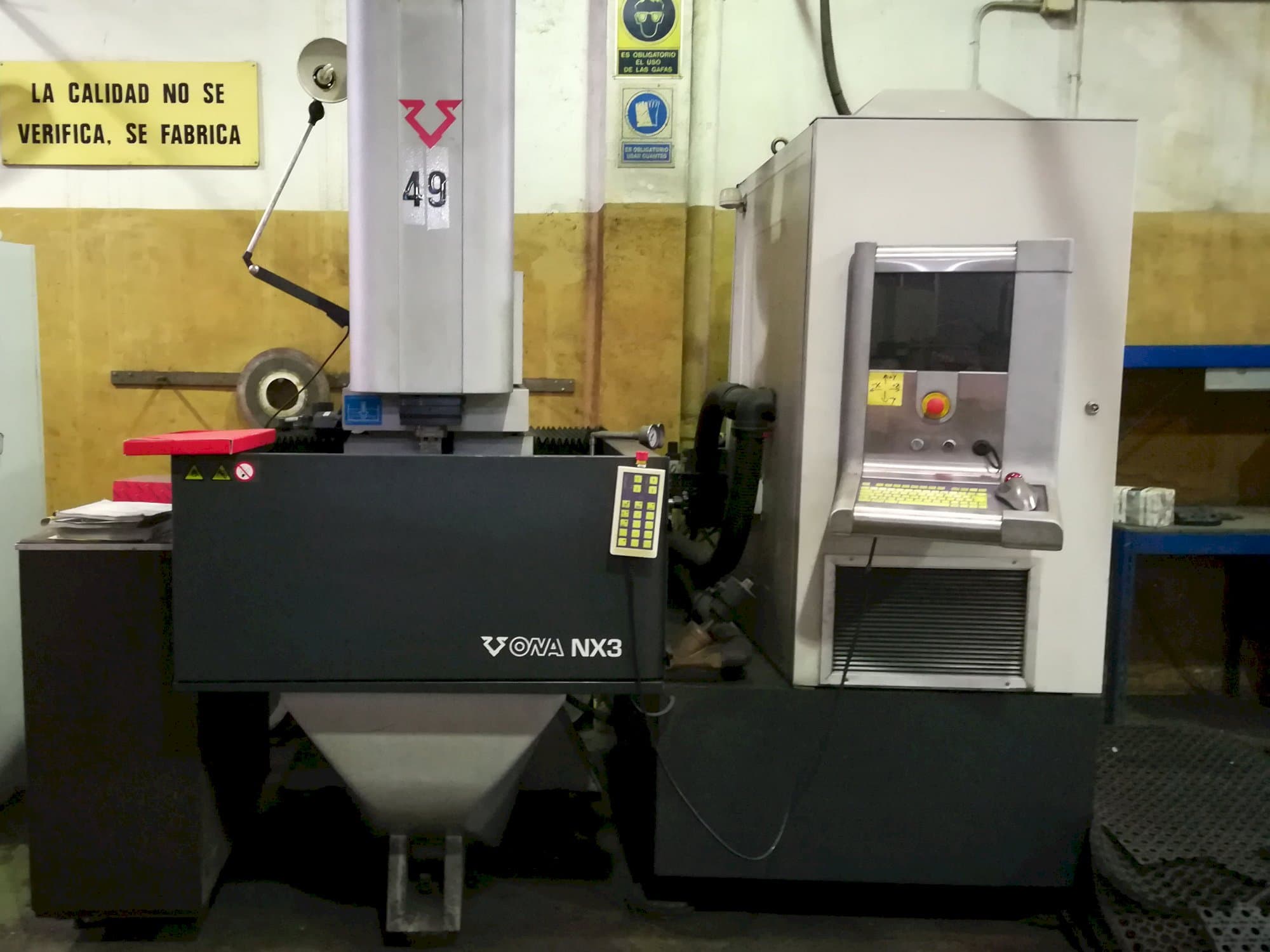

This ONA NX3 Erosion Machine was built in 2011 in Spain and counts a total of 4718 production hours. Operated through an ONA Series NX Control unit, this model has mainly worked with steel during the past. Additional tools and collets are included upon request.
Overview
- brand: ONA
- year: 2011
- MODEL: NX3
- production hours: 4718
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - ONA NX3
General Data
- Measurements width: 2190 mm
- Measurements depth: 1880 mm
- Measurements height: 2360 mm
- Machine weight: 3000 kg
Control Unit
- Model: Series NX
- CNC main language: Spanish
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Working current: 14.6 A
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 300 mm
- C-AXIS Movement: 360° MM
Workpiece
- Workpiece z: 220 mm
- Workpiece weight: 800 kg
Table
- Outer length: 550 mm
- Outer width: 400 mm
Media
- Main electronic connection: 380 V
- Power consumption: 10.7 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
